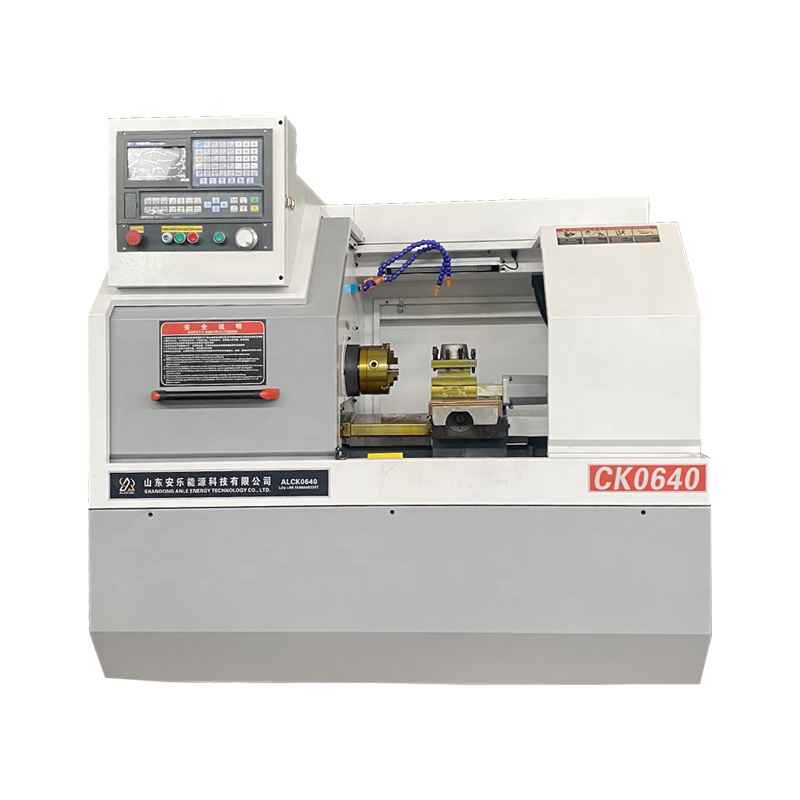

ALCK0640 CNC lathe machining thread

ALCK0640 CNC lathe machining thread



product description:

The mini lathe milling machine is a machine tool for metal processing. It can be used to make many different shapes of metal. The main function of a lathe is to create 3-dimensional shapes by cutting material on a rotating workpiece. A CNC lathe is a CNC machining center used to produce cylindrical parts with complex shapes. A CNC lathe is basically a machine that turns raw material into the desired shape and radius. It does this by using programs created with CAD or CAM software. The lathe then cuts the metal precisely to the desired gauge. The ability of CNC lathes to mill (cut) materials with incredible precision and ensure quality, combined with their versatility, make them an invaluable tool for any manufacturing operation.





Product Video:

Item	Unit	Parameter
Max swing over bed		ALCK0640
	mm	Φ250
Maximum swing over slide	mm	Φ120
Spindle hole diameter	mm	Φ48
With hollow chuck pull rod through hole	mm	Φ40
Spindle speed limit	rpm	3000
Knife square size	mm	□20×20 (four stations)
X/Z direction fast moving speed	m/min	6/8
X stroke	mm	200(Optional 300/400mm）
Z stroke	mm	220
Main motor power	KW	3（Optional 4kw)
X axis repeat positioning accuracy	mm	0.01
Z axis repeat positioning accuracy	mm	0.01
Machine weight	Kg	800
Dimensions (length × width × height)	mm	1620×1340×1680mm

---

Product advantages:
CNC lathes are designed to change the current manual production lathes, also known as carbide tools. These lathes, called "CNC lathes," are controlled by machine tool paths and programmed by a popular language called CAD. Manufacturers of CNC lathes include Haas, Mazak, DMG Mori, Doosan and Johnfords, and their models come in a variety of sizes, types and functions, but all help automate and speed up the process of manual lathes. Our CNC control technology is the greatest strength of our CNC lathes, as the technology we develop offers our customers the greatest opportunity to increase profitability through increased productivity. With large memory, fast processors, and a variety of controls to minimize setup time, you'll benefit from controls that help you go from print to part faster. Our years of experience provide us with the knowledge to build rigid and reliable CNC lathes with the most powerful simplified, user-friendly control technology in the industry. Our experience also enables us to implement a unique business model in the machine tool industry, extending our global supply chain, manufacturing and distribution capabilities. This proven system benefits our customers as we are able to ship our CNC lathes with shorter lead times than most competitors. Furthermore, even in difficult economic cycles, we are able to continue our product development programs and targeted technology growth as our efficiencies foster financial stability.
