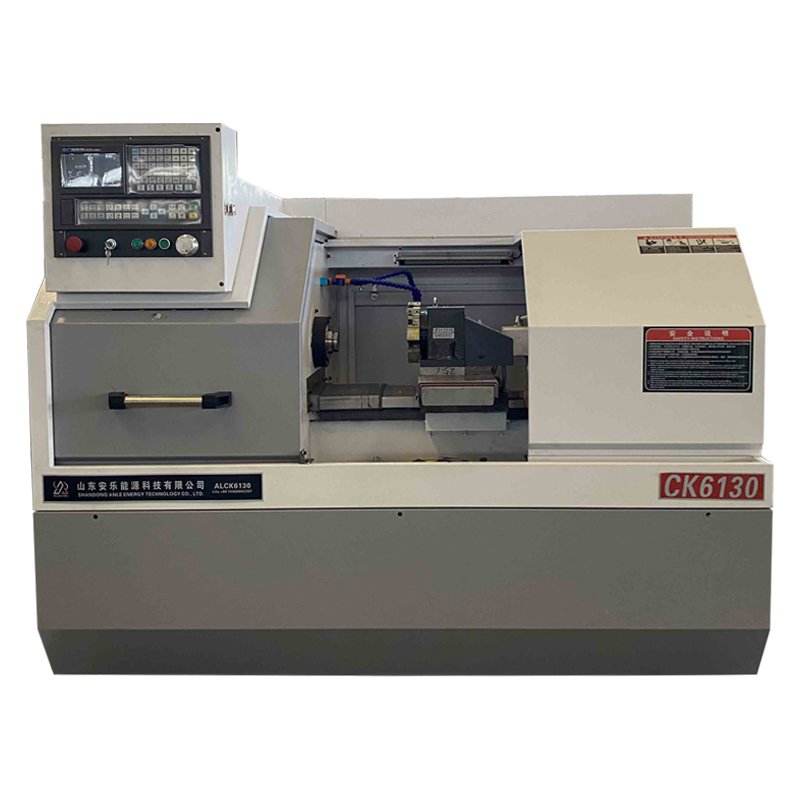

ALCK6130 CNC lathe machining thread
Makes it easier to get from your PC to the finished product. Therefore, we can supply machines ranging from simple flat bed 2-axis to multi-axis sub-spindle machines to manufacture complete finished parts.
Product Description
ALCK6130 CNC lathe machining thread
product description:
CNC lathes started as single-wire numerical control (NC) in the early 1970s and evolved into computer numerical control (CNC) in the 1980s and 1990s. Today, we are fully integrated with Computer Aided Design (CAD) and Computer Aided Manufacturing (CAM). Makes it easier to get from your PC to the finished product. Therefore, we can supply machines ranging from simple flat bed 2-axis to multi-axis sub-spindle machines to manufacture complete finished parts.
Product Video:
Product Specifications:
| Item | Unit | Parameter |
| ALCK6130 | ||
| Max swing over bed | mm | Φ300 |
| Maximum swing over slide | mm | Φ130 |
| Spindle hole diameter | mm | Φ48 |
| With hollow chuck pull rod through hole | mm | Φ40 |
| Spindle speed limit | rpm | 2200 |

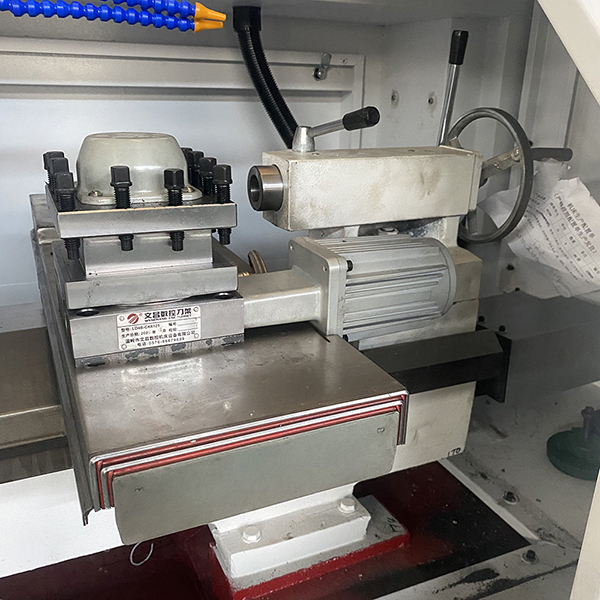

| Knife square size | mm | 20×20 (four stations) |
| X/Z direction fast moving speed | m/min | 6/8 |
| X stroke | mm | 280 |
| Z stroke | mm | 500 |
| Main motor power | KW | 3 |
| X axis repeat positioning accuracy | mm | 0.01 |
| Z axis repeat positioning accuracy | mm | 0.01 |
| Machine weight | Kg | 950 |
| Dimensions (length × width × height) | mm | 1600×1100×1650mm |
Product advantages:ALLES CNC is a World Class machine tool builder integrating electric, programmable automatic control, hydraulic control, and modern mechanical design, all integrated by multi-disciplinary and multi-category precision manufacturing into one machine from sand casting, to finished machine. ALLES CNC has developed independent and mature intellectual property rights on most of their machine designs and components.
Neway’s NL series of lathes provides functions for cutting an outer circle, inner hole, end face, taper surface, grooving, cutting and threading for the shaft and disc parts. The parts are generally made of cast iron, cast steel, forged steel, and non-ferrous metal.
