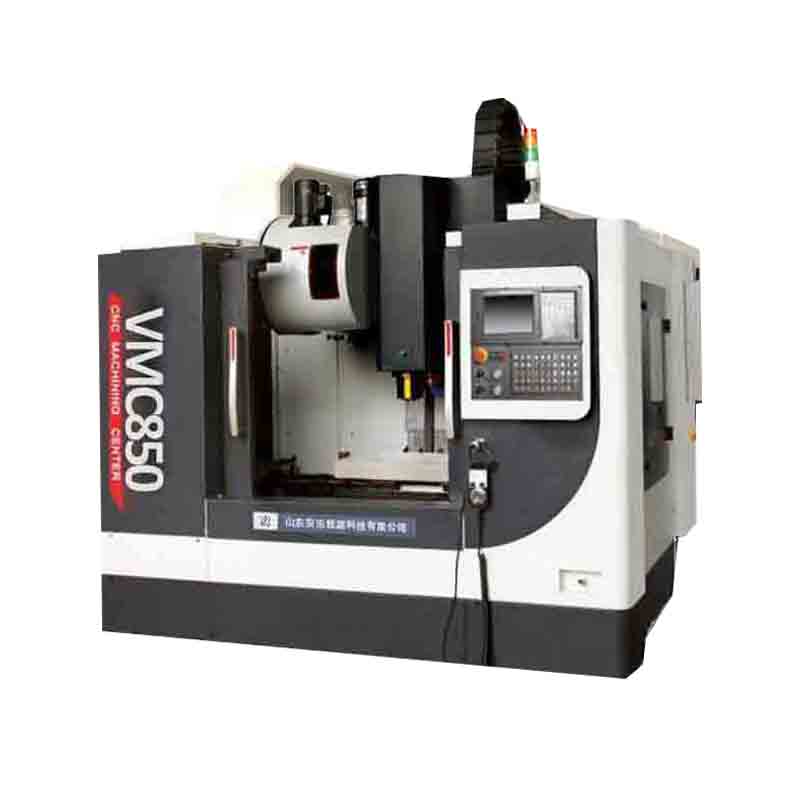

VMC850 3 axis cnc vertical milling machine

VMC850 3 axis cnc vertical milling machine

product description:

VMC850 cnc vertical milling machine is a semi-closed-loop vertical machining center with X, Y, Z three-axis servo direct connection control, which can realize one-time clamping of various discs, plates, shells, cams, molds and other complex parts, suitable for multi-variety, The production of small and medium batches can meet the processing of complex and high-precision parts.

Video:






Video:


Product Specifications:

Model	ALVMC850C
Travel
X axis	1000mm
Y axis	500mm
Z axis	500mm
Distance from spindle nose to table	100-600mm
Distance from spindle center to column	550mm
Worktable
Worktable size	1000×500mm
Max. loading capacity	400kg
T-slot	5×18×90mm
Spindle
Speed	8000rpm
Taper	BT40
Main motor power	5.5Kw
Feed
Rapid feed speed	20m/min
Cutting feed speed	10m/min
Positional accuracy	0.016mm
Repeated positional accuracy	0.006mm
X Y Z motor torque	10/10/15Nm
Machine
Weight	3800 Kg
Overall dimensions（L×W×H）	1900×2310×2300mm

Product advantages:

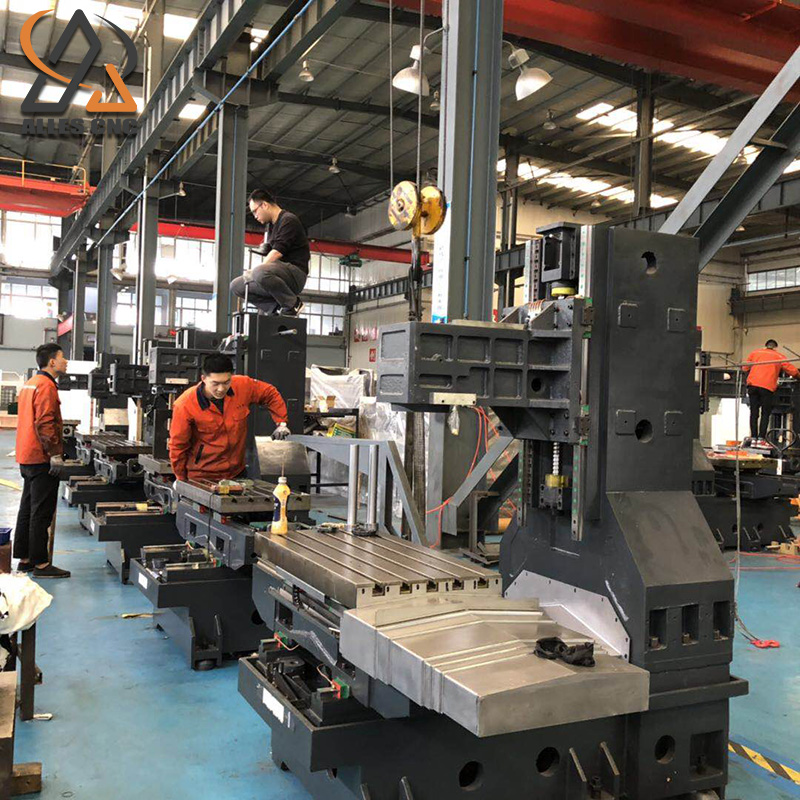

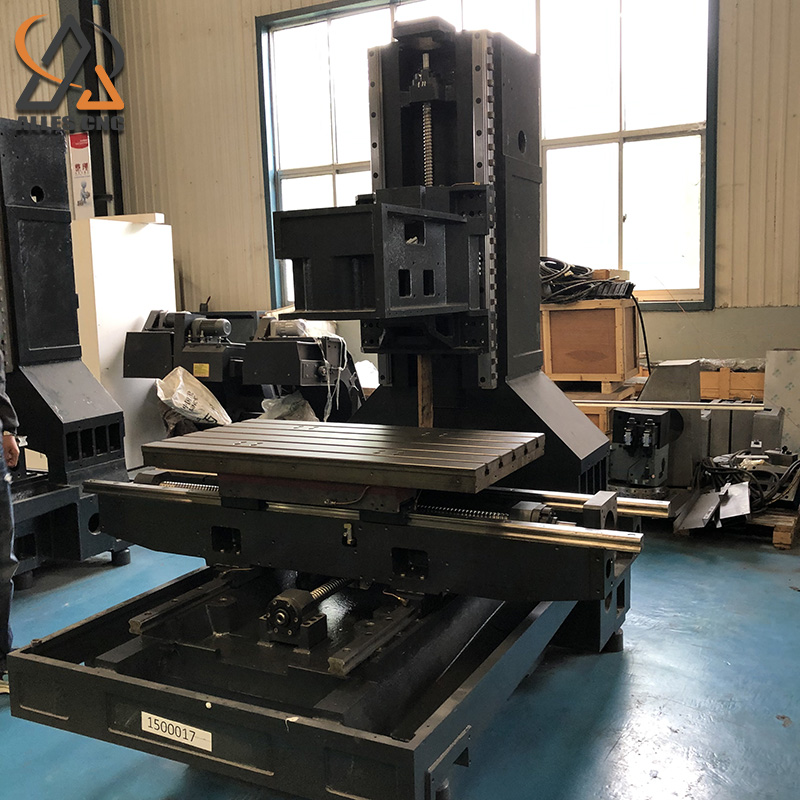

1. The main parts of the machine tool are made of resin sand castings, and the machine tool has good rigidity after multiple stress relief processes.

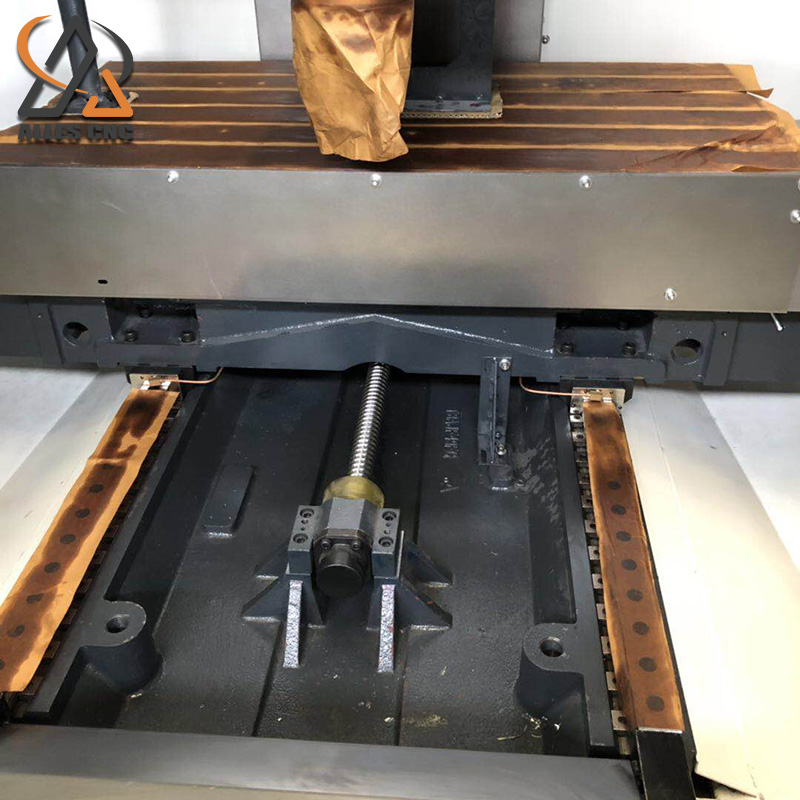

2. The guide rail is attached with a wear-resistant patch, which is finely ground by hand. With special guide seat design, the machine tool has strong load capacity and is suitable for high torque cutting.

3. The guide rail is high-frequency quenched and ground with high precision, so that the hardness, precision and stability of the machine tool are better.

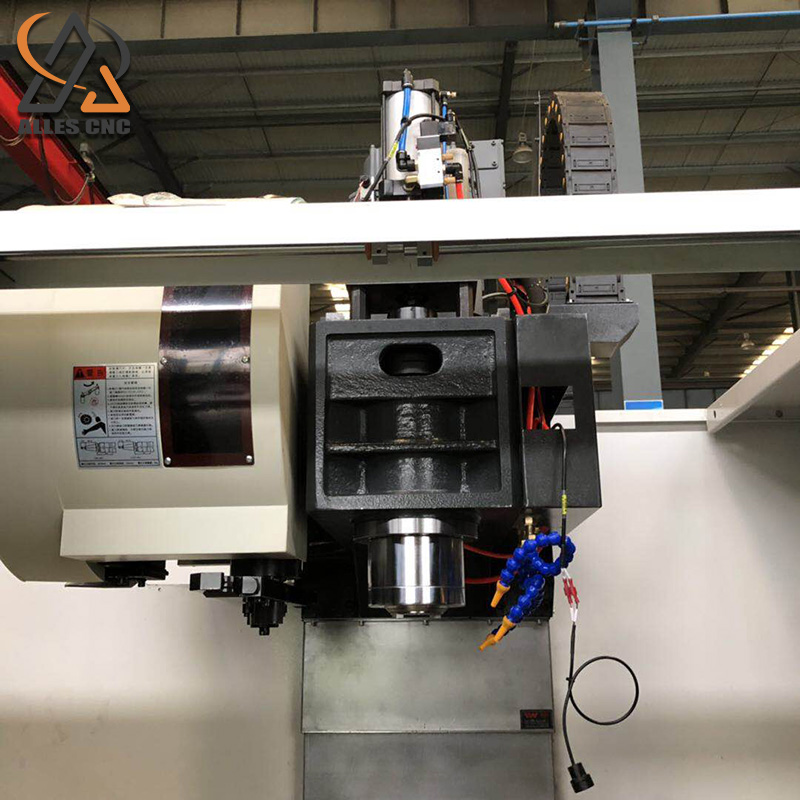

4. High-torque AC servo motor and quick tool change system are equipped with precision spindle bearings, which can carry out strong cutting and high-speed machining, and the overall efficiency is higher.
