VMC650 cnc milling machine 4 axis

The VMC650 3 axis mini cnc milling machine were built to the same durability and accuracy standards and upgraded with linear guide ways for increased production speeds. VMC650 cnc milling machine metal have Fanuc CNC Controllers and Fanuc servo motors for the best and most reliable machining.

Product Description

VMC650 cnc milling machine 4 axis

Product description:

VMC650 cnc milling machine vertical has a compact and reasonable internal structure, and has obvious advantages such as strong structural rigidity, high precision, stable operation, low failure rate and good reliability. VMC650 cnc vertical milling machine bed has the advantages of high strength and good wear resistance. The structure is designed by professional finite element analysis, with stronger rigidity and more stable structure.

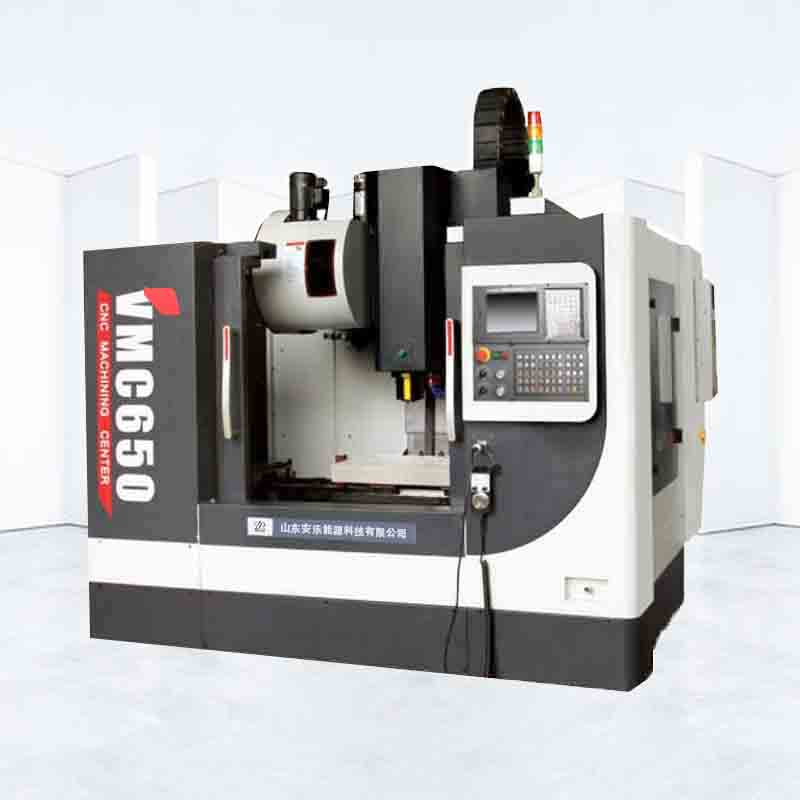

Vertical machining center VMC650

Video:

Product Specifications:

Model	ALVMC650C
Travel
X axis	600mm
Y axis	500mm
Z axis	500mm
Distance from spindle nose to table	100-600mm
Distance from spindle center to column	550mm
Worktable
Worktable size	800×500mm
Max. loading capacity	400kg
T-slot	5×18×90mm
Spindle
Speed	8000rpm
Taper	BT40
Main motor power	5.5Kw
Feed
Rapid feed speed	20m/min
Cutting feed speed	10m/min
Positional accuracy	0.016mm
Repeated positional accuracy	0.016mm
X Y Z motor torque	10/10/15Nm
Machine
Weight	3800kg
Overall dimensions (L×W×H)	1900×2310×2300mm

Product advantages:

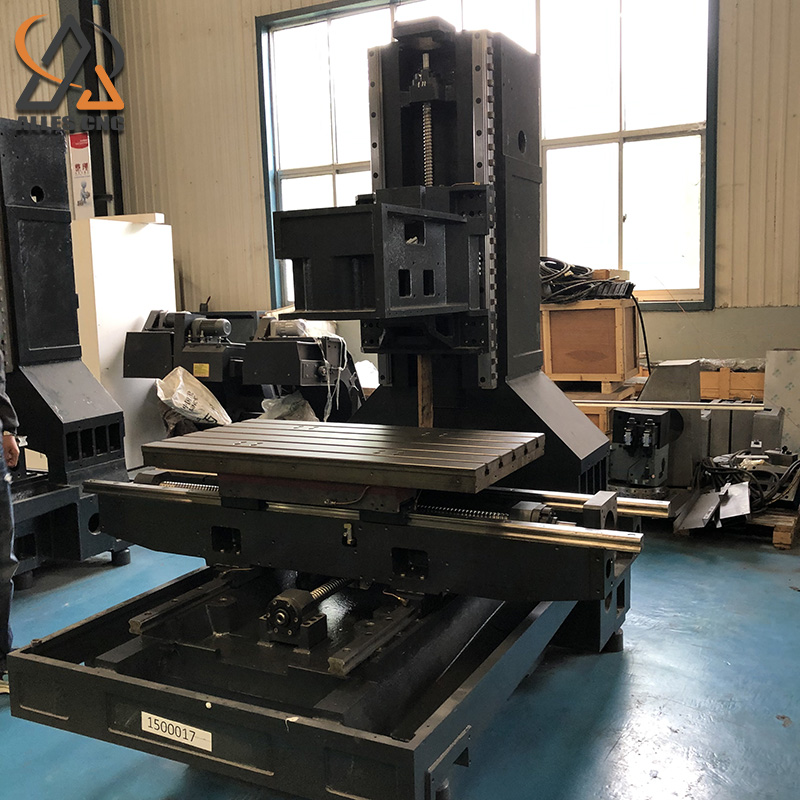

1. The worktable adopts a double-layer reinforced design, and the increase of the thickness of the worktable effectively hides the interference of the installation of the linear guide slide to the worktable, and further enhances the rigidity.

2. The X/Y/Z-axis guide rails all adopt the method of large span ratio, which increases the weight of the machine tool as a whole. This improves the stability of the machine tool.

3. Using our original active lubrication system, the oil pump is directly controlled by the numerical control system, and the problems caused by the oil circuit of the machine tool can be sensed.

4. The inner protection design of the supporting roller skating group is adopted, so that the inner protection is always parallel to the guide rail during movement, and it is not easy to be deformed, which improves the waterproofness and prolongs the service life.
