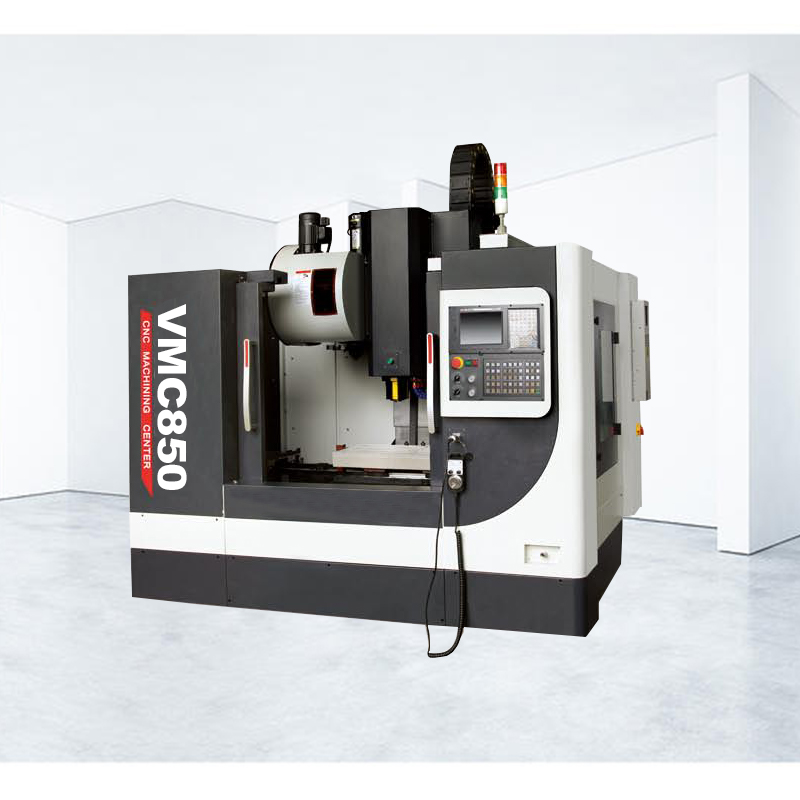

VMC850 CNC vertical machining center
High precision vertical machining centers can be used for working on big metal components such as engine propellers and impellers.
Product Description
The VMC850 series is the ideal, economical solution for multi-sided machining. machining center cnc has a variety of CNC systems for you to choose from. The extensive range of accessories for the cnc vertical machining center can also be adapted to specific requirements.
Features
1.Metal milling machine VMC series with rotary rotary table is the perfect tool for streamlined and cost-effective multi-axis machining.
2. Milling machine center 4th and 5th machining axes bring additional competitive advantages due to shorter cycle times, better stability.
3.3 axis mini cnc milling machine can choose a variety of CNC systems.
4. The compact design and high rigidity of the Machine Centre motion axis ensures long tool life.
5. The cnc milling 3 axis fully enclosed workspace has a main door and side door for easy access, safety and cleaning.
6.CNC milling machine 3 axis automatic central lubrication system to ensure proper lubrication of all lubrication points.
7. Speed up the cutting speed and shorten the non-cutting time.
3 axis cnc milling machine application
1. Plates, sets, plates
Such workpieces often have keyways and radial holes.
Perforated systems or curved plates with end faces of shafts, such as bushings, perforated plates, such as motor covers.
2. Trial production of new parts
CNC milling machine metal has high adaptability and flexibility.
When the processing object is changed, it is only necessary to create and input a new program, and sometimes even modify some program segments or use some special commands.
For example, using the zoom function can realize the processing of parts with the same shape but different sizes, which provides great convenience for single-piece, small-batch, multi-variety production and new product trial production, and greatly shortens production preparation and time.
Product parameters
| Model | ALVMC850 |
| Travel | |
| X axis | 1000mm |
| Y axis | 500mm |
| Z axis | 500mm |
| Distance from spindle nose to table | 100-600mm |
| Distance from spindle center to column | 550mm |
| Worktable | |
| Worktable size | 1000×500mm |
| Max. loading capacity | 400kg |
| T-slot | 5×18×90mm |
| Spindle | |
| Speed | 8000rpm |
| Taper | BT40 |
| Main motor power | 5.5Kw |
| Feed | |
| Rapid feed speed | 20m/min |
| Cutting feed speed | 10m/min |
| Positional accuracy | 0.016mm |
| Repeated positional accuracy | 0.006mm |
| X Y Z motor torque | 10/10/15Nm |
| Machine | |
| Weight | 3800 Kg |
| Overall dimensions（L×W×H） | 1900×2310×2300mm |
