GMC1012 Double Column Machining Center Cnc Gantry Milling Machine
GMC1012 Double Column Machining Center:
Wide range of processing, high precision and efficiency are more than double that of large vertical machining centers.
When installing the applicable accessory head, it can complete the five-side machining of various processes in one clamping for various types of discs, plates, shells, molds and other complex parts.
GMC1012 gantry milling machine center specification:
GMC1012 gantry milling machine center specification
Item |
Name |
ALGMC1012 |
Structure type |
Gantry width(mm) |
1080 |
Worktable |
Worktable load (KG) |
2000 |
Worktable size (mm) |
1000*1200 |
T-slot width |
18mm |
X.Y.Z Axis |
Travel (mm) |
1000*1200*450 |
X.Y axis fast moving speed(no load)( mm/min) |
10000 |
Z axis fast moving speed(mm/min) |
7000 |
Fastest processing speed(mm/min) |
6000 |
Positioning accuracy(mm) |
+-0.01/300 |
Re-positioning accuracy(mm) |
+-0.01 |
Spindle |
Spindle motor power |
7.5KW Servo |
Spindle motor speed(r/min) |
500-8000 |
Spindle form |
Belt type mechanical spindle |
Spindle model brand |
BT40 |
Dimensions |
L*W*H(m)(About) |
3.4*2.3*2.6~2.9(Highest) |
Machine weight |
(About)(T) |
7 |
How should the gantry machining center (gantry milling machine) be selected?
1. Selection of the processed object Before determining the purchase object, the object to be processed must be clearly defined. Generally speaking, parts with the following characteristics are suitable for processing in a machining center: Multi-process intensive workpieces refer to a workpiece that needs to be processed with many tools. Reproducible workpieces are suitable for single-piece small batch production.
2. The selection of machine tool specifications is based on the size of the workpiece to be processed, and the table size of the required machine tool and the stroke of the three linear coordinate systems are determined accordingly.
3. Selection of machine tool accuracy According to the machining accuracy requirements of the workpiece, the user selects a machine tool with a corresponding accuracy level and mass-produced parts. The actual machining accuracy value may be 1.5-2 times the positioning accuracy.
4. Selection of tool magazine capacity The manufacturer of the machining center usually sets up 2-3 different capacity tool magazines for the machine tool of the same specification. When selecting, the user can determine the type of tool according to the process analysis results of the workpiece to be processed. The capacity of the tool magazine is usually determined by the number of tools required for one part in one clamping, because when another part is processed, the tools need to be rearranged, otherwise the tool management is complicated and prone to errors.
5.Selection of machine tool functions and accessories When selecting a machining center (gantry milling machine), in addition to basic functions and basic parts, there are also functions and accessories that users can choose according to their own requirements, called selection functions and selection accessories.

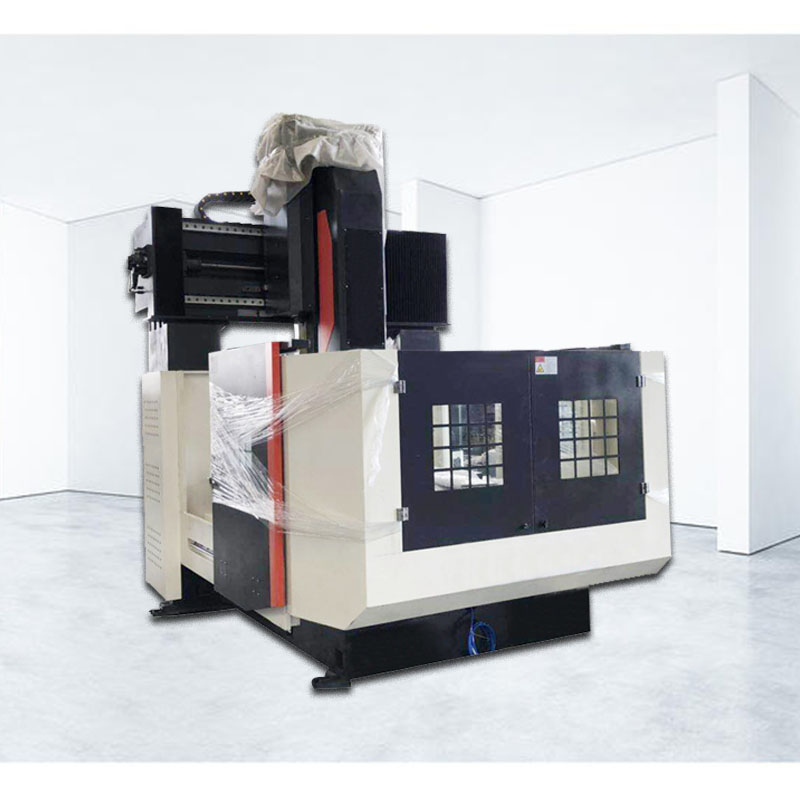

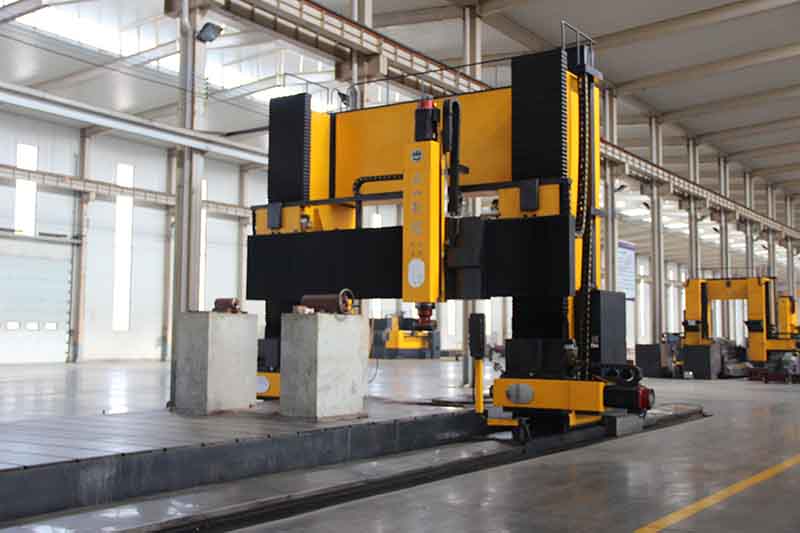

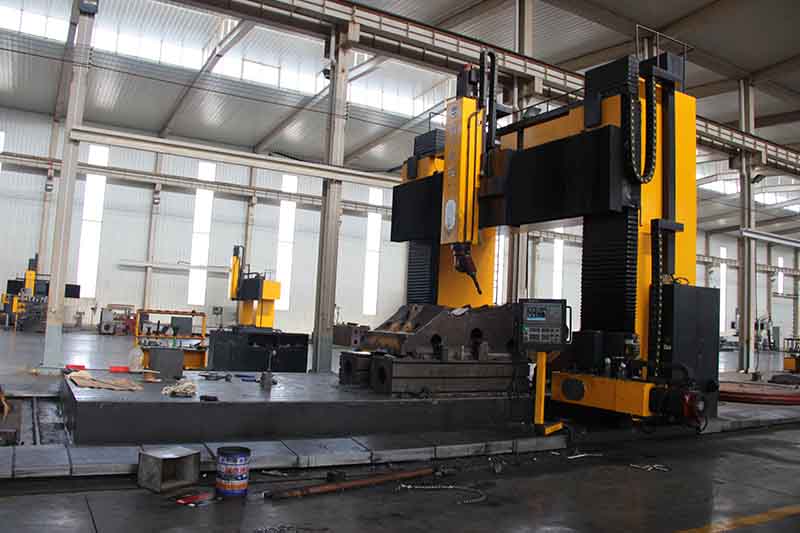

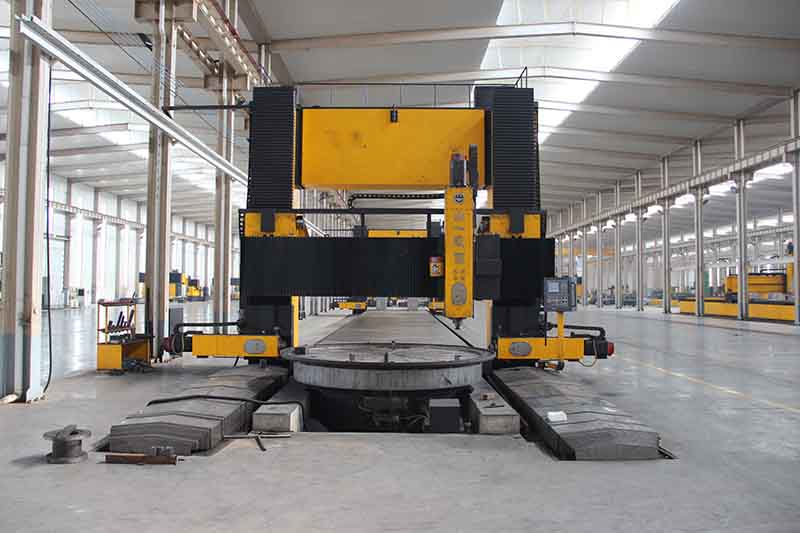

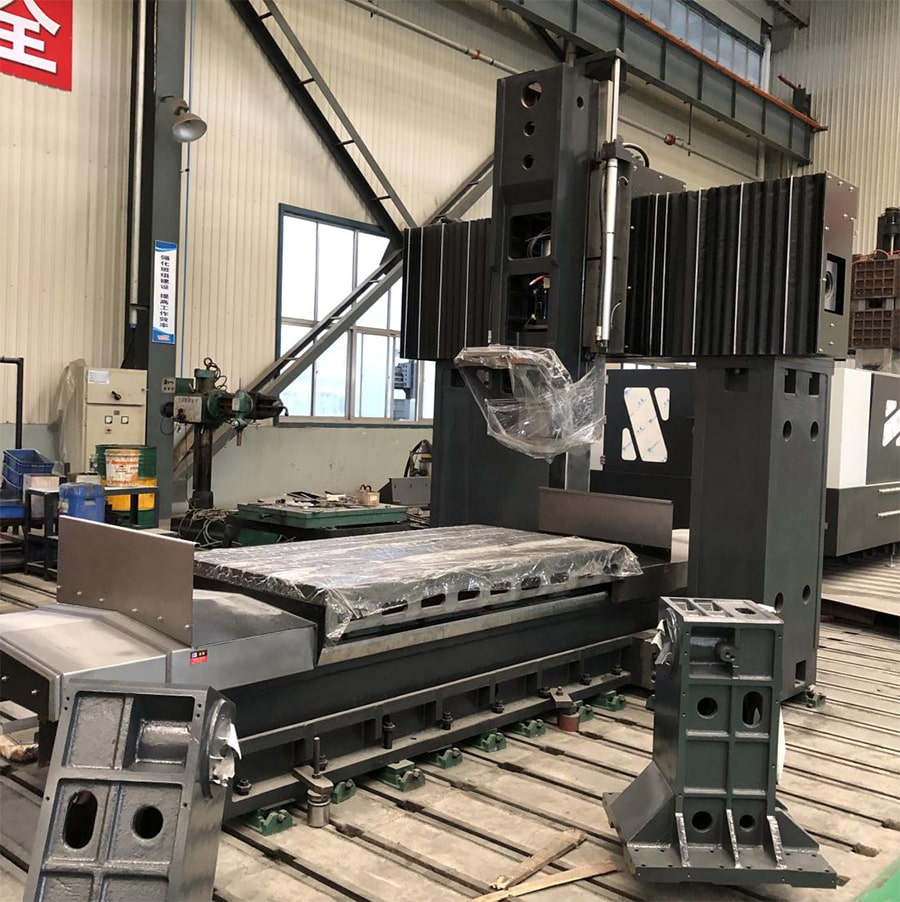

Cnc Gantry Milling Machine Product Display:
