cnc gantry milling machine GMC2040 gantry metal cnc milling machine
cnc gantry milling machine is suitable for milling, boring, drilling, threading, etc. Machining ferrous and non ferrous metals, it can finished various process with only once install the work piece, ensure the quality of products and production efficiency.
Product Description

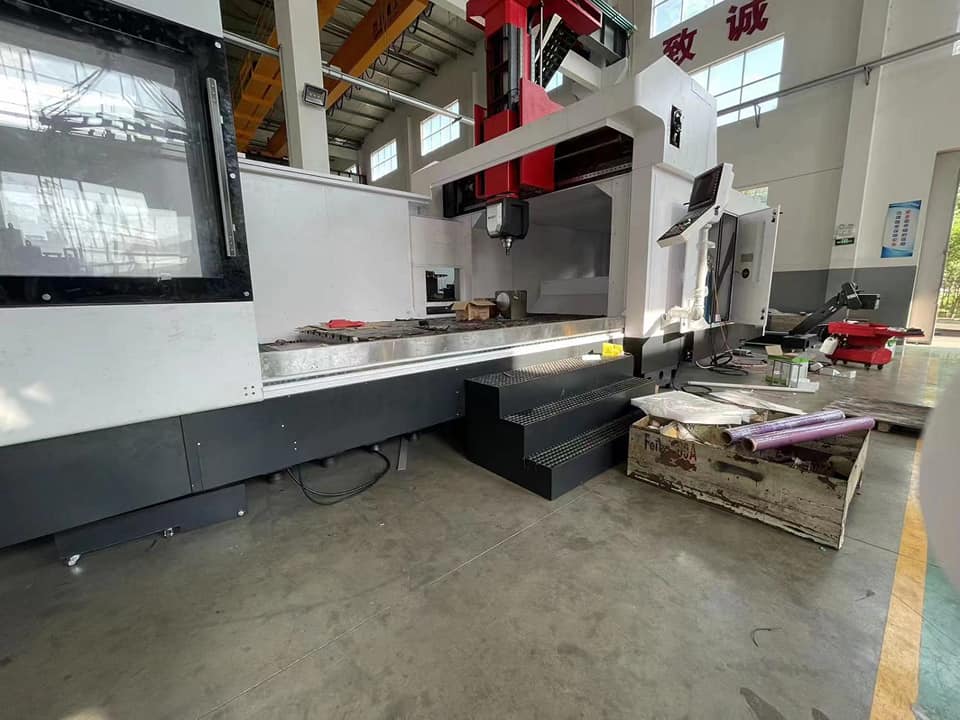

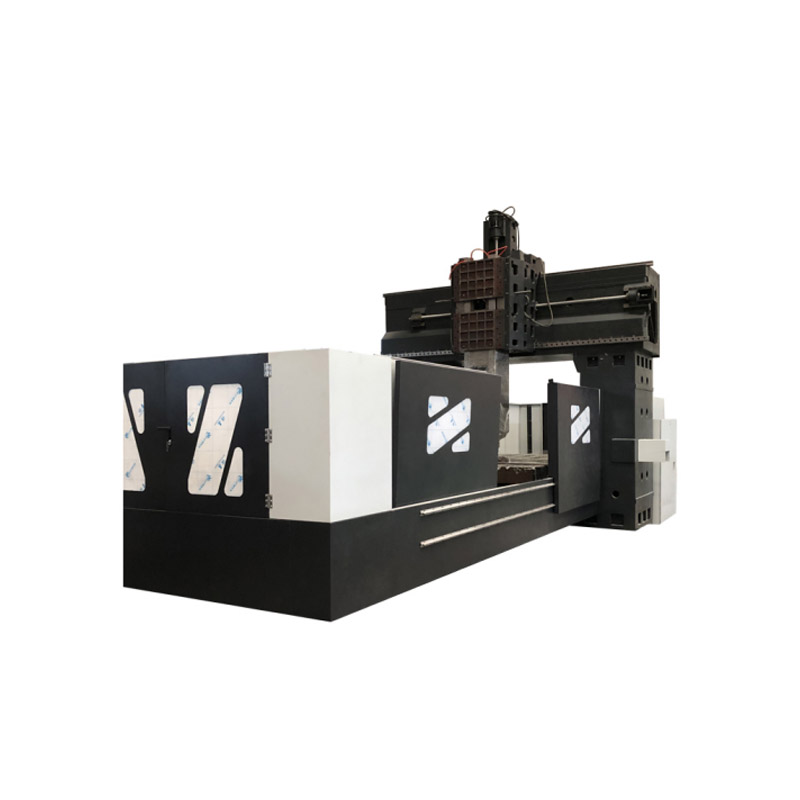

cnc gantry milling machine GMC2040 gantry metal cnc milling machine
The gantry metal cnc milling machine has a variety of table sizes and can handle large components and loads.
The robust construction of the CNC Gantry Machining Center with a high-precision measuring system, the bridge milling machine/mobile table is the epitome of solution-oriented design.
The gantry metal cnc milling machine has a full range of milling heads and has the ability to process small and medium complex parts in soft and hard materials, with the ability to efficiently handle different materials including aluminium, composites, steel, invar and titanium.
Video
Features:
1. Gantry metal cnc milling machine provides excellent precision performance for mold cutting, high-precision contour finishing, milling, drilling, tapping and other processing.
2.5 Axis Gantry Milling Machine effectively shortens tool travel and cutting process, prolongs tool life, and provides the best choice for compound angle machining.

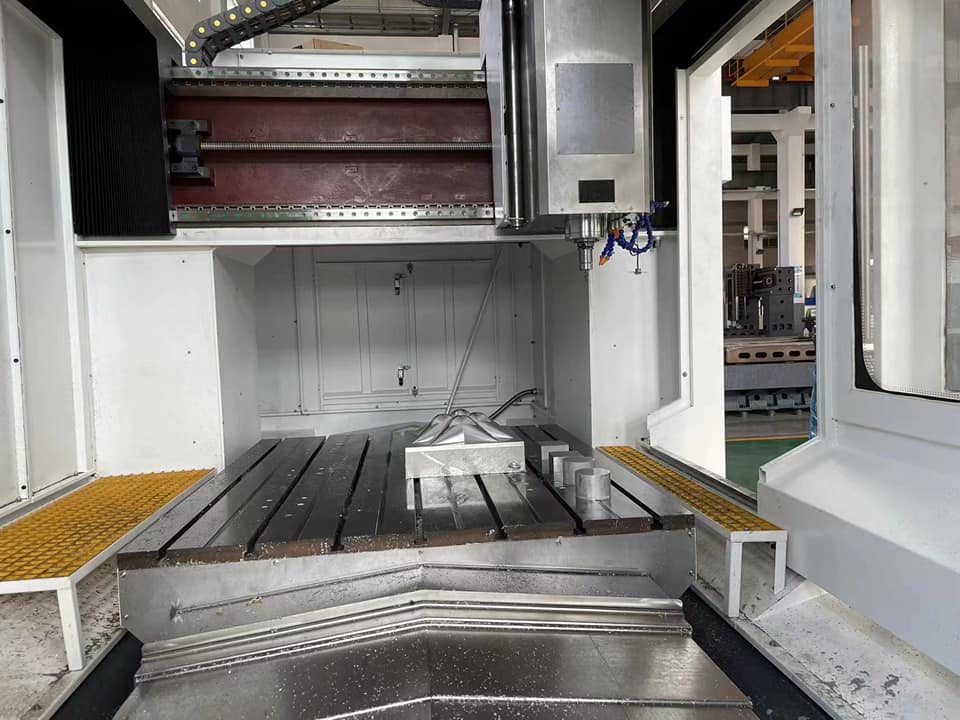

3. Gantry type machine center with low table height, closer operating area and wider door width is the design that is convenient for users.
4. Gantry Machining Center chain chip conveyor (standard) can effectively remove iron chips.
Video
Agriculture, Construction and Mining
Large parts don't have to have long cycle times. Powerful drives and rigid machining platforms in the Gantry Machining Center make heavy-duty material removal a breeze, optimizing productivity.
From boom to stick, bucket to frame, there are no heavy equipment parts that a cnc drilling and milling machine can't handle.
CNC milling machines provide high throughput and minimize downtime.
Video
| Item | Unit | Specs | |
|---|---|---|---|
| Structure type | Fixed beam gantry type | Resin sand casting | |
| Gantry width | mm | 1280 | |
| Worktable | Worktable load | KG | 2500 |
| Worktable size | mm | 2000*4000 | |
| T-slot width | mm | 18 | |
| X.Y.Z Axis | Travel | mm | 2000*4000*450 |
| X.Y axis fast moving speed（no load） | mm/min | 8000-12000 | |
| Z axi fast moving speed | mm/min | 7000-10000 | |
| Fastest processing speed | mm/min | 6000 | |
| Positioning accuracy | mm/mm | 0.02/300 | |
| Re-positioning Accuracy | mm | 0.02 | |
| Spindle | Spindle power | KW | 7.5 |
|
Spindle motor speed
|
r/min | 0-8000 | |
| Spindle speed | r/min | 100-8000 | |
| Spindle to table distance（about） | mm-mm | 120-570 | |
| Dimensions | L*W*H | m | 4*2.3*2.6~2.9 |
| Weight | T | 13 | |
