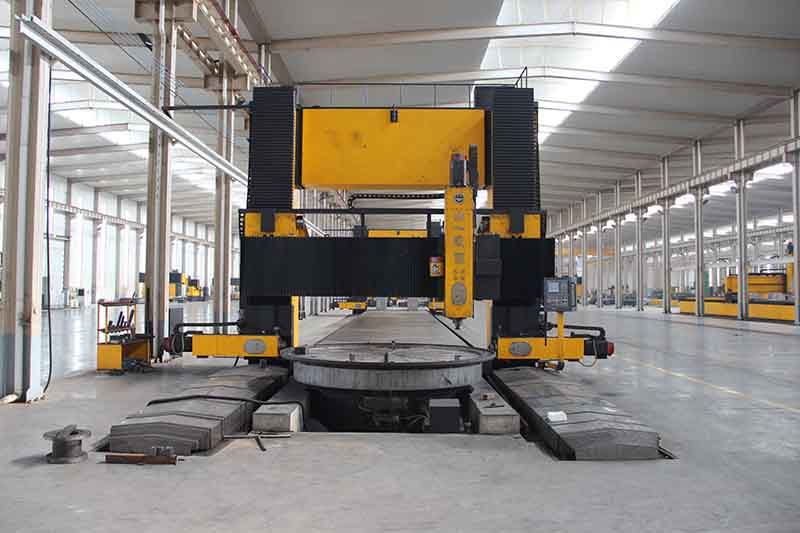

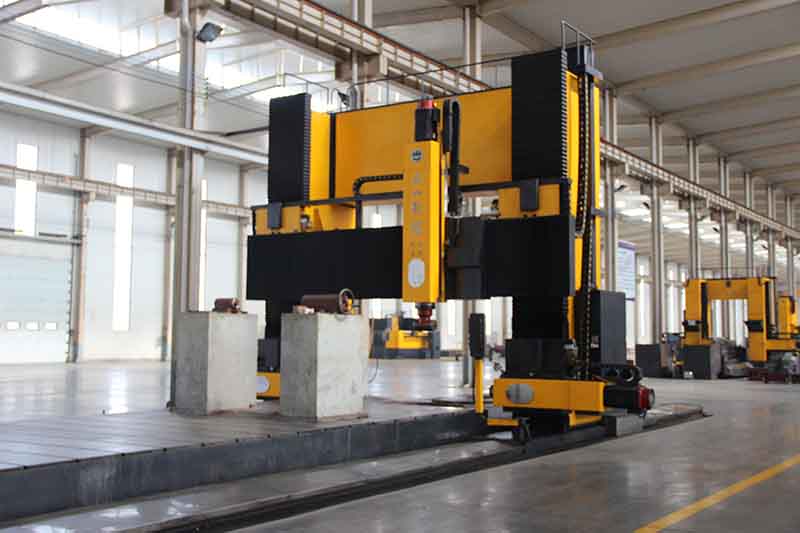

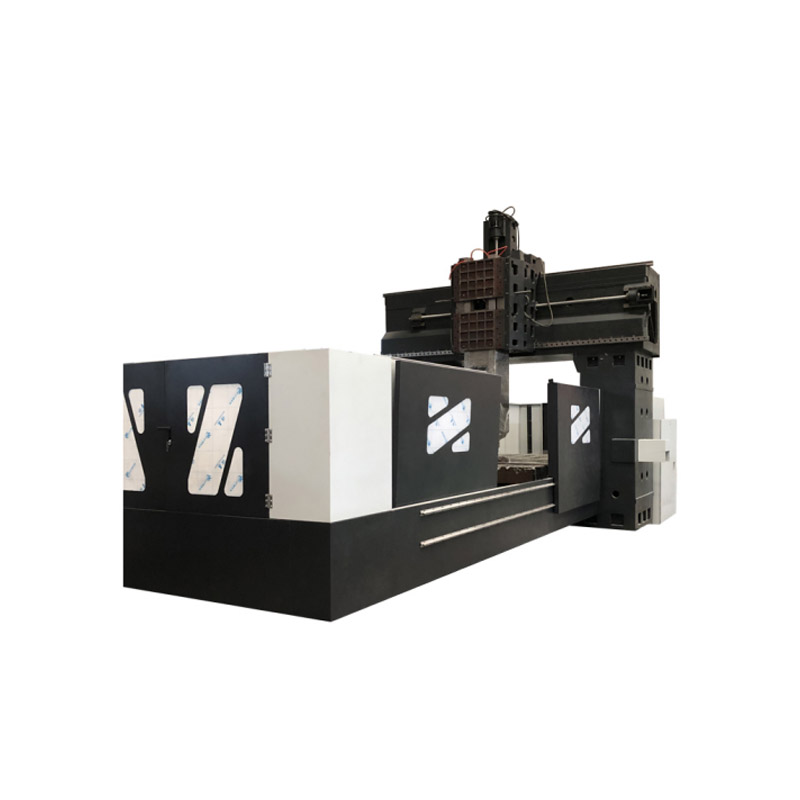

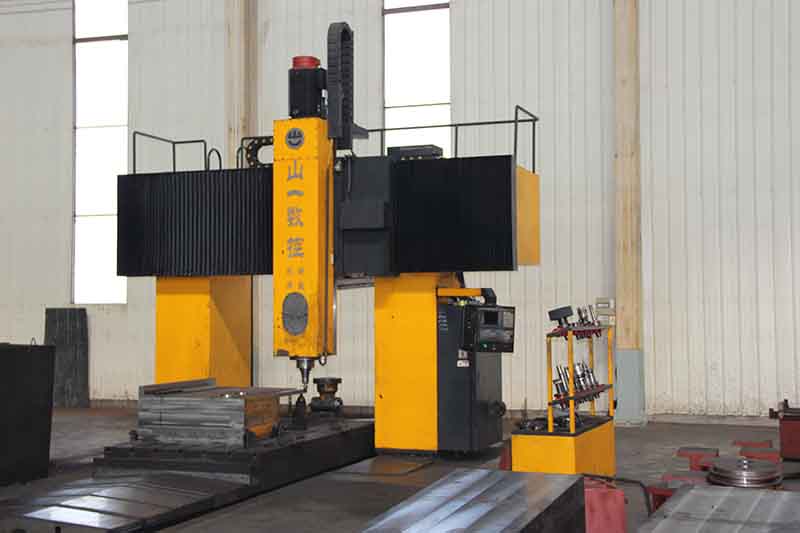

5 Axis Gantry Milling Machine GMC2116 gantry metal cnc milling machine
CNC Gantry Machining Center can complete the multi-process machining of complex profiles such as milling, drilling, boring and reaming of parts with high efficiency and high precision. Optional right-angle milling head and universal milling head can realize one-time clamping of parts and complete five-sided parts. The processing of the process is used in the processing of machinery manufacturing, molds and complex curved surfaces.
Product Description
5 Axis Gantry Milling Machine GMC2116 gantry metal cnc milling machine
The cnc gantry milling machine is mainly composed of the bed, the column, the beam, the transverse slide, the worktable, the spindle, the screw, the lubrication system, the cooling system, the numerical control operation panel and the electric control system.
Video
Industry application of cnc gantry milling machine:
CNC Gantry Machining Center Features:
1. The main components of the gantry metal cnc milling machine are optimized by finite element analysis, and the main cast iron is made of high-strength cast iron with stable metallographic structure. After aging, sandblasting, tempering and other processes, the long-term accuracy of the machine tool is ensured.
2.5 Axis Gantry Milling Machine gantry straddle structure, the structure is optimized for three-dimensional variable diameter, which reduces the vibration of the machine tool during strong cutting and makes the machine tool more rigid.
The gantry type machine center beam is designed in the form of a ladder, and the rigid and strong structure is suitable for strong cutting.
3.Gantry Machining Center high-speed and high-rigidity spindle unit combined with servo spindle motor; X/Y/Z adopts high-torque servo motor.
Video
Industry application of cnc gantry milling machine:
CNC Gantry Machining Center has processing functions such as boring, drilling, milling, grooving, etc. It is equipped with high-precision reversing worktable and top-level functional accessories for right-angle milling, which can complete five-sided processing. It is used in metallurgy, power, electric power and other industries. Ideal for machining large parts such as steam turbines, generators and heavy machinery.
Gantry metal cnc milling machine is a large category of metal cutting machine tools. It is famous for its high precision and many varieties. It is one of the necessary equipment for precision machining in power, machinery, transportation, metallurgy, aerospace, military and other occupations.
1. Parts with complex shapes and high machining accuracy that cannot be machined by general-purpose machine tools or are difficult to ensure the machining quality;
2. During the processing of the gantry type machine center, it is necessary to carry out multi-process processing. If necessary, the processes such as milling, boring, countersinking or tapping should be completed in one clamping;
3. Shell or box-shaped parts with difficult to measure, difficult to control feed, and difficult to control cavity size.
Gantry Machining Center meets the key processing needs of oversized parts in key areas such as aerospace, power generation equipment, and automobiles.
Video
| Item | Name | GMC2116 |
|---|---|---|
| Structure type | Fixed beam gantry structure | |
| Gantry width(mm) | 1680 | |
| Worktable | Worktable load (KG) | 4000 |
| Worktable size (mm) | 1600*2000 | |
| T-slot width(mm) | 18 | |
| X.Y.Z Axis |
Travel (mm)
|
1600*2000*700(Optional)
|
| Y axis screw | 5010 | |
| X axis screw | 5010 | |
| Z axis screw | 4005 | |
| X.Y axis fast moving speed(no load)( mm/min) | 10000 | |
| Z axis fast moving speed(mm/min) | 7000 | |
| Fastest processing speed(mm/min) | 6000 | |
| Positioning accuracy(mm) | +-0.01/300 | |
| Re-positioning accuracy(mm) | +-0.01 | |
| Spindle |
Spindle motor power
|
15KW Servo
|
| Spindle motor speed（r/min） | 0-6000 | |
| Nasal end to table distance (about)(mm) | 150-1000 | |
|
Dimensions
|
L*W*H（m）(About) | 5.5*2.6*3.7 |
| Machine weight |
(About)(T)
|
15 |
