CNC Gantry Machining Center GMC2525 gantry type machine center
Gantry metal cnc milling machine is widely used in general machinery, aviation, aerospace, automobile, nuclear industry, energy, mold, locomotive, heavy machinery, engineering machinery, ships, machine tools, electronics, printing, textile and other manufacturing industries.
Product Description

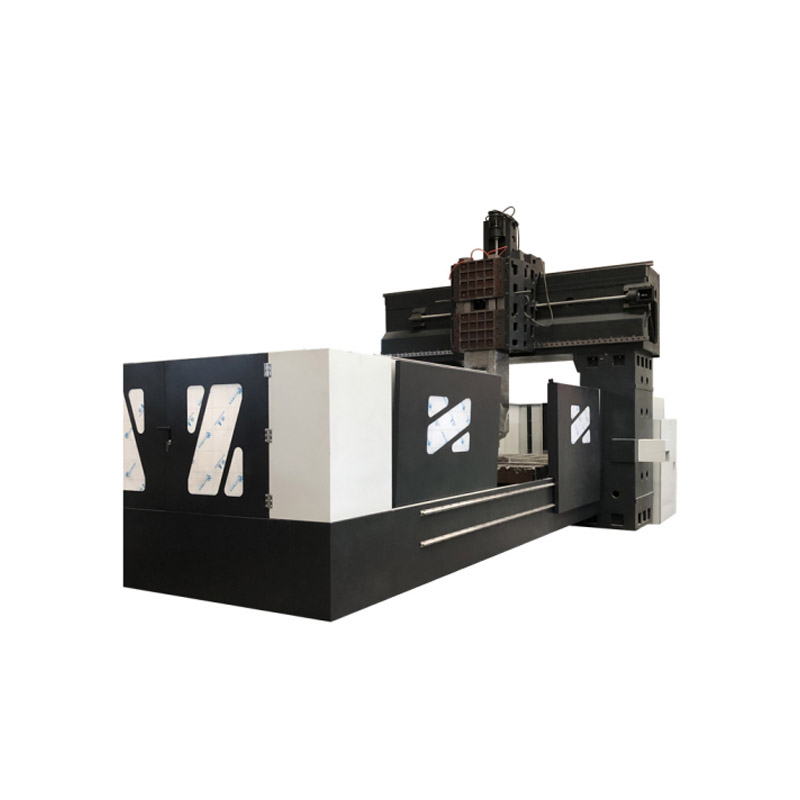

CNC Gantry Machining Center GMC2525 gantry type machine center

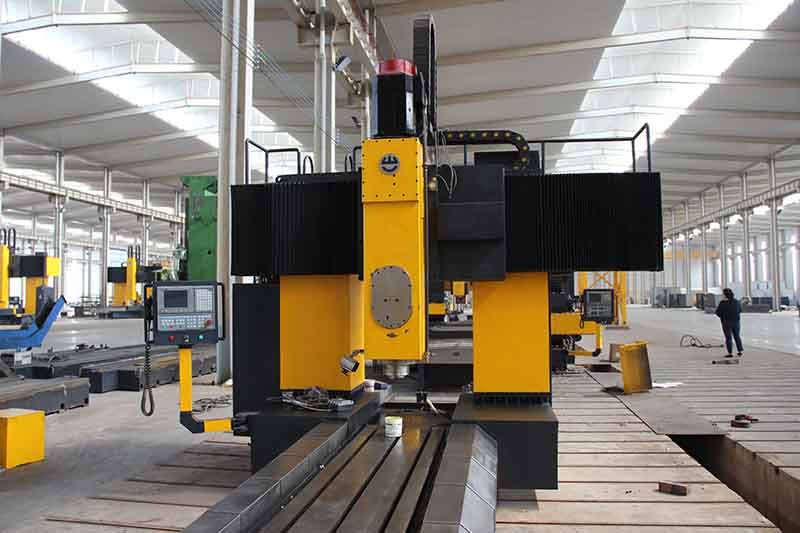

The cnc gantry milling machine is a fixed beam, movable table, and gantry frame structure.On the basis of inheriting the characteristics of traditional gantry, such as strong rigidity and good stability, it introduces and absorbs advanced design concepts, and uses finite element method for mechanical analysis.
Reasonable It is an advanced equipment with high efficiency, high precision and high reliability to improve the overall rigidity, static accuracy and dynamic performance of the machine tool.
Video
The main features of 5 Axis Gantry Milling Machine are:
1. On the basis of CNC boring machine or CNC milling machine, an automatic tool changer is added, so that after the workpiece is clamped once, the multi-process processing of the workpiece surface can be continuously completed, and the processes are highly concentrated.
2. Gantry metal cnc milling machine generally has an automatic indexing rotary table or spindle box, which can automatically rotate the angle, so that the workpiece can automatically complete multi-process processing of multiple planes or multiple angular positions after one clamping.
3.CNC Gantry Machining Center can automatically change the machine tool spindle speed, feed rate, the movement path of the tool relative to the workpiece and other auxiliary functions.
4. If the cnc gantry milling machine has an exchange table, while the workpiece is processed on the table at the working position, the loading and unloading of other workpieces on the table at the loading and unloading position will not affect the normal processing of the workpiece.
Video
Application industries of CNC Gantry Machining Center:
The cnc gantry milling machine is mainly used for multi-variety and batch processing of automobile molds, construction machinery and wind power equipment, ensuring high size, shape and position accuracy, and meeting the rough and finishing requirements of parts.
Video
| Item | Unit | Specs | |
|---|---|---|---|
| Structure type |
Fixed beam gantry type
|
Resin sand casting
|
|
| Gantry width | mm | 1280 | |
| Worktable |
Worktable load
|
KG | 2500 |
| Worktable size | mm | 2500*2500 | |
| T-slot width | mm | 18 | |
| X.Y.Z Axis |
Travel
|
mm |
2500*2500*450
|
| X.Y axis fast moving speed（no load） | mm | 8000-12000 | |
| Z axi fast moving speed | mm/min | 7000-10000 | |
| Fastest processing speed | mm/min | 6000 | |
| Positioning accuracy | mm/min | 0.02/300 | |
| Re-positioning Accuracy | mm | 0.02 | |
| Spindle |
Spindle power
|
KW
|
7.5
|
| Spindle motor speed | r/min | 0-8000 | |
| Spindle speed | r/min | 100-8000 | |
| Spindle to table distance（about） | mm-mm | 120-570 | |
| Dimensions | L*W*H | m | 4*2.3*2.6~2.9 |
| Weight | T | 12 | |
