CNC Gangtry milling machine GMC3030 cnc milling machine
The emergence of CNC Gantry Machining Center has brought revolutionary changes to the traditional manufacturing industry, making the manufacturing industry a symbol of modern industrialization.
The development of CNC technology has brought a lot of convenience to the fields of automobile manufacturing, national defense and aerospace, and machinery manufacturing.
Product Description

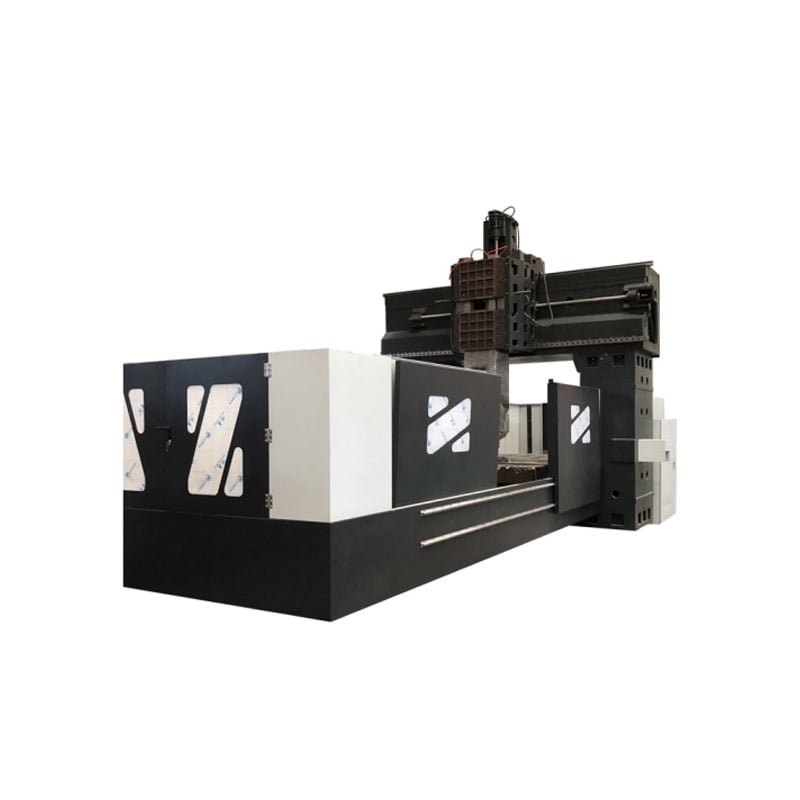

CNC Gangtry milling machine GMC3030 cnc milling machine

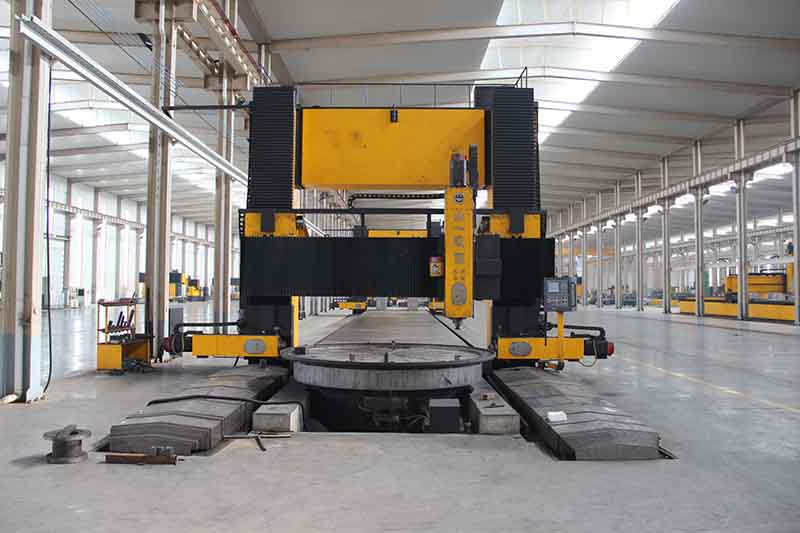

cnc gantry milling machine belongs to a mainstream large-scale machining center. CNC Gantry Machining Center refers to a machining center whose spindle axis is perpendicular to the worktable. Its design structure is mainly designed to facilitate the processing of large parts. It can be said that it solves the problem of small A loophole that the center cannot meet the machining of large parts.
Video
The functions of different grades of cnc gantry milling machines are quite different, but they should all have the following main functions:
1. Linear interpolation: one of the basic functions of CNC milling.
2. Circular interpolation: one of the basic functions of CNC milling.
3. Canned cycle: Canned cycle refers to the processing subroutines developed by the system developer, the organic composition of the system itself, and the parameterized processing subroutines that are applied to simplify programming, and are applied in a fixed instruction format, mainly used to realize some typical Need to repeat the machining action many times, such as the machining of various holes, threads, grooves, etc. Using canned cycles can effectively simplify the programming.
4. Tool compensation: generally includes tool radius compensation, tool length compensation, tool position compensation, etc.
Video
Application field
1. Gantry type machine center is used for large sheet metal of automobiles such as plastic molds
2.5 The Axis Gantry Milling Machine is used for the processing of large molds and other large-scale products with high surface finish, and has a considerable relationship with the system and accessories of the machine tool. Large-sized box structures are available.
3. Gantry metal cnc milling machine is generally used for model processing such as automobiles.
Video
| Item | Unit | Specs | |
|---|---|---|---|
| Structure type | Fixed beam gantry type | Resin sand casting | |
| Gantry width | mm | 1280 | |
| Worktable | Worktable load | KG | 2500 |
|
Worktable size
|
mm | 3000*3000 | |
| T-slot width | mm | 18 | |
| X.Y.Z Axis | Travel | mm | 3000*3000*450 |
|
X.Y axis fast moving speed（no load）
|
mm/min | 8000-12000 | |
| Z axi fast moving speed | mm/min | 7000-10000 | |
| Fastest processing speed | mm/min | 6000 | |
| Positioning accuracy | mm/mm | 0.02/300 | |
| Re-positioning Accuracy | mm | 0.02 | |
| Spindle | Spindle power | KW | 7.5 |
| Spindle motor speed | r/min | 0-8000 | |
| Spindle speed | r/min | 100-8000 | |
| Spindle to table distance（about） | mm-mm | 120-570 | |
| Dimensions | L*W*H | m | 4*2.3*2.6~2.9 |
| Weight | T | 13 | |
