5 Axis Gantry Milling Machine GMC1417 CNC milling machine
The main milling head of cnc gantry milling machine has the functions of milling, boring, drilling, countersinking, tapping, etc., Exclusively fit for large sized die-mould, tool room, aerospace and precision engineering component.
Product Description

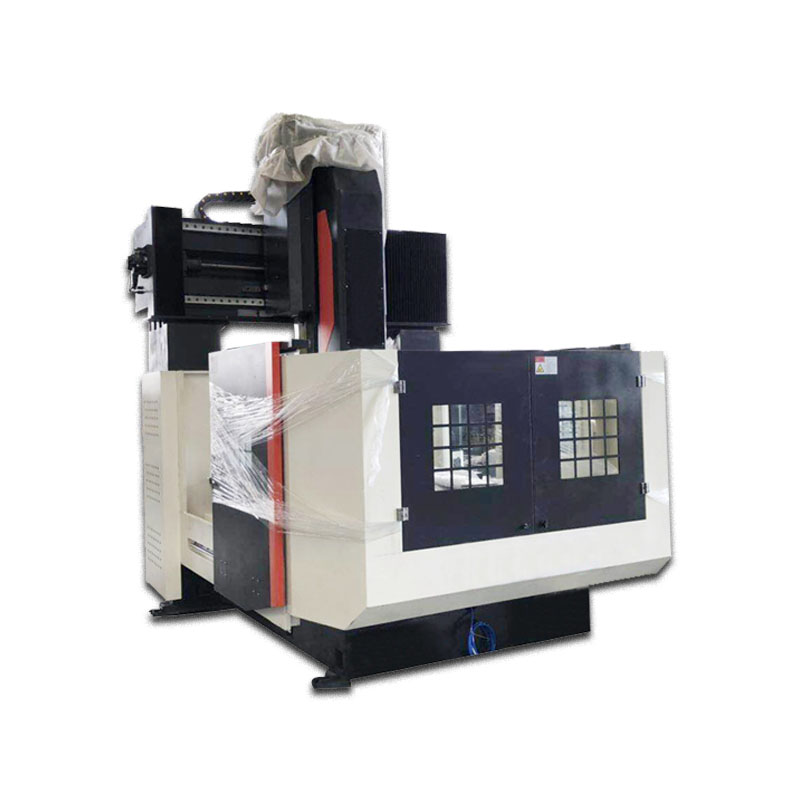

5 Axis Gantry Milling Machine GMC1417 CNC milling machine
CNC gantry milling machine with a moving table with a vacuum suction cup and a fixed beam,CNC Gantry Machining Center uses CNC to realize three-axis linkage, and each axis adopts a high-power AC servo motor, which can provide a strong axial thrust CNC gantry milling machine.
Video
Features:
The gantry metal cnc milling machine has the functions of milling, boring, drilling, countersinking and so on.
Gantry type machine center automatic measurement, automatic chip removal, optional disk, automatic processing of upper and lower planes.
cnc drilling and milling machine has good rigidity, high precision and high efficiency.
Video

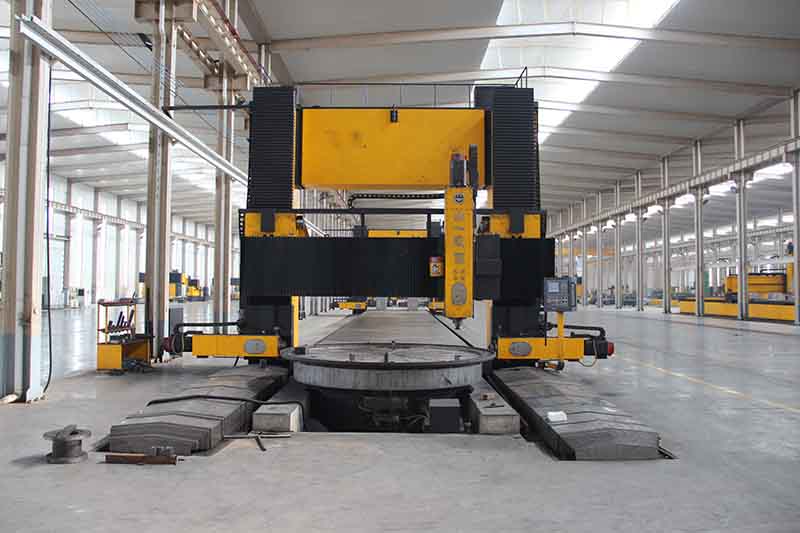

Industry application:
Gantry Machining Center is suitable for the processing of large and medium-sized parts in machinery, steel, energy, automotive, aerospace, weapons, ships and other industries.
The cnc 5 axis milling machine can be used for large plane milling of castings, steel parts and non-ferrous metal parts, and can be used in the production line of box parts in the oil engine, tractor and other industries, and can meet the production capacity requirements of 100,000 to 200,000 units per year.
Video
| Item | Unit | Specs | |
|---|---|---|---|
| Gantry width | mm | 1280 | |
| Worktable | Worktable load | KG | 2500 |
| Worktable size | mm | 1400*1700 | |
| Worktable size | mm | 18 | |
| X.Y.Z Axis | Travel | mm | 1400*1700*450 |
| X.Y axis fast moving speed（no load） | mm/min | 8000-12000 | |
| Z axi fast moving speed | mm/min | 7000-10000 | |
| Fastest processing speed | mm/min | 6000 | |
| Positioning accuracy | mm/mm | 0.02/300 | |
| Re-positioning Accuracy | mm | 0.02 | |
| Spindle | Spindle power | KW | 7.5 |
| Spindle motor speed | r/min | 0-8000 | |
| Spindle speed | r/min | 100-8000 | |
| Spindle to table distance（about） | mm-mm | 120-570 | |
| Dimensions | L*W*H | m | 4*2.3*2.6~2.9 |
| Weight | T | 9.5 | |
