5 axis cnc machining center GMC1825 cnc drilling and milling machine
CNC Gantry Style vertical machining centers are the perfect solution to your large parts requirements. With large machining envelopes, easy part set-up, and many customizable options, our milling lines of machine tools are ideal for a wide variety of industries including job shops, steel service centers, mould & die, offroad equipment manufacturing, power generation, aerospace, heat transfer and many more.
Product Description

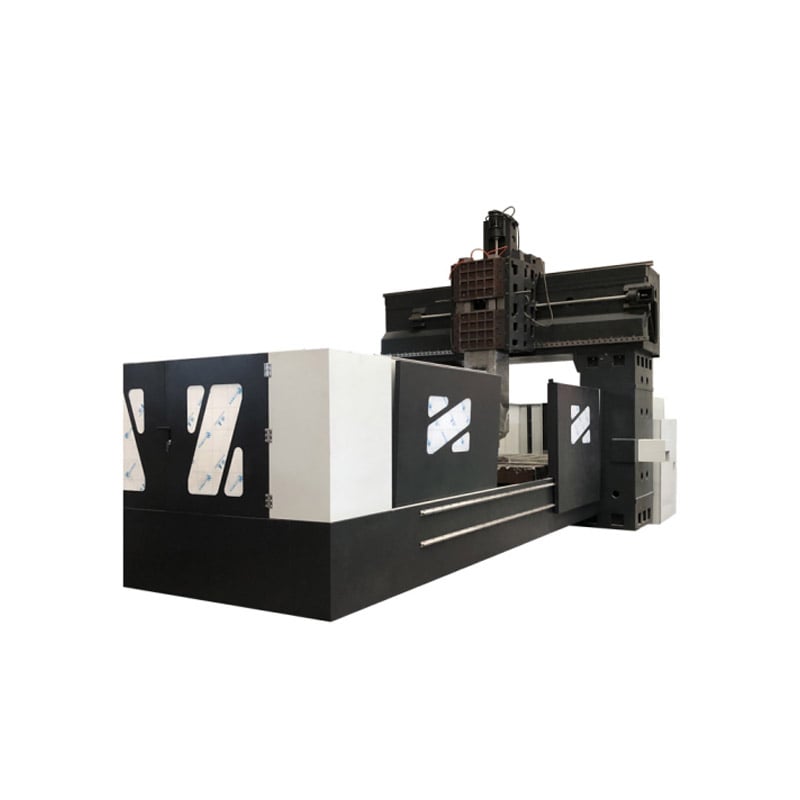

5 axis cnc machining center GMC1825 cnc drilling and milling machine
The cnc gantry milling machine is designed to meet one goal; to machine the largest and strongest parts with ease. The new one-piece base design greatly reduces the machine's footprint without compromising power or performance.
The CNC Gantry Machining Center is available in a variety of configurations to meet almost any machining requirement. With its powerful and versatile spindle options, multiple table size configurations, and multiple automatic head options including 5 axes, the gantry metal cnc milling machine is the machine of choice when you need performance and lots of it.
Video
Tooling application of Gantry Machining Center
Features of gantry type machine center
1.3 and 5 axis CNC milling
2.Finish and semi finish milling of steel, iron, kirksite tools
3.High feed milling of aluminum tools and components
4. Deep-hole drilling at compound angles
Video
Tooling application of Gantry Machining Center
1. Forging dies are consumable tools used in the process of manufacturing highly durable automotive components such as connecting rods, crankshafts, differential gears and steering arms.
2. Prototype stamping dies are used for body development, and vehicles are manufactured for crash testing. The cnc drilling and milling machine is used to mill precise contoured surfaces into prototype stamping dies.
3. Stamping dies are used for forming steel-aluminum body panels, chassis parts and other auto parts.
Video
| Item | Name | GMC1825 |
|---|---|---|
| Structure type | Fixed beam gantry structure | |
| Gantry width(mm) | 1880 | |
| Worktable | Worktable load (KG) | 6000 |
| Worktable size (mm) | 1800*2500 | |
| T-slot width | 22mm | |
| X.Y.Z Axis | Travel (mm) | 1800*2500*700(Optional) |
| X.Y axis fast moving speed(no load)( mm/min) | 10000 | |
| Z axis fast moving speed(mm/min) | 7000 | |
| Fastest processing speed(mm/min) | 6000 | |
| Positioning accuracy(mm) | +-0.01/300 | |
| Re-positioning accuracy(mm) | +-0.01 | |
| Spindle | Spindle motor power | 15KW Servo |
| Spindle motor speed（r/min） | 0-6000 | |
| Nasal end to table distance (about)(mm) | 150-850 | |
| Dimensions | L*W*H（m）(About) | 7.5*3.0*3.7 |
| Machine weight (About)(T) | 24 | |
