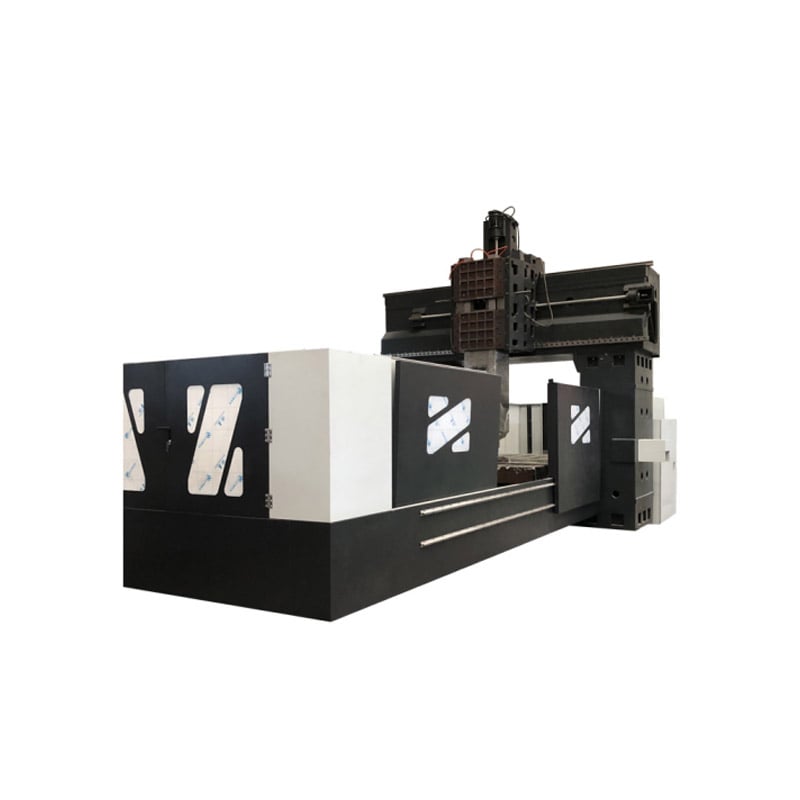

Double Column Milling Machine GMC2030 5 axis cnc machining center
CNC Gantry Machining Center adopts advanced CNC machine technology and manufacturing standards.
The worktable of cnc gantry milling machine adopts high-rigidity roller guide rail, which ensures the excellent rigidity and stability of the machine.
The 5 axis cnc machining center adopts the gear plate for precise positioning, and the CNC turntable can maintain the accuracy for a long time.
Product Description
Double Column Milling Machine GMC2030 5 axis cnc machining center
CNC Gantry Machining Center are available with fixed or moving tables and single or multiple gantries, allowing operators to combine the features most relevant to their applications.
cnc 5 axis milling machine the ridged frame construction consists of a massive machine bed, two uprights and a strong crossbeam to ensure excellent positioning stability and extremely high cutting efficiency.
Video
Features of CNC Gantry Machining Center
1. Very spacious processing area of gantry metal cnc milling machine
2. Gantry type machine center is loaded on the ground
3. Gantry Machining Center Best Dust Collection and Chip Conveyor Concept
4. All axes of cnc drilling and milling machine are directly driven (linear motor and torque motor)
5.CNC milling machine has excellent productivity in the processing of multi-purpose large workpieces
Video
Application of cnc gantry milling machine
The CNC Gantry Machining Center has a wide range of applications in the aerospace industry, including lamination molds, machining fixtures, assembly fixtures and friction stir welding fixtures.
The gantry metal cnc milling machine is ideal for milling alloy aerospace structures, racks and platforms.
Video
| Item | Unit | Specs | |
|---|---|---|---|
| Structure type | Fixed beam gantry type | Resin sand casting | |
| Gantry width | mm | 1280 | |
| Worktable | Worktable load | KG | 2500 |
| Worktable size | mm | 2000*3000 | |
| T-slot width | mm | 18 | |
| X.Y.Z Axis | Travel | mm | 2000*3000*450 |
| X.Y axis fast moving speed（no load） | mm/min | 8000-12000 | |
| Z axi fast moving speed | mm/min | 7000-10000 | |
| Fastest processing speed | mm/min | 6000 | |
| Positioning accuracy | mm/mm | 0.02/300 | |
| Re-positioning Accuracy | mm | 0.02 | |
| Spindle | Spindle power | KW | 7.5 |
| Spindle motor speed | r/min | 0-8000 | |
| Spindle speed | r/min | 100-8000 | |
| Spindle to table distance（about） | mm-mm | 120-570 | |
| Dimensions | L*W*H | m | 4*2.3*2.6~2.9 |
| Weight | T | 11 | |
