5 axis cnc machining center GMC2040 gantry type machine center
1. Advanced control system of Double Column Milling Machine. Easy to operate.
2. The best after-sales service for cnc milling machine 5 axis
3.big cnc milling machine is easy to transport.
4.cnc milling machine 4 axis fully assembled and fully tested before delivery.
5. The cnc 5 axis milling machine provides installation and operation training on site.
Product Description

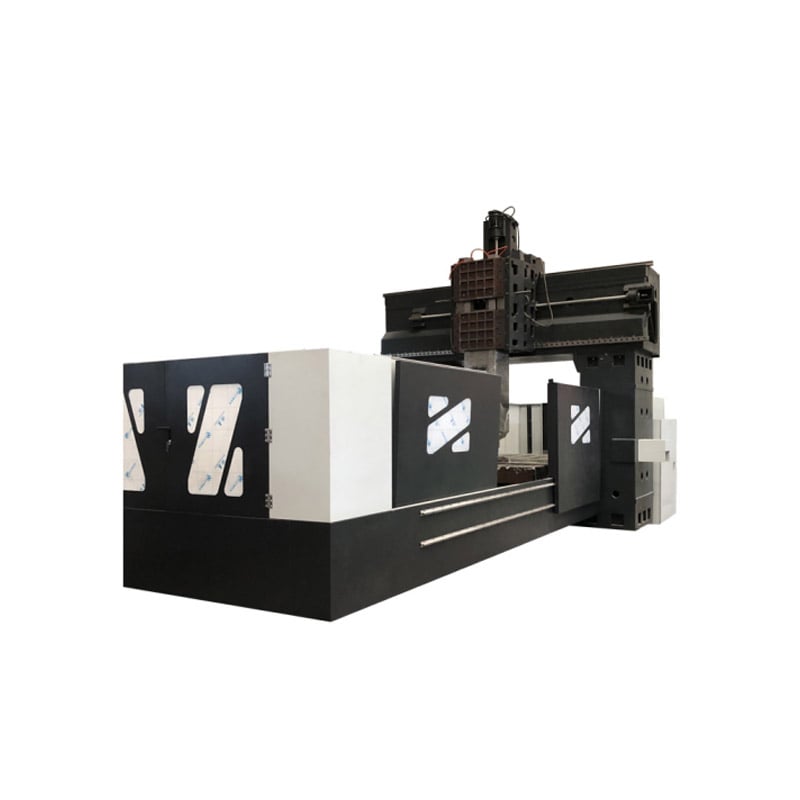

5 axis cnc machining center GMC2040 gantry type machine center
Features of gantry milling machine:
1. The three axes of the CNC milling machine adopt high-efficiency self-lubricating linear guides, which have the characteristics of high speed, high precision and long life.
2. The cnc drilling and milling machine adopts the latest high-rigidity casting structure, which ensures the beauty, firmness and stability of the machine.
3. Gantry Machining Center Z axis adopts nitrogen balance to eliminate micro vibration during machining.
4. Gantry type machine center Z axis can be equipped with linear rail or hard rail to meet the needs of high precision or high strength.
Video
Gantry type machine center can realize a variety of processing methods:
The processing width of the processing surface, sealing groove and flange surface can be freely adjusted within the specified range under the 5 Axis Gantry Milling Machine.
Maintenance of compressor mounting bases, motor mounting bases, rolling mill arches, ship loaders, mining machinery, etc. are typical applications of gantry metal cnc milling machine.
Video
| Item | Unit | Specs | |
|---|---|---|---|
| Structure type | Fixed beam gantry type | Resin sand casting | |
| Gantry width | mm | 1280 | |
| Worktable | Worktable load | KG | 2500 |
| Worktable size | mm | 2000*4000 | |
| T-slot width | mm | 18 | |
| X.Y.Z Axis | Travel | mm | 2000*4000*450 |
| X.Y axis fast moving speed（no load） | mm/min | 8000-12000 | |
| Z axi fast moving speed | mm/min | 7000-10000 | |
| Fastest processing speed | mm/min | 6000 | |
| Positioning accuracy | mm/mm | 0.02/300 | |
| Re-positioning Accuracy | mm | 0.02 | |
| Spindle | Spindle power | KW | 7.5 |
|
Spindle motor speed
|
r/min | 0-8000 | |
| Spindle speed | r/min | 100-8000 | |
| Spindle to table distance（about） | mm-mm | 120-570 | |
| Dimensions | L*W*H | m | 4*2.3*2.6~2.9 |
| Weight | T | 13 | |
