CNC Gantry Machining Center GMC2116 cnc 5 axis milling machine

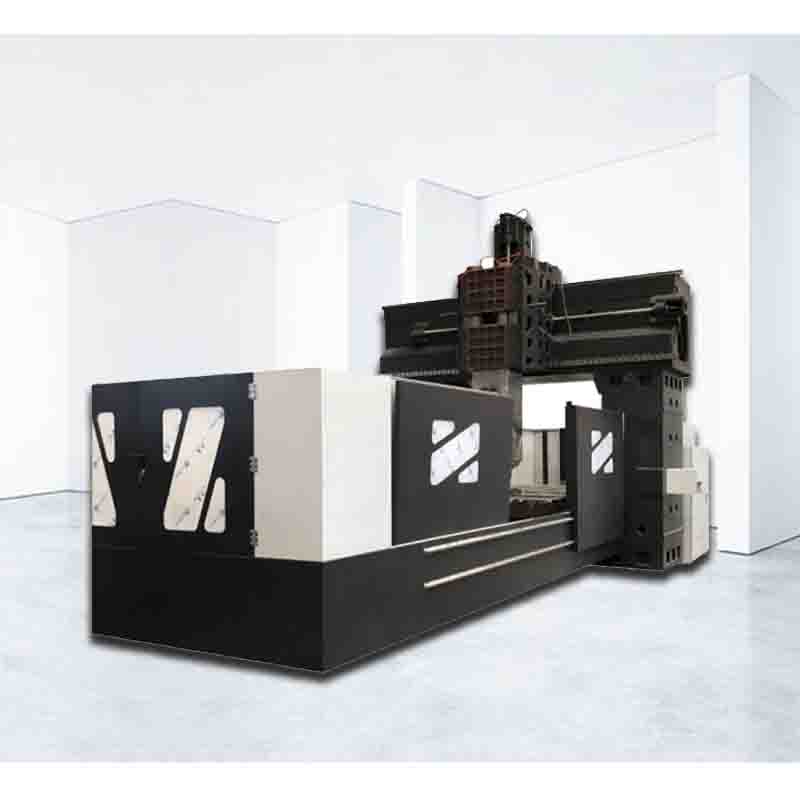

CNC Gantry Machining Center's machine base, worktable, column, rail, saddle, and spindle box are all made of high-strength cast iron, with a very reasonable structure, high rigidity and good stability.
The gantry metal cnc milling machine is mainly used in aviation, shipbuilding, power generation, heavy machinery, automobiles, machine tools, textile machinery, printing machinery, automotive panel molds and other mechanical processing.
The 5 Axis Gantry Milling Machine is suitable for machining in a variety of challenging industries across a wide range of industries.
Product Description
Features of 5 axis cnc machining center:
1. For machining aluminum or plastic, the cnc gantry milling machine can be equipped with a powerful spindle, and the open design of the CNC Gantry Machining Center machine bed ensures optimal chip removal.
2. The gantry metal cnc milling machine has automatic tool change function, and a special safety panel can protect the working area from cutting and coolant.
3.5 Axis Gantry Milling Machine closed cooling system and quiet working environment.
Compared with air-cooled machines, the water-cooled drive can achieve better thermal control and lower noise. Can create a quiet, healthy and safe working environment.
4.Gantry type machine center takes less time to process workpieces.
Video
Video
Applications of 5 Axis Gantry Milling Machine
The Double Column Milling Machine is a large machine specially designed for machining large parts.
High Quality cnc gantry milling machine is mainly used in heavy industries, such as aircraft, automobiles, ships and other heavy industries.
Gantry Machining Center mainly processes large and complex workpieces, such as aircraft beams, frames and certain parts on large machinery.
All in all, gantry type machine center has a wide range of uses, is worth buying, and has high processing efficiency.
Video
Video
| Item | Name | GMC2116 |
|---|---|---|
| Structure type | Fixed beam gantry structure | |
| Gantry width(mm) | 1680 | |
| Worktable | Worktable load (KG) | 4000 |
| Worktable size (mm) | 1600*2000 | |
| T-slot width(mm) | 18 | |
| X.Y.Z Axis | Travel (mm) | 1600*2000*700(Optional) |
| Y axis screw | 5010 | |
| X axis screw | 5010 | |
| Z axis screw | 4005 | |
| X.Y axis fast moving speed(no load)( mm/min) | 10000 | |
| Z axis fast moving speed(mm/min) | 7000 | |
| Fastest processing speed(mm/min) | 6000 | |
| Positioning accuracy(mm) | +-0.01/300 | |
| Re-positioning accuracy(mm) | +-0.01 | |
| Spindle | Spindle motor power | 15KW Servo |
| Spindle motor speed（r/min） | 0-6000 | |
| Nasal end to table distance (about)(mm) | 150-1000 | |
| Dimensions | L*W*H（m）(About) | 5.5*2.6*3.7 |
| Machine weight | (About)(T) | 15 |
