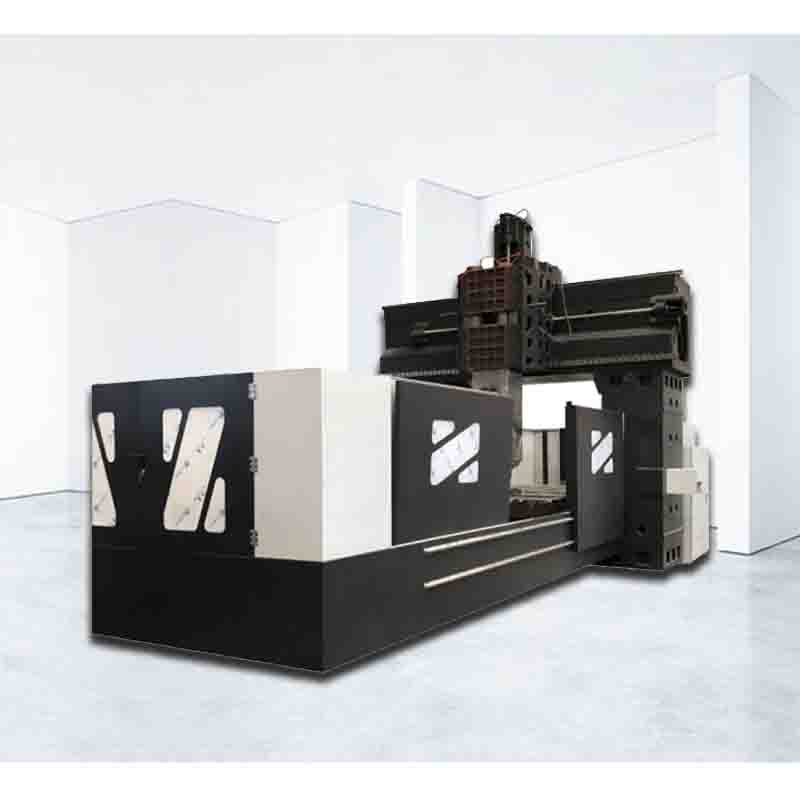

Gantry type machine center GMC2525 gantry metal cnc milling machine
CNC Gantry Machining Center made in China with top specification and super durability!
cnc gantry milling machines have always been known for their large working range and durability. We've listened to our customers and now offer the features and performance mold, die and aerospace tool makers demand.
With our gantry metal cnc milling machine, you will have top-notch performance and specifications.CNC Gantry Machining Center made in China with top specification and super durability!
cnc gantry milling machines have always been known for their large working range and durability. We've listened to our customers and now offer the features and performance mold, die and aerospace tool makers demand.With our gantry metal cnc milling machine, you will have top-notch performance and specifications.
Product Description
The main performance characteristics of big cnc milling machine:
1. cnc milling machine 5 axis direct connection structure, with automatic lubrication system, the machine tool realizes rapid movement.
2.Double Column Milling Machine adopts high-speed high-precision spindle and high-rigidity spindle unit.
3.cnc milling machine 4 axis Y X.Z three-way guide rail, to ensure the cleanliness of the lead screw and guide rail, to ensure the transmission and movement accuracy of the machine tool.
4. The cnc 5 axis milling machine adopts the centralized automatic lubricating device and the automatic intermittent lubricating operation is stable and reliable.
5. The mechanical and electrical system of CNC milling machine has a reasonable structure, the electric box is well sealed, and it is equipped with a heat exchange system to ensure a good use environment.
6. The operation of cnc drilling and milling machine is convenient, flexible and fast
Video
5 Axis Gantry Milling Machine for the Automotive Industry
From the production of body parts to the manufacture of engine components - gantry type machine centers have become an integral part of the automotive industry.
In this industry, the Gantry Machining Center helps in particular to increase efficiency and profitability: cnc drilling and milling machines ensure automation of component manufacturing and high yields of high-quality parts. This is a crucial advantage, reflecting the industry's growing demands for flexibility and adaptability.
cnc milling machine 4 axis machining car bumpers
Space-saving cnc 5 axis milling machine that can produce a large number of large parts by operating in series in a limited space with absolute precision and the smallest milling tolerances.
Video
| Item | Unit | Specs | |
|---|---|---|---|
| Structure type | Fixed beam gantry type | Resin sand casting | |
| Gantry width | mm | 1280 | |
| Worktable | Worktable load | KG | 2500 |
| Worktable size | mm | 2500*2500 | |
| T-slot width | mm | 18 | |
| X.Y.Z Axis | Travel | mm | 2500*2500*450 |
| X.Y axis fast moving speed（no load） | mm | 8000-12000 | |
| Z axi fast moving speed | mm/min | 7000-10000 | |
| Fastest processing speed | mm/min | 6000 | |
| Positioning accuracy | mm/min | 0.02/300 | |
| Re-positioning Accuracy | mm | 0.02 | |
| Spindle | Spindle power | KW | 7.5 |
| Spindle motor speed | r/min | 0-8000 | |
| Spindle speed | r/min | 100-8000 | |
| Spindle to table distance（about） | mm-mm | 120-570 | |
| Dimensions | L*W*H | m | 4*2.3*2.6~2.9 |
| Weight | T | 12 | |
