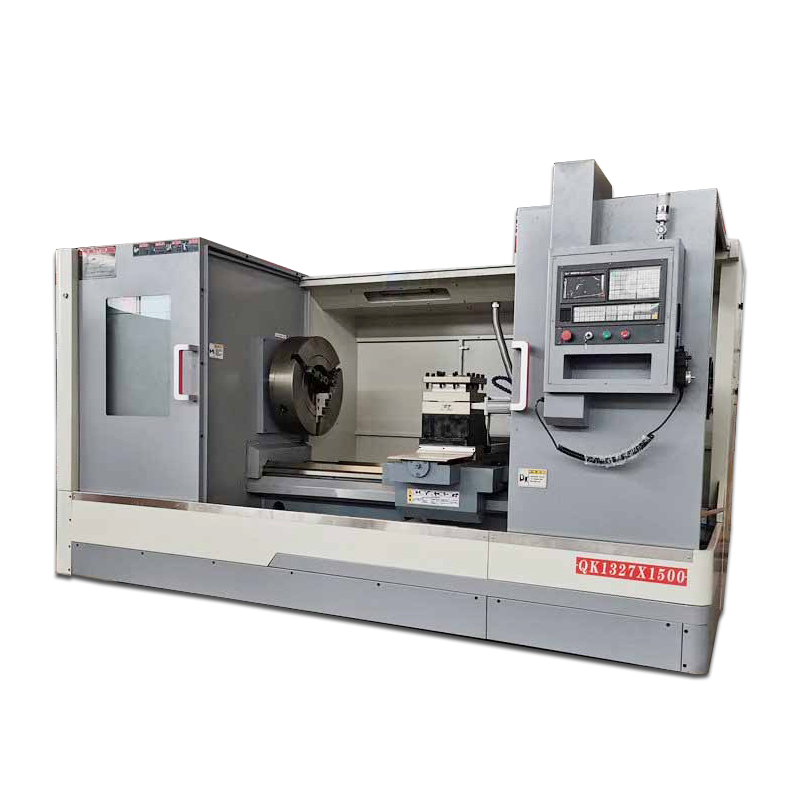

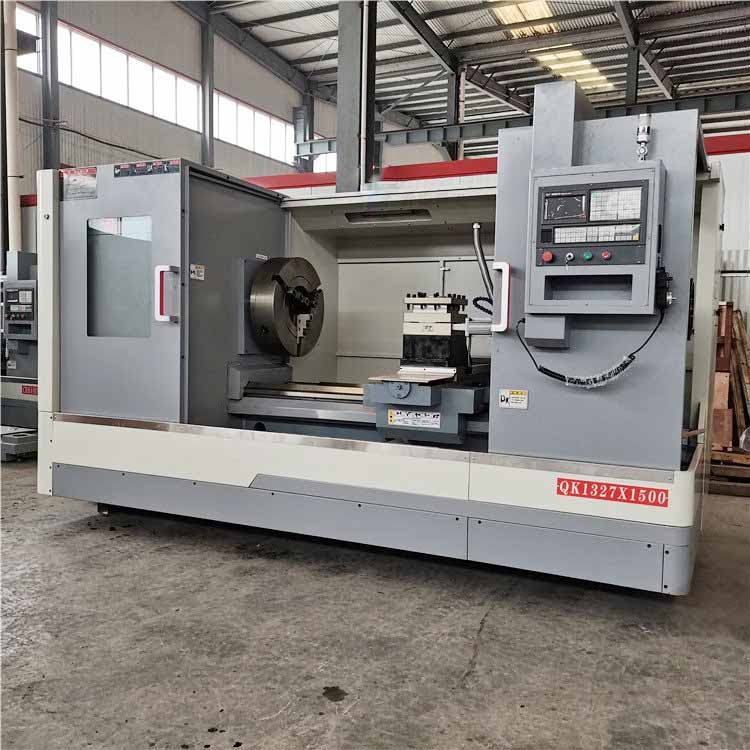

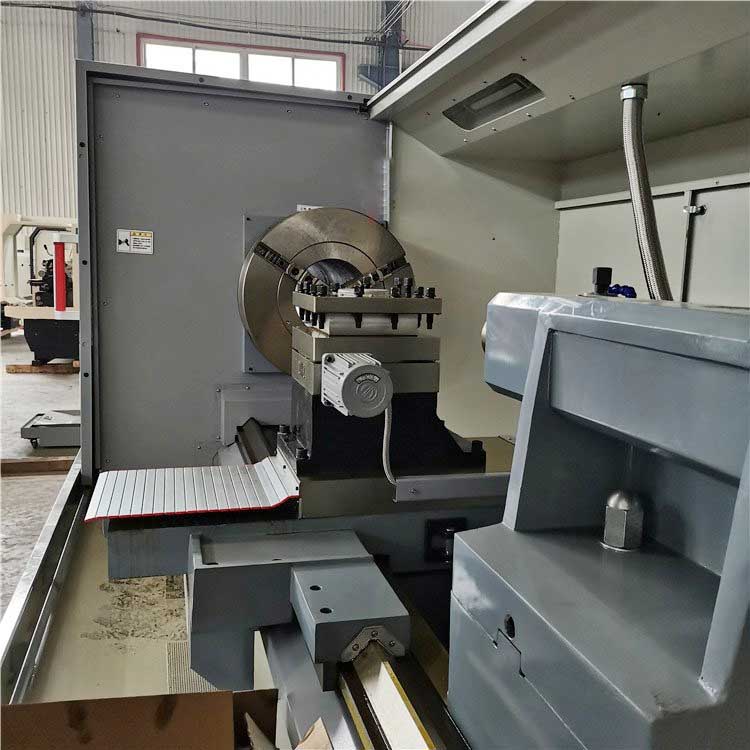

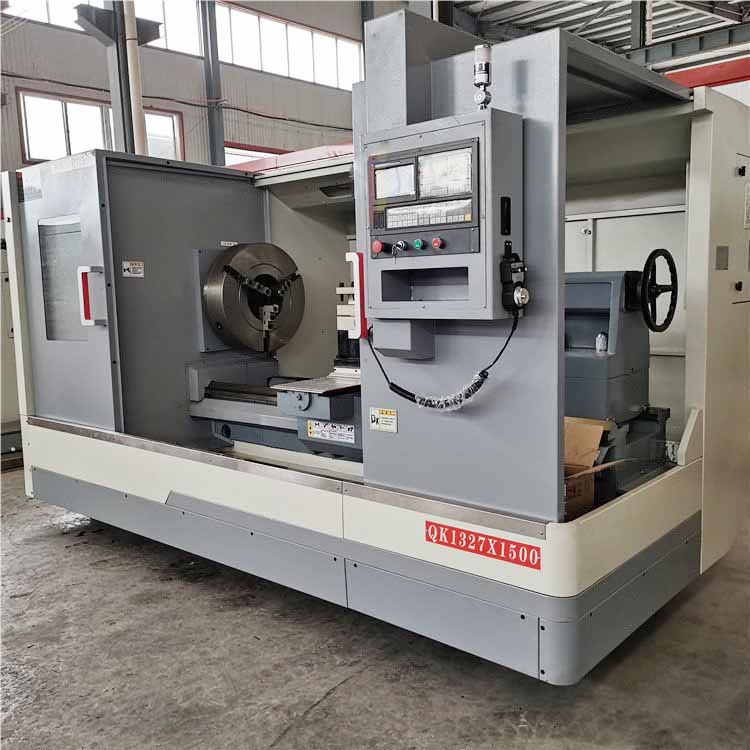

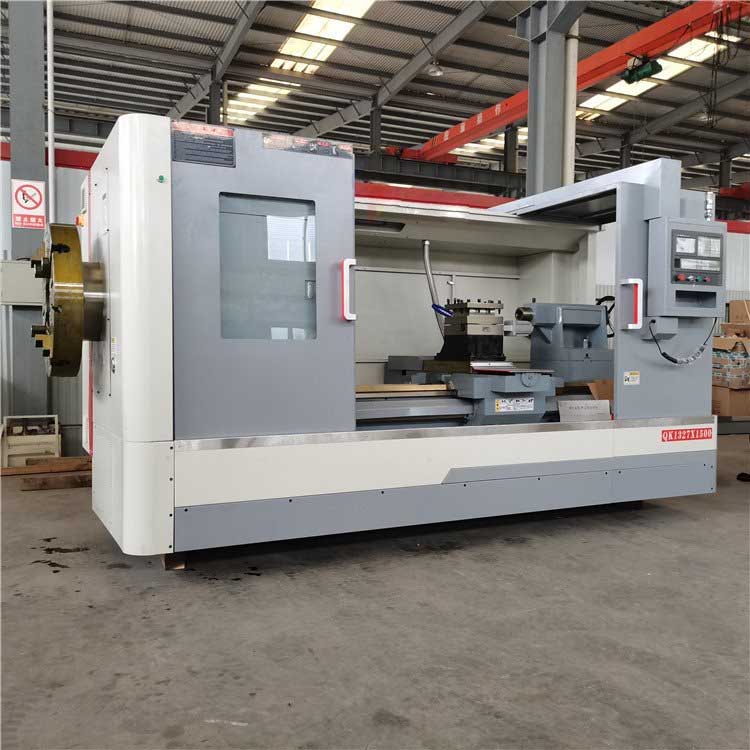

CNC Oil pipe lathe ALQK1327 CNC lathe
ALQK1327 CNC pipe thread lathe has excellent performance and advanced technology, and can play an outstanding role in the field of pipe thread processing.
Product Description
ALQK1327 CNC Oil pipe lathe has a wide range of processing applications in the machinery industry, and provides a reliable solution for the production of various pipe thread parts. CNC Oil pipe lathe can improve processing quality, reduce costs, increase production efficiency, and achieve greater business value and competitive advantage. Whether it is small batch production or mass production, ALQK1327 can provide you with excellent processing solutions.
Features of ALQK1327 cnc lathe pipe thread lathe machine:
1. Accurate and reliable: ALQK1327 cnc lathe pipe thread lathe machine adopts high-precision numerical control technology and stable structural design to ensure the best balance between processing accuracy and stability, making it perform well in complex pipe thread processing.
2. High efficiency and energy saving: CNC pipe threading lathe adopts advanced energy-saving technology to effectively reduce energy consumption. At the same time, it has the functions of fast positioning and high-speed cutting, which greatly improves the processing efficiency.
3. Flexible and diverse: ALQK1327cnc lathe pipe thread lathe machine has a variety of processing modes and functions, which can be quickly adjusted according to different needs, including turning, boring, tapping and other operations, providing users with flexible and diverse processing options.
4. Easy to operate: CNC pipe threading lathe is equipped with an intuitive and easy-to-understand CNC operation interface and an intelligent control system, which makes the operation easier and more convenient, and reduces the operator's technical requirements and learning costs.
ALQK1327 CNC pipe thread lathe parameters:
The application industry of ALQK1327 CNC Oil Lathe:
1. Oil pipe processing: ALQK1327 CNC Oil Lathe can precisely process oil pipe threads of various sizes to ensure the firmness and sealing of the connection and meet the needs of the oil industry for high-quality oil pipes.
2. Aircraft parts: CNC pipe threading lathe can be applied to the processing of aircraft parts, including threaded turbine components, aircraft seat thread adjustment devices, etc., to ensure high reliability and safety of aircraft.
3. Pipe connectors: ALQK1327 CNC turning machine can process the threads of various pipe connectors, such as pneumatic pipe fittings, hydraulic pipe fittings, etc., which are widely used in the connection of industrial pipeline systems and equipment.
4. Automation equipment: CNC Oil pipe lathe can be used to process threaded parts in automation equipment, such as robot parts, automatic assembly line connectors, etc., providing high-precision and high-efficiency processing solutions.
Video
ALQK1327 CNC pipe thread lathe parameters:
|
Content
|
Unit | ALQK1327 |
| Maximum turning diameter of bed | mm | Φ630 |
| Maximum turning diameter on the skateboard | mm | Φ380 |
| Maximum processing length | mm | 1500 |
| Maximum machining diameter | mm | Φ630 |
| Maximum bar diameter | mm | Φ350 |
| Spindle through hole diameter | mm | Φ270 |
| Sleeve diameter/stroke | mm | Φ100/250 |
ALQK1327 CNC pipe thread lathe optional configuration:
Automatic feeding device: realize automatic workpiece loading and unloading, and improve production efficiency.
Tool switching system: It allows automatic switching of different tools to realize multi-tool processing, reduce tool changing time and improve production efficiency.
Cooling system: Configuring the cooling system can effectively reduce the cutting temperature, improve cutting quality and tool life.
Hydraulic chuck: provide stronger workpiece clamping force to ensure the stability and machining accuracy of the workpiece.
Rotary tool post: It increases the cutting freedom of the lathe, and is suitable for the processing of complex curved surfaces and non-circular workpieces.
Automatic measurement system: realize the automatic measurement of the size of the processed parts, and improve the accuracy and consistency of processing.
Data monitoring system: real-time monitoring of data during processing, providing convenience for process parameter adjustment and troubleshooting.
Automatic workpiece clamping device: realize automatic workpiece clamping and loosening, improve production efficiency and operation convenience.
Vision system: Provides real-time images of workpiece shape and position to help operators monitor and adjust machining processes.
Automatic chip removal device: Automatically remove waste and chips generated during the cutting process to keep the work area clean.
Automatic lubrication system: realize automatic lubrication and maintenance, improve the reliability and life of equipment.
