cnc vertical machining center machinery manufacturing

The Vertical Machining Center is a highly automated, multifunctional CNC machine with a tool magazine and automatic tool changer.

Product Description

ALLES CNC Vertical Machining Center Operates CNC System

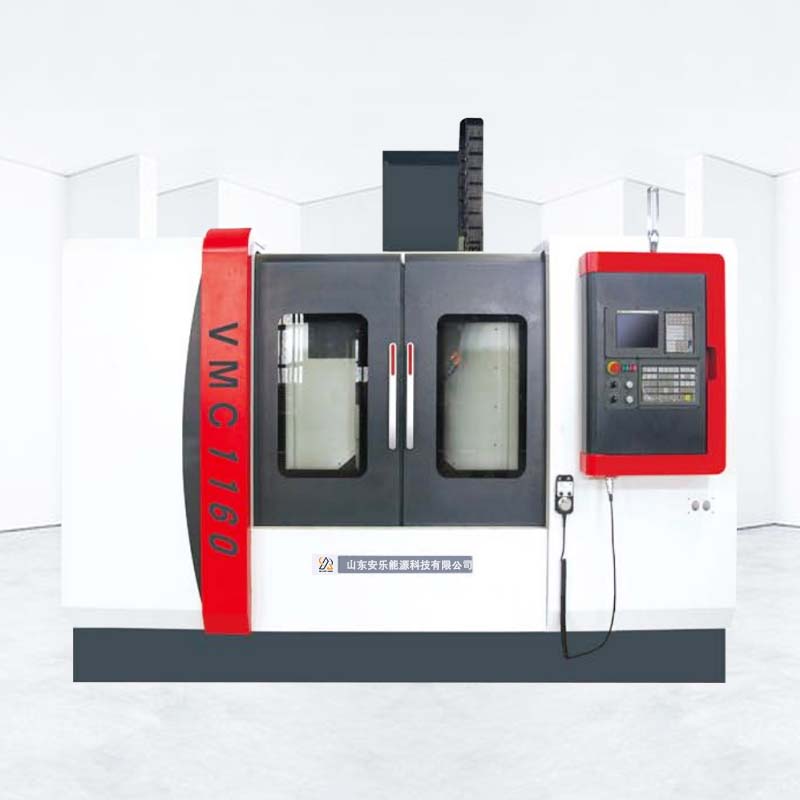

Product introduction of vertical machining center

CNC vertical machining center refers to a machining center in which the axis of the main shaft and the worktable are arranged vertically. Vertical machining centers can complete operations such as milling, boring, drilling, tapping and thread cutting. Vertical machining centers are at least three-axis and two-linkage, and generally can achieve three-axis three-linkage. Some can carry out five-axis, six-axis control.

Technical Parameters
Item	Sub-item	Unit	ALVMC1160
Worktable	Worktable size	mm	1200x600
	T-slot	mm	18x5x100
	Max. load	kg	800
Travel	X axis travel	mm	1100
	Y axis travel	mm	600
	Z axis travel	mm	600
Spindle	Spindle nose to worktable	mm	120-720
	Spindle center to coumn face	mm	670
	Spindle speed	rpm	8000
	Spindle drive		Belt drive
	Spindle head casing diameter	mm	φ150mm
ATC	ATC type		Arm type
	Tool capacity	pcs	24
	Max. tool dia	mm	Φ80（Φ130）
	Max. tool weight	kg	8
	Max. tool length	mm	300
	Battery capacity	kVA	25
Other	Air source pressure demand	kg/cm	6
	Cutting water tank capacity	L	200
	positioning accuracy	mm	0.01
	Re-positioning accuracy	mm	0.008
	Floor area and height	mm	300025002500
	Machine weight	kg	6500

3 Axis Vertical Machine Center Features

1. Environmental protection and no pollution. Because there will be no oil pollution and mist spray, the surrounding environment will not be polluted'

2. The oil supply is accurate. The oil can be delivered to the lubrication points such as the spindle and the lead screw according to different needs by adding a regulating valve;

3. There is no problem of difficult atomization of high-viscosity lubricating oil; it is suitable for any oil;

4. Automatic detection and monitoring. It can detect whether the lubricating oil is normal. If the lubrication is poor, it can alarm and stop to avoid the abnormal operation of the equipment.

5. It is especially suitable for the rolling bearing of the main shaft, which has a certain air cooling effect, which can reduce the operating temperature of the bearing, thereby prolonging the service life of the main shaft;

6. Low fuel consumption and cost saving.

Cnc Vertical Machining Center Application

In the field of machinery manufacturing, some parts have complex shapes, high machining accuracy requirements, and require many processes and tools (such as impellers, wind guide wheels, propellers, various surface forming molds and other workpiece products), which requires vertical The machining center processes such parts with good interchangeability, high precision and stable quality.
