Vertical Machining Center for Bearings

Vertical Machining Center The vertical machining center has a vertical structure with a vertical spindle (the axis of rotation of the cutting tool). The tool is mounted vertically and the workpiece is cut from the top surface. It is suitable for mold processing with large amount of top surface processing, many varieties and small batches.

Product Description

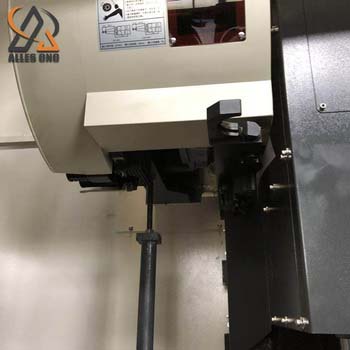

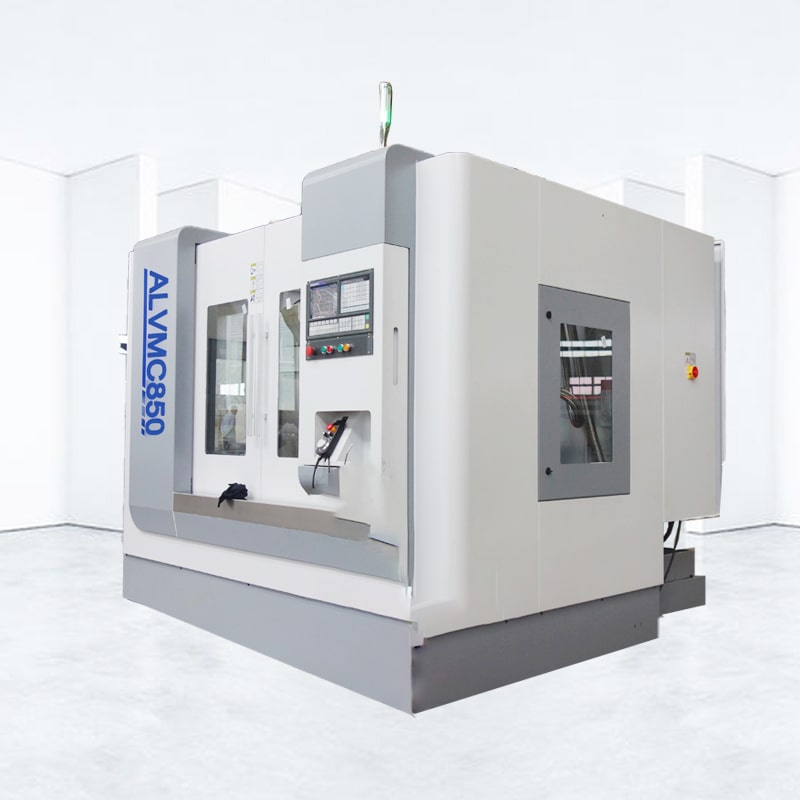

The ALVMC850 vertical machining center processes facial masks, from rough to precise. The belt-type 10000-rotation spindle, the Z-axis and Y-axis adopt 45mm Taiwan P-level linear guides, and the Z-axis roller six-slider support design. FANUC PLUS has AICC1 features

Cnc Vertical Machining CenterFeatures

(1)The X, Y and Z axis guide rails adopt linear guides, which have small dynamic and static friction, high sensitivity, low speed vibration, low speed and no creep, high positioning accuracy, excellent servo drive performance, and improved precision and precision of the machine tool.

(2)The X, Y and Z axis servo motors are directly connected with the high-precision ball screw through the elastic coupling, which reduces the intermediate link and realizes the gapless transmission. The feed is flexible, the positioning is accurate, and the transmission precision is high.

(3)The Z-axis servo motor has an automatic brake function. In the case of power failure, the motor brake can be automatically held by the brake to prevent it from rotating, which plays a role of safety protection.

Technical Parameters
Model	ALVMC850C
X axis	1000mm
Y axis	500mm
Z axis	500mm
Distance from spindle nose to table	100-600mm
Distance from spindle center to column	550mm
Worktable size	1000×500mm
Max. loading capacity	400kg
T-slot	5×18×90mm
Speed	8000rpm
Taper	BT40
Main motor power	5.5Kw
Rapid feed speed	20m/min
Cutting feed speed	10m/min
Positional accuracy	0.016mm
Repeated positional accuracy	0.006mm
X Y Z motor torque	10/10/15Nm
Weight	3800 Kg
Overall dimensions（L×W×H）	1900×2310×2300mm

3 Axis Vertical Machine Center Advantages:

1. The direction of the drawing and the workpiece is the same, so it is easy to have an intuitive understanding of what is being processed.

2. The spindle is at the top, which can save space and allow a larger processing area.

3. Low cost and simple structure.

4.Cutting oil (coolant) can be sprayed on the machined surface.

Cnc Vertical Machining Center Application

The cnc vertical machining center is suitable for processing complex parts such as plates, discs, molds and small shells. The vertical machining center can complete processes such as milling, boring, drilling, tapping and thread cutting.

Vertical Machining Center for Bearings
