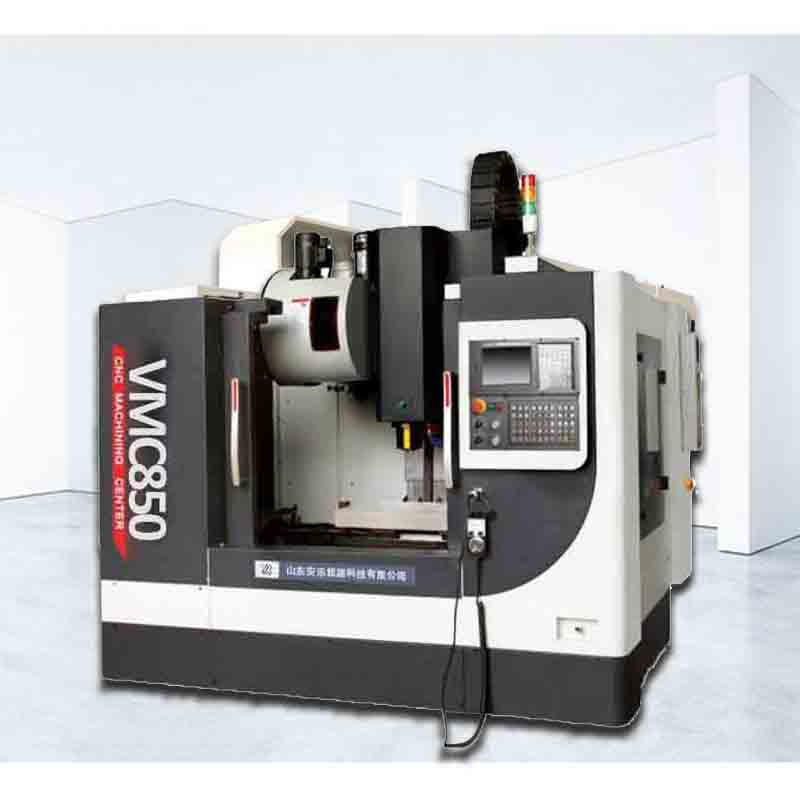

VMC850 cnc milling machine metal
Vertical machining center refers to a machining center with the axis of the main shaft and the worktable set perpendicular to it. VMC850 cnc milling machine metal is mainly suitable for processing complex parts such as plates, discs, molds and small shells.
Product Description
VMC850 cnc milling machine metal
product description:
Vertical machining center refers to a set of machining centers with a vertical spindle and a worktable, which are mainly suitable for processing complex parts of plates, plates, molds and small shells.
Video:
Video:
Product Specifications:
| Model | ALVMC850C |
| Travel | |
| X axis | 1000mm |
| Y axis | 500mm |
| Z axis | 500mm |
| Distance from spindle nose to table | 100-600mm |
| Distance from spindle center to column | 550mm |
| Worktable | |
| Worktable size | 1000×500mm |
| Max. loading capacity | 400kg |
| T-slot | 5×18×90mm |
| Spindle | |
| Speed | 8000rpm |
| Taper | BT40 |
| Main motor power | 5.5Kw |
| Feed | |
| Rapid feed speed | 20m/min |
| Cutting feed speed | 10m/min |
| Positional accuracy | 0.016mm |
| Repeated positional accuracy | 0.006mm |
| X Y Z motor torque | 10/10/15Nm |
| Machine | |
| Weight | 3800 Kg |
| Overall dimensions（L×W×H） | 1900×2310×2300mm |
Video:
