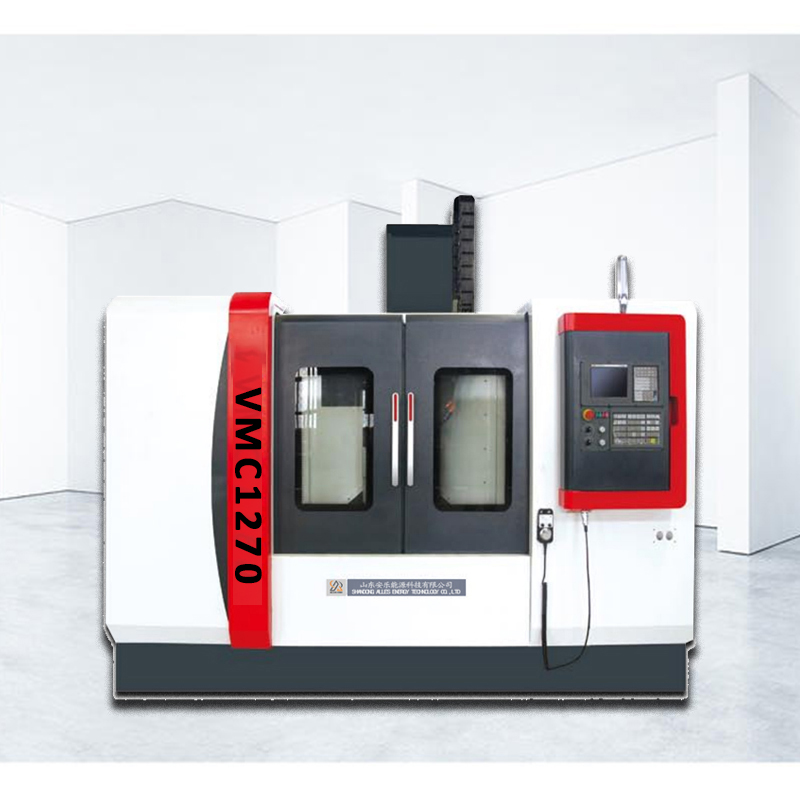

VMC1270 vertical cnc milling machine

Vertical machining center refers to the machining center with the main shaft in a vertical state. Its structure is mostly fixed columns, the worktable is rectangular, and there is no indexing and rotating function. It is suitable for processing discs, sleeves, and plate parts.

Product Description

VMC1270 vertical cnc milling machine

product description:

VMC1270 vertical machining center can realize various discs, plates, shells, molds, etc., suitable for auto parts, and can also be used for quality processing and manufacturing of small and medium batches, and it is more characteristic for complex and high-precision processing.

Video:

Product Specifications:

Model	ALVMC1270C
Travel
X axis	1200mm
Y axis	700mm
Z axis	700mm
Worktable
Worktable size	1200×700mm
Max. loading capacity	800kg
Spindle
Speed	8000rpm
Taper	BT40
Main motor power	11Kw
ATC
Tools type	Disc type
Number of tools	24
Tool change time	2.8s
Tool length max.	250mm

Product advantages:
1. The structure generally adopts a single-column type. Compared with the corresponding horizontal machining center, it has a simple structure, a small footprint and a lower price.
2. The workpiece is easy to clamp, and the workpiece can be clamped with common clamps such as flat-nose pliers, pressure plate, indexing head, rotary table, etc., and the clamping and positioning of the workpiece is convenient.
3. The tool movement trajectory is easy to observe, the debugging program is convenient to check and measure, and the problem can be found in time, and the shutdown processing or modification can be carried out.
