VMC1160 vertical cantilever cnc milling machine
VMC1160 vertical CNC machining center is suitable for producing metal product and parts in all shapes. It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and so on.
Product Description

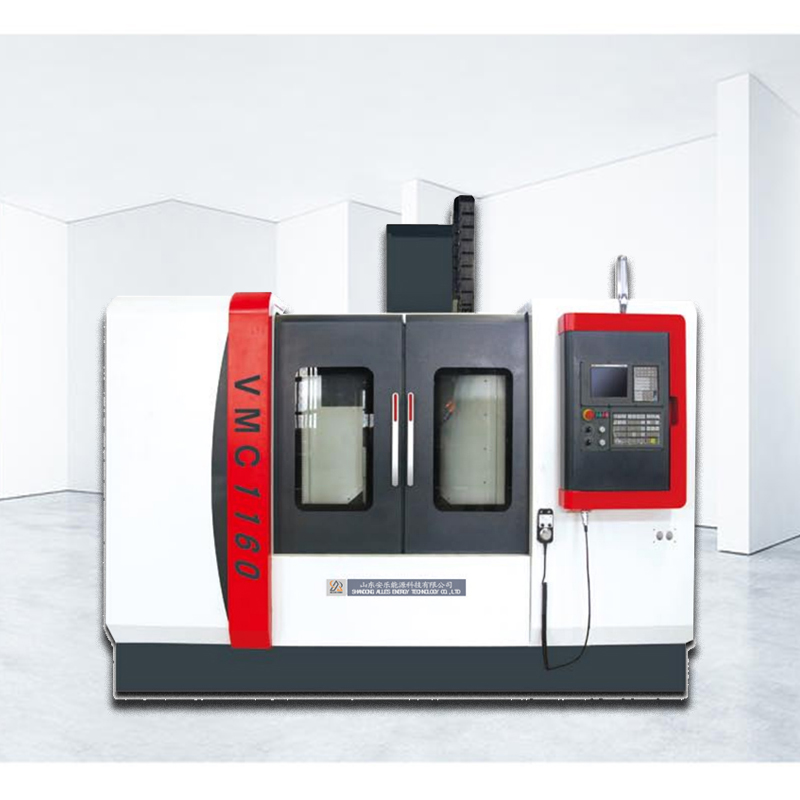

VMC1160 vertical cantilever cnc milling machine
Product description:
The CNC vertical machining center VMC1160 is equipped with a Siemens controller and a 24-station tool changer. Due to the compact design, a table size of 1200 x600 mm and the large travel distances, this model is ideal for machining small and medium-sized series in production, but also for the production of individual parts in mold .
Video:
Product Specifications:
| Model | ALVMC1160C |
| Travel | |
| X axis | 1100mm |
| Y axis | 600mm |
| Z axis | 600mm |
| Distance from spindle nose to table | 120-720mm |
| Distance from spindle center to column | 600mm |
| Worktable | |
| Worktable size | 1200×600mm |
| Max. loading capacity | 800kg |
| T-slot | 5×18×100mm |
| Spindle | |
| Speed | 8000rpm |
| Taper | BT40 |
| Main motor power | 11Kw |

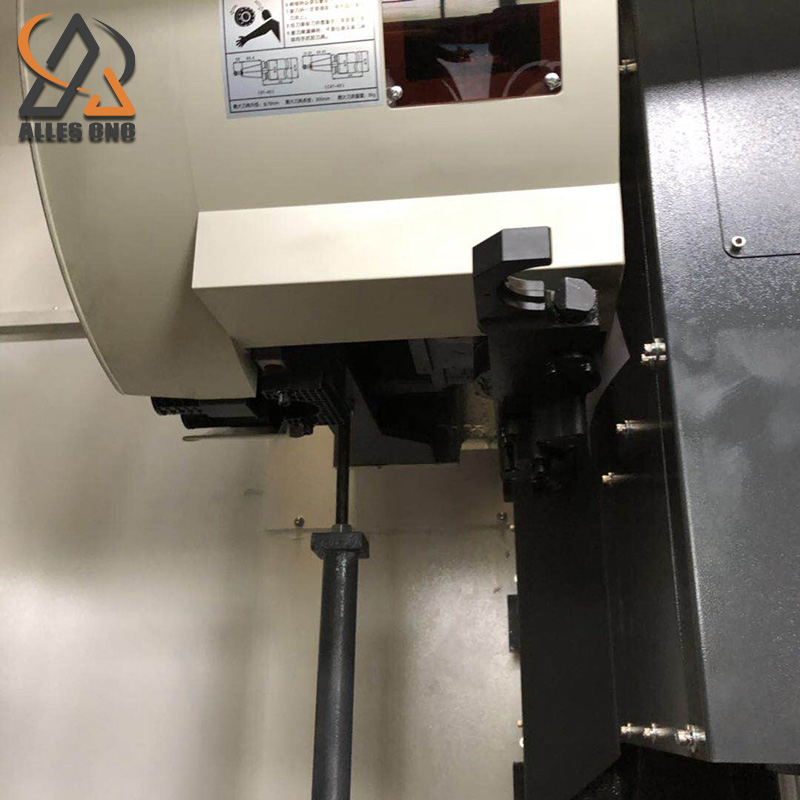

| ATC | |
| Tools type | Disc type |
| Number of tools | 24 |
| Tool change time | 2.8s |
| Tool length max. | 250mm |
| Tool weight max. | 8kg |
| Machine | |
| Weight | 7300 Kg |
| Overall dimensions（L×W×H） | 3200×2450×2650mm |
Product advantages:
1. Rigid machine tools should have both a low repair rate and a reliable manufacturing site.
2. It is very suitable for processing places where the spindle bearing box moves repeatedly at high speed.
3. The short throat, deep, high rigidity and compact structure with large torque equipment increases the productivity by more than 30%, and is suitable for light metal heavy load processing.
Video:
Video:
