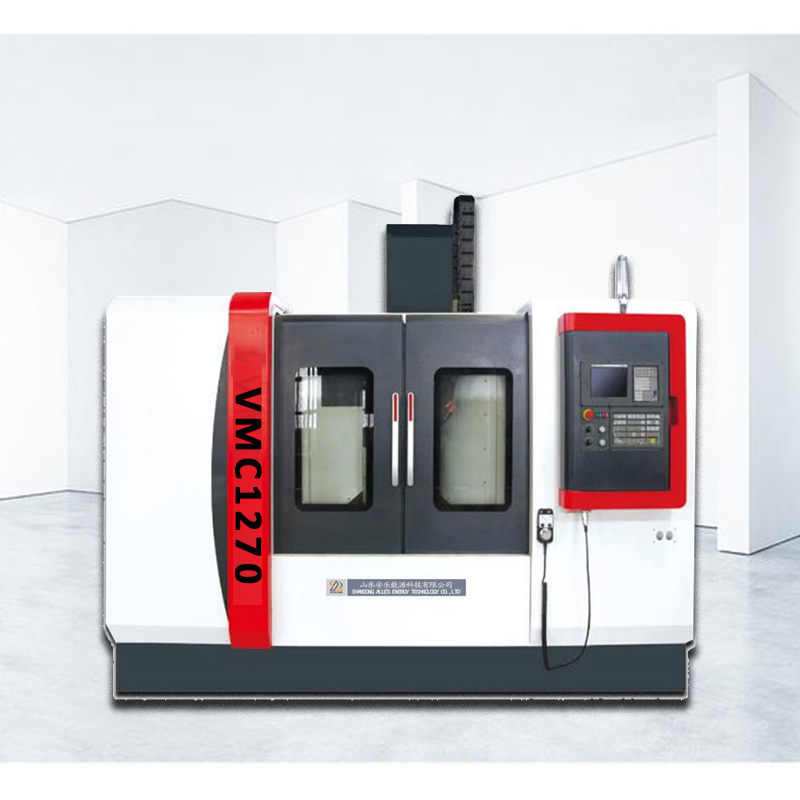

VMC1270 cnc milling machine metal

VMC1270 vertical machining center is suitable for producing metal product and parts in all shapes. VMC1270 cnc machining center is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and so on.

Product Description

VMC1270 cnc milling machine metal

Product description:

VMC1270 cnc milling center refers to a machining center with the axis of the main shaft and the worktable set perpendicular to it. VMC1270 vertical cnc milling machine is mainly suitable for processing complex parts such as plates, discs, molds and small shells. The vertical machining center can complete the processes of milling, boring, drilling, tapping and thread cutting.
Video:

Product Specifications:

Model	ALVMC1270C
Travel
X axis	1200mm
Y axis	700mm
Z axis	700mm
Worktable
Worktable size	1200×700mm
Max. loading capacity	800kg
Spindle
Speed	8000rpm
Taper	BT40
Main motor power	11Kw
ATC
Tools type	Disc type
Number of tools	24
Tool change time	2.8s
Tool length max.	250mm

Product advantages:

1. The overall design of the vertical processing equipment is beneficial for refrigeration, because the refrigerant is sprayed from top to bottom and can be sprayed immediately to the high-temperature workpiece and CNC blades during processing.

2. The structure of the vertical processing equipment is very simple. It is possible to observe the operation trajectory of the CNC blade. It is also convenient to adjust and observe and change the main parameters. It is also convenient to accurately measure the workpiece.

3. Compared with vertical processing equipment, the structure of vertical processing equipment is simpler, occupies a smaller area, and is cost-effective.
