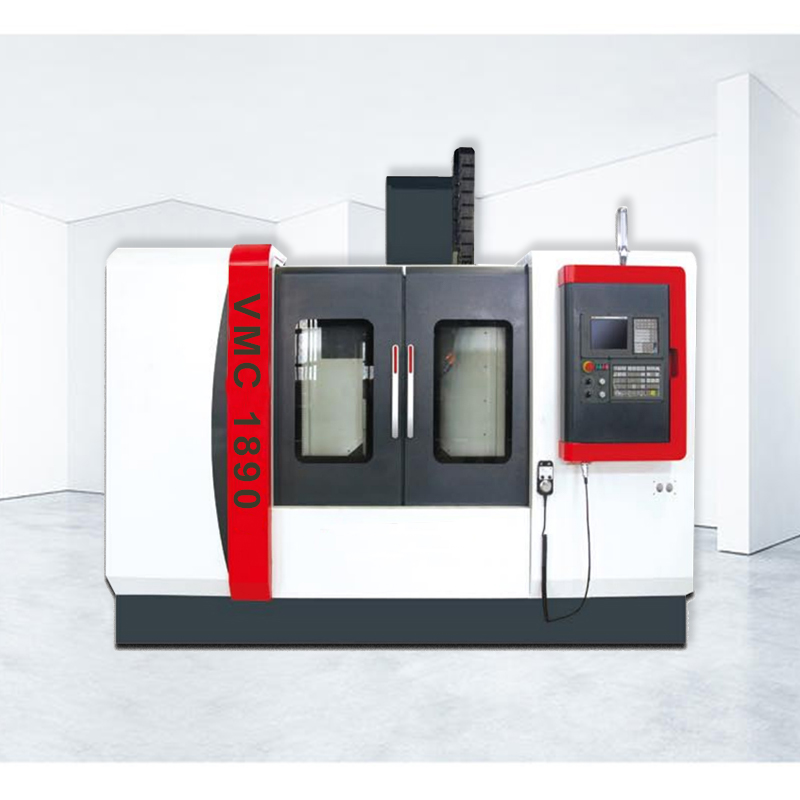

3 axis cnc milling machine VMC1890 cnc vertical machining center
CNC vertical machining center is an efficient automatic machine tool for complex parts, which is composed of mechanical equipment and numerical control system. 5 axis cnc machining center is used to process all kinds of box and board complex parts. Various high-precision machining centers can replace precision coordinate boring machines, and can also be used as a basis to form flexible manufacturing units and flexible manufacturing systems.
Product Description
China cnc milling machine VMC1890 can be used in the processing of various parts, such as engines, chassis, fuselage structures, circuit boards, artificial joints, implants, etc. 3 axis cnc milling machine has the advantages of high degree of automation, high precision, high efficiency, and strong reliability, which can help customers improve production efficiency and product quality
Product Specifications
Features of cnc vertical machining center VMC1890:
1. 3 axis cnc vertical machining center VMC1980 adopts high-precision linear guide rail, high-precision spindle and tool magazine, which can realize high-precision machining.
2. CNC machine center VMC1980 adopts automatic tool changing system and automatic feeding system, which can realize fast tool changing and feeding, and improve production efficiency.
3. 3 axis cnc vertical machining center VMC1980 has a variety of processing functions, including milling, drilling, boring, etc., which can meet different processing needs.
4. CNC machine center VMC1980 adopts man-machine interface operating system, the operation is simple and easy to understand, and the operator can get started quickly.
Video
Applications of VMC1890:
1. The cnc machining center is suitable for processing various electronic components, such as circuit boards of computers, mobile phones, and televisions, with high-precision and high-efficiency processing capabilities.
2. cnc milling machine for metal is suitable for processing parts and workpieces of various metal and non-metal materials, such as lathe spindles, milling machine tables, guide rails, etc.
3. The cnc machining center is suitable for processing artificial joints and implants in the medical device manufacturing industry.
4. cnc milling machine for metal is suitable for processing automobile engine parts, body parts, suspension system parts, etc., such as: engine, chassis, fuselage structure, circuit board, etc., and can realize mass production.
5. The cnc machining center is suitable for processing various molds, templates, models, etc., and can realize the processing of complex shapes
Video
Product Specifications
|
Model
|
VMC1890 |
| Three-axis travel (X / Y / Z) | 1800/900/800 mm |
| Distance from spindle centerline to column guide surface | 950 mm |
| Distance from spindle to table | 120-920 mm |
| Table size (length × width) | 2000×900 mm |
| Maximum load | 6000 kg |
| Spindle speed | 0~6000 rpm |
| Spindle motor power | 18.5kw |
| Fast moving speed (X / Y / Z axis) | 24/24/20m/min |
| Positioning accuracy (X / Y / Z) | 0.01mm |
| Repeated positioning accuracy (X / Y / Z) | 0.008mm |
