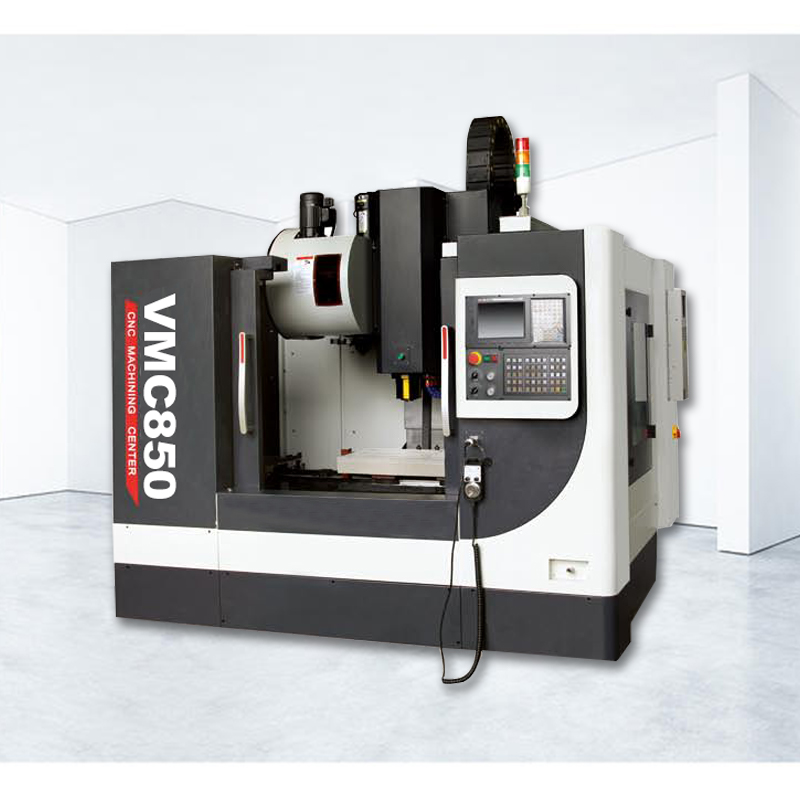

China CNC Milling Machine VMC850 3 Axis CNC Vertical Machining Center
CNC vertical machining center VMC850 is a high-performance processing equipment with the advantages of high precision, high speed, high automation and strong reliability. It has been widely used in aviation, automobile, electronics, machinery manufacturing and other fields
Product Description
3 axis cnc milling machine VMC1890 machining center can use high-speed tools and high-speed cutting parameters to realize high-speed milling and improve processing efficiency and surface quality. CNC vertical machining center VMC1890 can process holes with boring tools, including drilling, reaming, boring, etc., to achieve high-precision hole processing.
Video
Product Specifications
Features of cnc vertical machining center VMC850:
1. CNC vertical machining center 3 axis cnc milling machine VMC850 adopts high-precision linear guide rails and ball screws, which can realize high-precision machining operations and meet the requirements of the manufacturing industry for parts precision.
2. VMC850 is equipped with high-speed electric spindle, the maximum speed can reach 12000 rpm, and the processing efficiency is high.
3.3 axis cnc milling machine VMC850 adopts numerical control system to control the machining process, which can realize automatic machining operation, improve production efficiency and reduce labor cost.
4. CNC vertical machining center VMC850 adopts high-quality machine tool castings and high-quality core components, with stable performance and long life.
Applications of VMC850:
VMC850 3 axis CNC milling machine is widely used in aerospace, automobile manufacturing, electronic communication, optoelectronic instruments, precision machinery and other machinery manufacturing industries. China cnc milling machine can realize a variety of processing techniques to meet the processing needs of different workpieces.
Video
Product Specifications
|
Model
|
ALVMC850 |
| X axis | 1000mm |
| Y axis | 500mm |
| Z axis | 500mm |
| Distance from spindle center to column | 550mm |
| Max. loading capacity | 400kg |
| Speed | 8000rpm |
| Taper | BT40 |
| Main motor power | 5.5Kw |
| Weight | 3800 Kg |
| Overall dimensions（L×W×H） | 1900×2310×2300mm |
