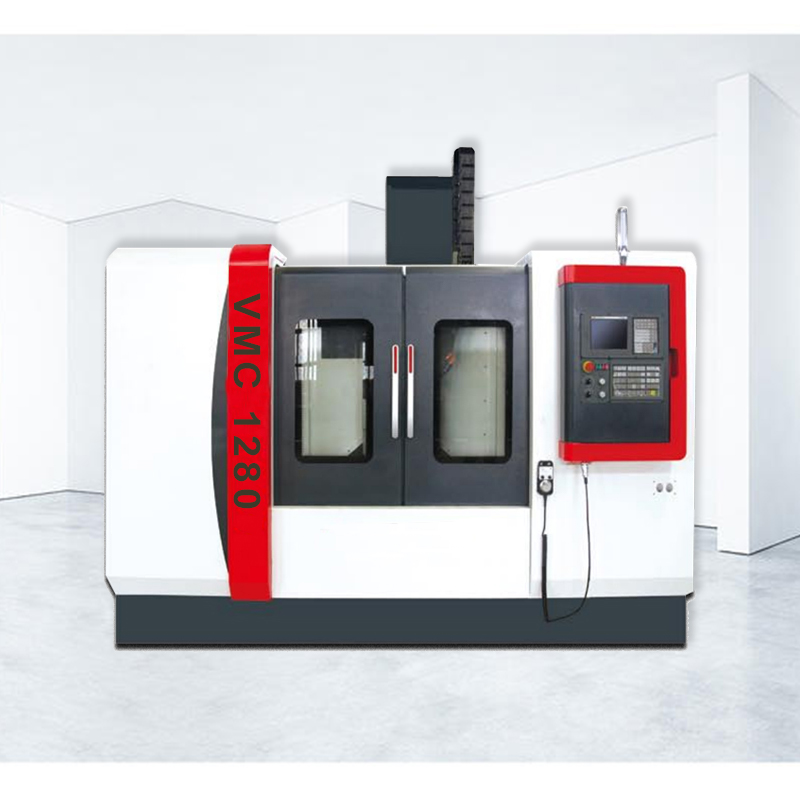

3 axis cnc vertical machining center VMC1280 china cnc milling machine

In the machinery manufacturing industry, VMC1280 can be widely used in the processing of various parts, and can process various bearing seats, flanges, brackets, positioning holes, threaded holes, inner holes, precision holes, and threaded holes.

Product Description

3 axis cnc vertical machining center equipment adopts imported high-precision linear guide rail and high-precision ball screw, which can realize high-speed, high-precision and high-efficiency machining. 3 axis cnc milling machine VMC1270 can complete milling, drilling, tapping, reaming and other processing tasks, and is suitable for processing various materials, such as aluminum alloy, titanium alloy, stainless steel, copper, etc.

Features of CNC milling machine VMC1280:

1. High-precision processing: cnc milling machine 5 axis VMC1280 adopts advanced numerical control technology and high-precision sensors, which can realize 2. precise processing and ensure that the size and quality of the workpiece meet the requirements.

3. Efficient processing: China cnc milling machine is equipped with a fast tool change system and high-speed spindle, with fast processing speed and high production efficiency, suitable for mass production and large-scale processing.

4. Multifunctional processing: cnc milling machine 5 axis VMC1280 can perform drilling, milling, boring, tapping and other processing operations to meet the processing needs of different workpieces.

5. Strong stability: China cnc milling machine has a solid structure, good rigidity, strong shock resistance and stability, ensuring that vibration and deformation are not easy to occur during processing.

Application fields of CNC vertical machining center:

1. Automobile manufacturing: cnc milling machine for metal is used to process auto parts, such as engine block, crankshaft, bearing housing, etc.

2. Aerospace industry: China cnc milling machine is used to manufacture parts of aircraft, missiles, spacecraft, etc., such as wings and fuselages.

3. Electronic and electrical industry: cnc milling machine for metal is suitable for processing electronic components, circuit boards, etc.

4. General machinery manufacturing: China cnc milling machine can be used to produce parts of various mechanical equipment, such as machine tools, textile machinery, agricultural machinery, etc.

5. Plastic mold industry: cnc milling machine for metal is used to manufacture plastic injection molds, die-casting molds, etc.

Video

Optional configuration of machining center VMC1280:

1. Spindle type:

High-speed spindle: It is suitable for fast processing and improves production efficiency.

High-torque spindle: for heavy cutting and difficult-to-machine materials, increasing the processing range.

Water-cooled spindle: It can reduce the temperature of the spindle and improve the stability and life.

2. Control system:

Common options include Siemens, Fanuc, Mitsubishi, etc., providing different operation interfaces and functions, which can be selected according to user habits and needs.

3. Automatic tool change system:

Tool magazine capacity: The capacity of the tool magazine can be selected according to the processing needs, and the common capacities are 12, 20, 24, etc.

Tool type: Standard tools or special tools can be configured for different processing tasks.

Machine size and stroke:

Processing table size: processing tables of different sizes can meet the processing requirements of different workpieces, the common ones are 800x400mm, 1000x500mm, etc.

X/Y/Z axis stroke: the larger the stroke, the larger the workpiece can be processed.

4. Automatic workpiece measurement system:

Probe measurement: It is used to automatically measure the size and position of the workpiece to realize the automation and high precision of processing.

Vision measurement system: It can be used for workpiece measurement and shape inspection of complex contours.

5. Cooling system:

Internal cooling system: used to cool the tool and processing area to prevent overheating during processing.

Throttle Cooling System: Can be used to optimize cooling flow and reduce energy consumption.

6. Automatic loading/unloading system:

Automatic feeding system: It can realize automatic loading and unloading, improve production efficiency and reduce operating costs.

Manipulator/robot: used for automatic parts loading and unloading to realize unmanned production.

7. Machining lubrication system:

Central lubrication system: used for the lubrication and maintenance of the machine tool to prolong the life of the machine tool.

Air Jet Cooling System: Used to clean the machining area and prevent chip accumulation.

8. Feed servo system:

Advanced feed servo system: It can provide higher processing speed and precision, and is suitable for high-demand processing tasks.

9. Environmental protection equipment:

Chip processing device: used to automatically handle chips generated during the machining process to keep the workshop tidy.

Haze purification equipment: used to filter and purify oil mist and dust generated during processing to protect the working environment.

Product Specifications

Unit	Parameter	Remark
3axis travel (X / Y / Z)	mm	1200/800/800
Distance from spindle centerline to column guide surface	mm	550
Table size (length × width)	mm	1300×800
Maximum load	kg	800
Spindle speed	rpm	0~8000
Spindle motor power	kW	11
Maximum tool diameter (no adjacent tool)	mm	120
Maximum drilling diameter (for normalizing medium carbon steel)	mm	25
Maximum tapping diameter (for normalizing medium carbon steel)	mm	M20
Machine Dimensions (L × W × H)	mm	2620×2300×2500
Machine weight	kg	6500
