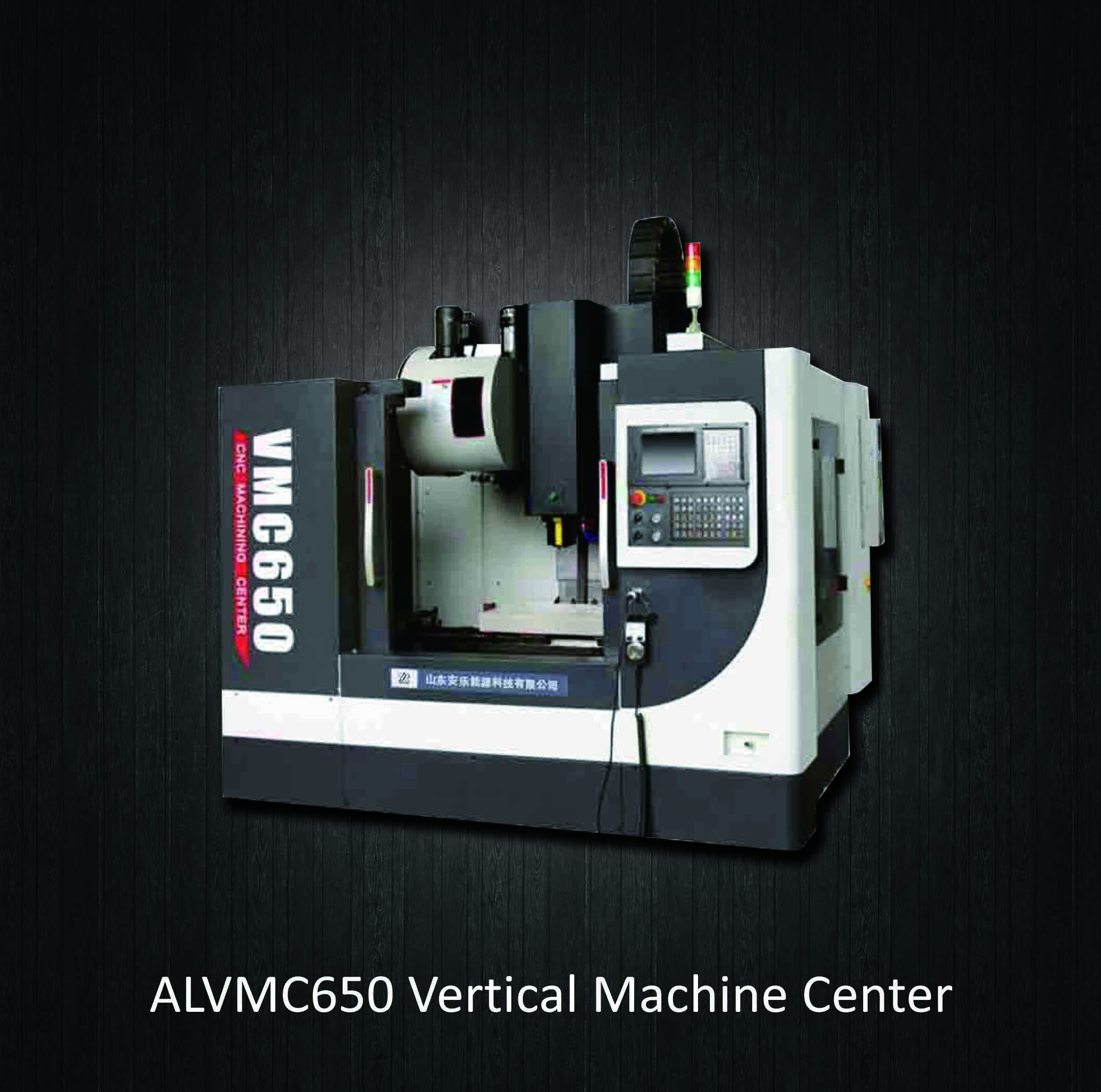

3 Axis Cnc Milling Vertical Machining center vmc650

Cnc 3 Axis Milling Vertical Machining center vmc650

---

CNC machining centers are widely used in various industries. You can choose different models of machines according to your workpieces, and choose different configurations according to processing needs.

---

Advantages of Vertical machine center VMC650：

1.High Precision Hard guideway and screw.

Cnc 3 Axis Milling Vertical Machining center vmc650 Specifications:

Model	ALVMC650
Travel
X axis	600mm
Y axis	500mm
Z axis	500mm
Distance from spindle nose to table	100-600mm
Distance from spindle center to column	550mm
Worktable
Worktable size	800×500mm
Max. loading capacity	400kg
T-slot	5×18×90mm
Spindle
Speed	8000rpm
Taper	BT40
Main motor power	5.5Kw
Feed
Rapid feed speed	20m/min
Cutting feed speed	10m/min
Positional accuracy	0.016mm
Repeated positional accuracy	0.006mm
X Y Z motor torque	10/10/15Nm
Tool magazine
Tools No.	16
Max. tool length	250mm
Machine
Weight	3800 Kg
Overall dimensions（L×W×H）	1900×2310×2300mm

---

Cnc 3 Axis Milling Vertical Machining center vmc650 application:

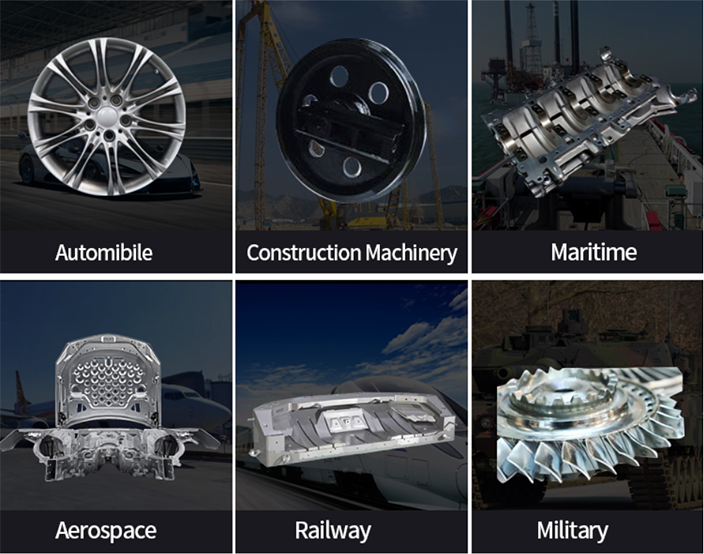

The vertical machining center machine should be suitable for processing complex parts such as plates, discs, molds and small shells. The vertical machining center can complete processes such as milling, boring, drilling, tapping and thread cutting.
By using a vertical machining center, we can achieve the following effects:
1. Shorten the entire processing process
A very important function of the vertical machining center is that it can shorten the entire processing process, and it can simplify the traditional processes, which will save a lot of money when the entire processing is completed.
2. Improve the efficiency of processing
In addition, it can better improve the overall processing power, and it can convert the processing and manufacturing of some complex workpieces into mechanized operations, which can simplify the process between them and make the entire processing process change. get smoother.
