3 Axis Machining Centre VMC1160 CNC Controller Machining Center
Vertical machining centers are particularly versatile and convenient to use. They are widely used in all industries and are the most widely used machine tools in the world!
Product Description

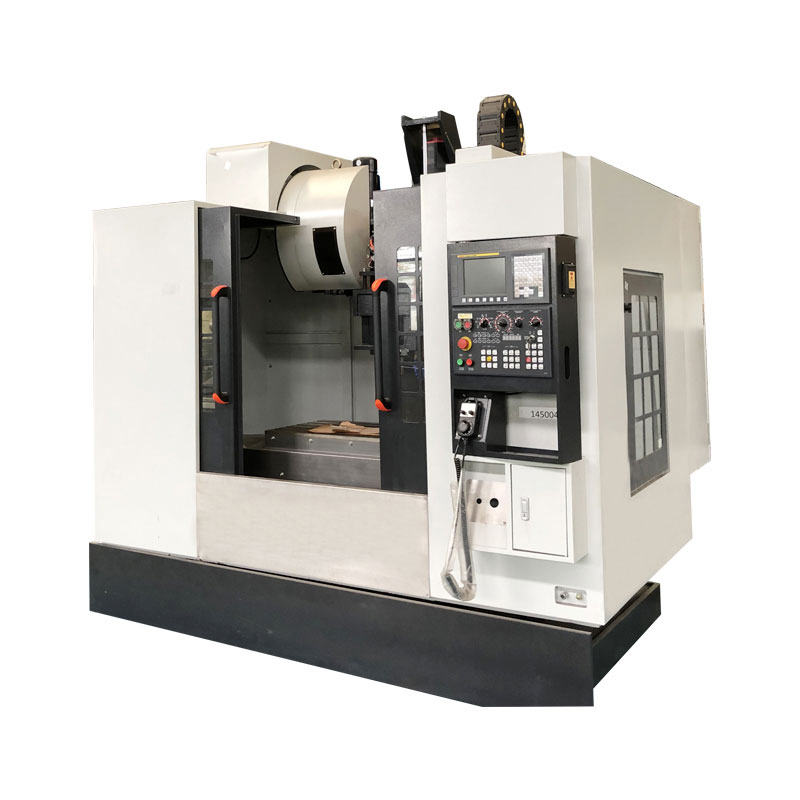

3 Axis Machining Centre VMC1160 CNC Controller Machining Center
A vertical machining center has a vertical structure with a vertical spindle (the axis of rotation of the cutting tool). The cutter is mounted vertically and the workpiece is cut from the top.
3 Axis Machining Centre VMC1160 is suitable for mold processing that requires a large amount of top surface processing, as well as multi-variety and small batch production.
At present, the most commonly used vertical machining center is a three-axis machining center, which performs three-axis machining based on X, Y and Z axes, which can be divided into table-driven and spindle-driven types.
Vertical machining center refers to a machining center vertically set between the spindle shaft and the workbench, and is mainly used for processing plates, plates, molds and small shell complex parts.
3 Advantages of Axis Machining Centre VMC1160:
1- The vertical machining center has the characteristics of compact structure, small footprint, strong frame rigidity, fast moving speed and high processing efficiency.
2-Strict structural design and precise manufacturing, the product guarantees a very high cost performance.
3- The standard configuration is high torque belt drive spindle and high-speed direct drive spindle, which can respectively meet the processing requirements of parts and mold markets.
3 Axis Machining Centre VMC1160 Specifications:
| Model | ALVMC1160 |
| Travel | |
| X axis | 1100mm |
| Y axis | 600mm |
| Z axis | 600mm |
| Distance from spindle nose to table | 120-720mm |
| Distance from spindle center to column | 600mm |
| Worktable | |
| Worktable size | 1200×600mm |
| Max. loading capacity | 800kg |
| T-slot | 5×18×100mm |
| Spindle | |
| Speed | 8000rpm |
| Taper | BT40 |
| Main motor power | 11Kw |
| ATC | |
| Tools type | Disc type |
| Number of tools | 24 |
| Tool change time | 2.8s |
| Tool length max. | 250mm |
| Tool weight max. | 8kg |
| Machine | |
| Weight | 7300 Kg |
| Overall dimensions（L×W×H） | 3200×2450×2650mm |
