VMC1160 3 axis metal milling machine

Vertical machining center refers to a machining center with the axis of the main shaft and the worktable set perpendicular to it. It is mainly suitable for processing complex parts such as plates, discs, molds and small shells.

Product Description

VMC1160 3 axis metal milling machine

product description:

The machining center has powerful functions. It integrates the functions of milling, grinding, hole-turning and tapping. It is a relatively comprehensive CNC machine tool product. It can be said that you can use the machining center to make any hardware products and mold products.

Video:

Product Specifications:

Model	ALVMC1160C
Travel
X axis	1100mm
Y axis	600mm
Z axis	600mm
Distance from spindle nose to table	120-720mm
Distance from spindle center to column	600mm
Worktable
Worktable size	1200×600mm
Max. loading capacity	800kg
T-slot	5×18×100mm
Spindle
Speed	8000rpm
Taper	BT40
Main motor power	11Kw

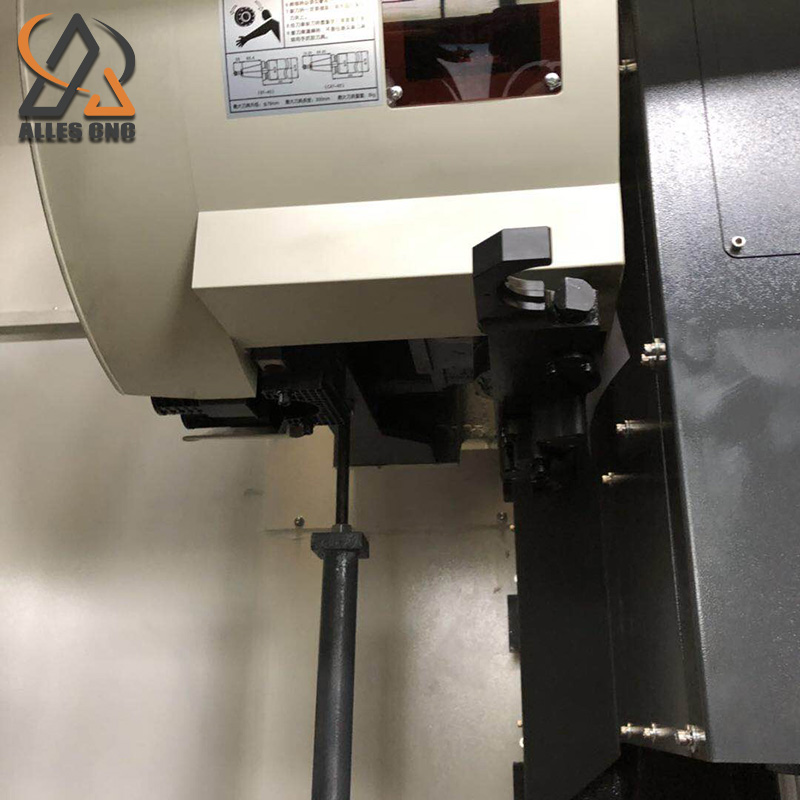

ATC
Tools type	Disc type
Number of tools	24
Tool change time	2.8s
Tool length max.	250mm
Tool weight max.	8kg
Machine
Weight	7300 Kg
Overall dimensions（L×W×H）	3200×2450×2650mm

Product advantages:

1. The vertical machining center runs stably, safely and efficiently, with less manpower output.

2. The products produced are smooth and textured, with good dimensional accuracy.

3. The transmission chain is short, and the traditional components such as hanging wheel and clutch are no longer used, and the transmission chain is greatly shortened.

4. High rigidity to meet high-precision machining requirements.

5. The lubricating part adopts oil mist automatic lubrication, these measures make the CNC machine tool easy to move.
