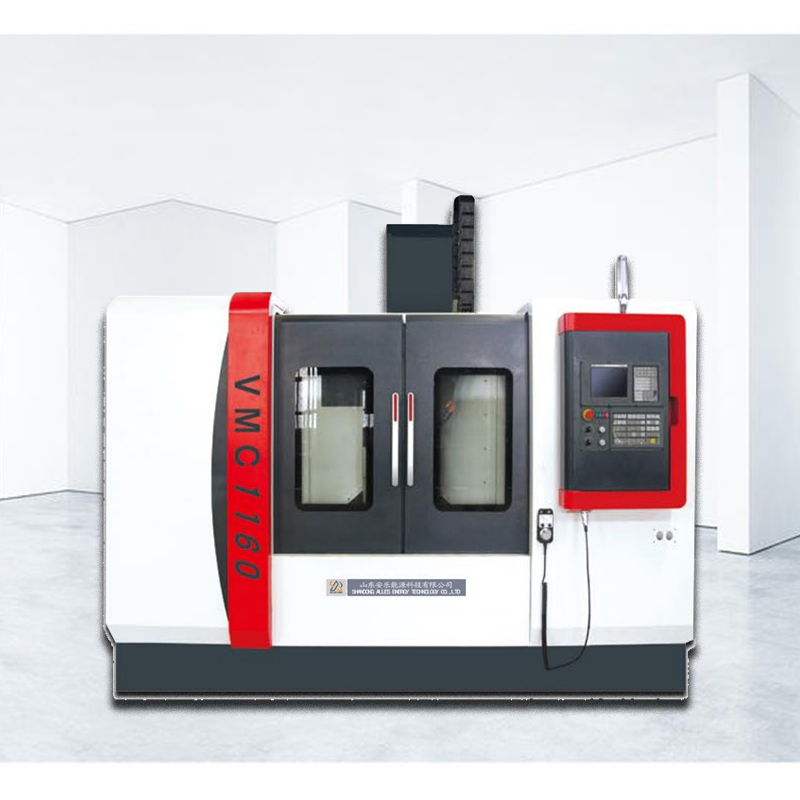

VMC1160 CNC Milling Machine Metal

The CNC vertical machining center VMC1160 is equipped with a Siemens controller and a 24-station tool changer. Due to the compact design, a table size of 1200 x600 mm and the large travel distances, this model is ideal for machining small and medium-sized series in production, but also for the production of individual parts in mold.

Product Description

VMC1160 CNC Milling Machine Metal

Product description:

VMC1160 cnc milling 3 axis is a vertical machining center suitable for machining and mold manufacturing. VMC1160 cnc milling machine 4 axis can adapt to the processing requirements from roughing to finishing, and can complete various processes such as milling, drilling, tapping, and boring.
Video:

Product Specifications:

Model	ALVMC1160C
Travel
X axis	1100mm
Y axis	600mm
Z axis	600mm
Distance from spindle nose to table	120-720mm
Distance from spindle center to column	600mm
Worktable
Worktable size	1200×600mm
Max. loading capacity	800kg
T-slot	5×18×100mm
Spindle
Speed	8000rpm
Taper	BT40
Main motor power	11Kw
ATC
Tools type	Disc type
Number of tools	24
Tool change time	2.8s
Tool length max.	250mm
Tool weight max.	8kg
Machine
Weight	7300 Kg
Overall dimensions（L×W×H）	3200×2450×2650mm

Product advantages:

1. The fuselage and main components are made of high-strength cast iron, with stable metallographic structure to ensure the long-term stability of the machine tool;

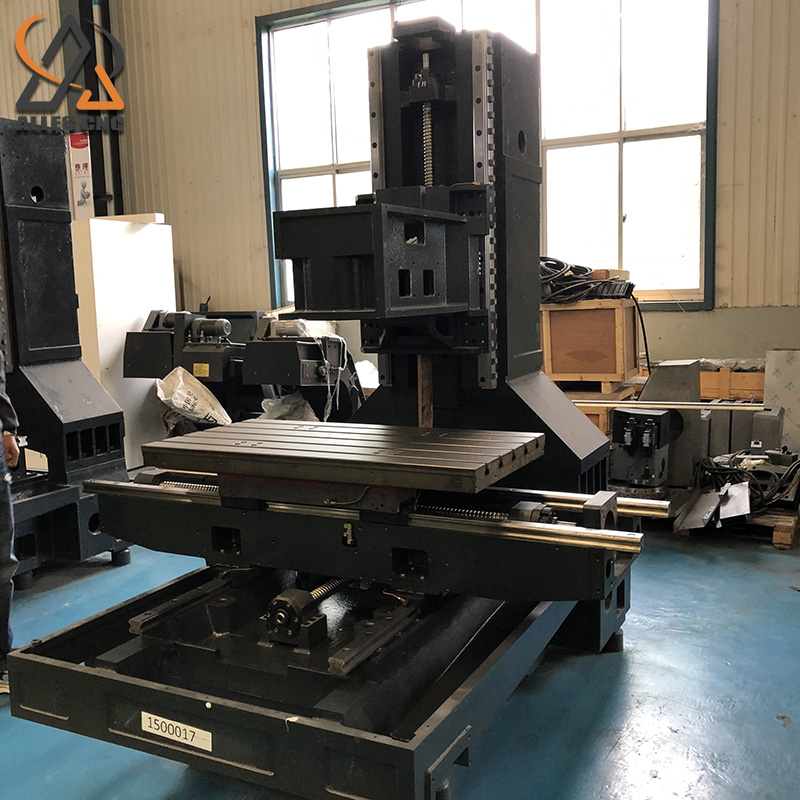

2. The bottom of the column is a "herringbone"-shaped bridge-span structure, combined with the large box base, which greatly reduces the vibration of the machine body during heavy cutting;

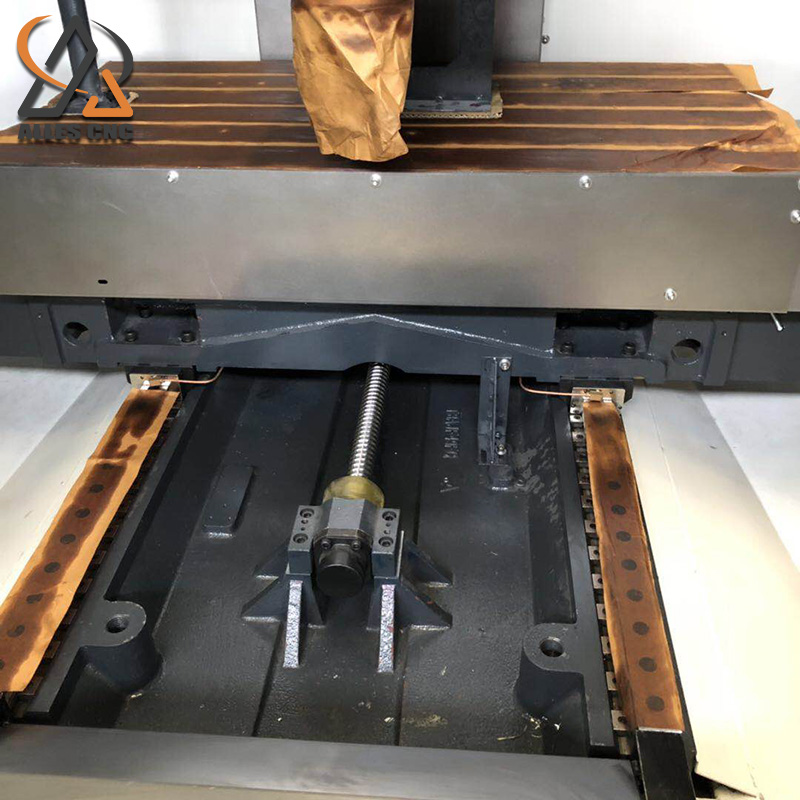

4. The surface of the guide rail is treated with plastic, which has low friction and wear resistance;

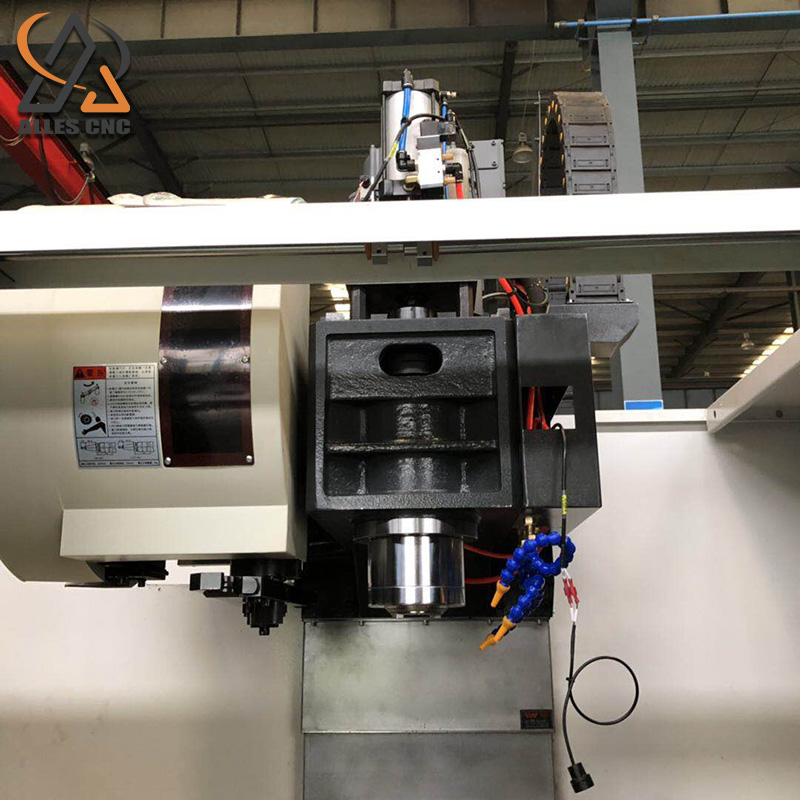

5. High-speed, high-precision, high-rigidity spindle unit.
