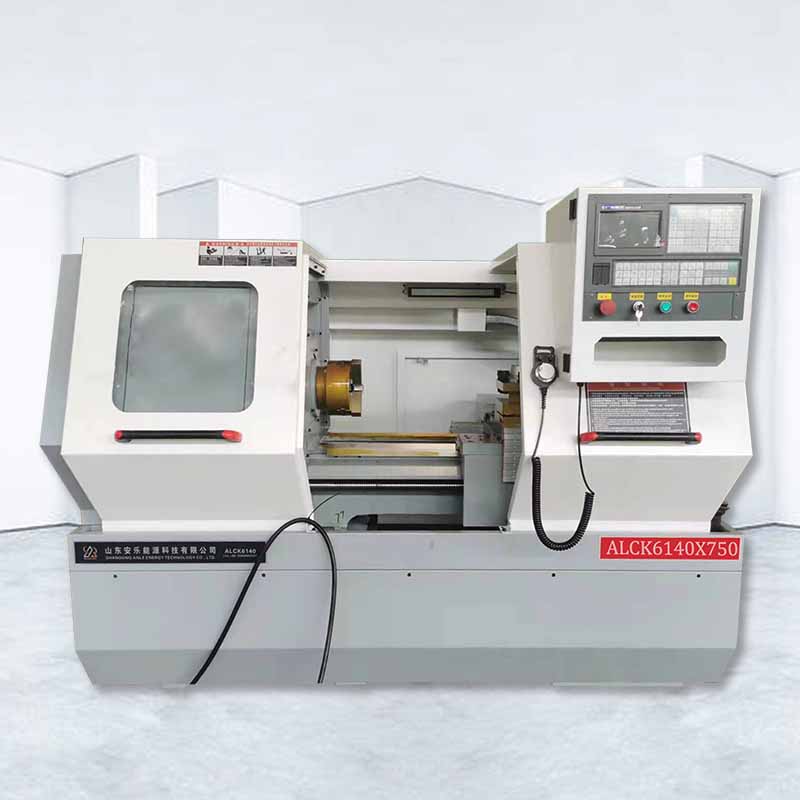

Model | ALCK6140x750 | |
---|---|---|
Processing capacity | Maximum turning diameter of bed | 400mm |
Maximum turning diameter on the tool post | 220mm | |
Center distance | 750mm | |
Rail width | 360mm | |
X stroke | 250mm | |
Z-stroke | 900mm | |
Headstock |
Spindle speed range
(number of stages)
|
52mm |
Spindle speed range | Gear two-speed 50-1600rpm/single axis 2200rpm (optional) | |
Tailstock | Diameter of tailstock sleeve | 65mm |
Maximum stroke of tailstock sleeve | 120mm | |
PACKING(L*W*H) | 2350x1400x1800mm | |
WEIGHT(N.W/G.W) | 1550/1650kg |

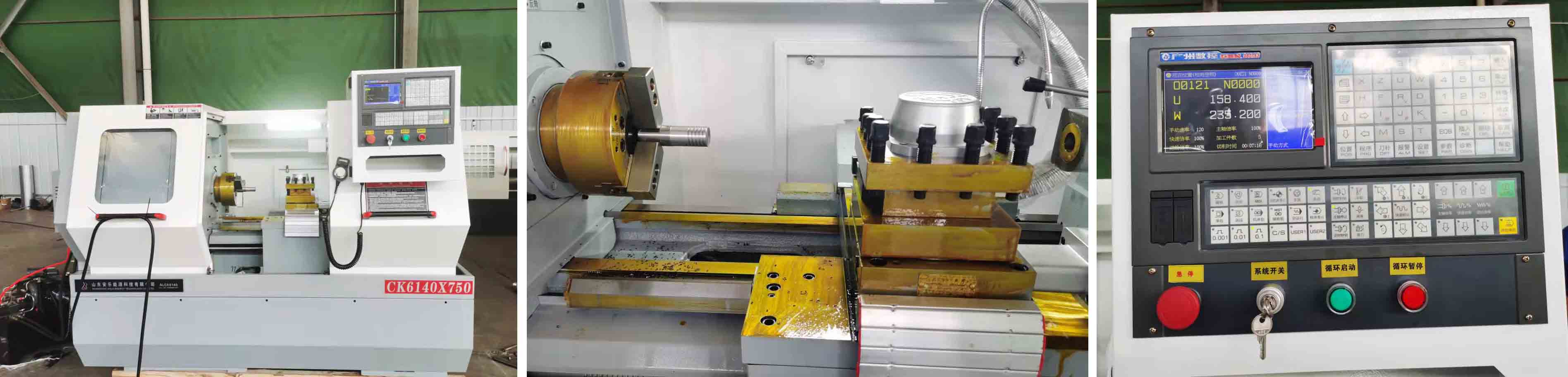

Cnc Metal Lathe Machine is mainly used for cutting inner and outer cylindrical surfaces of shaft parts or disc parts, inner and outer conical surfaces of arbitrary taper angles, complex rotating inner and outer surfaces, and cylindrical and conical threads, etc., and can perform grooving, drilling, expanding Hole, reaming and boring etc. Cnc Metal Lathe Machine has integral cast iron, servo drive, high rigidity, strong stability and small footprint.

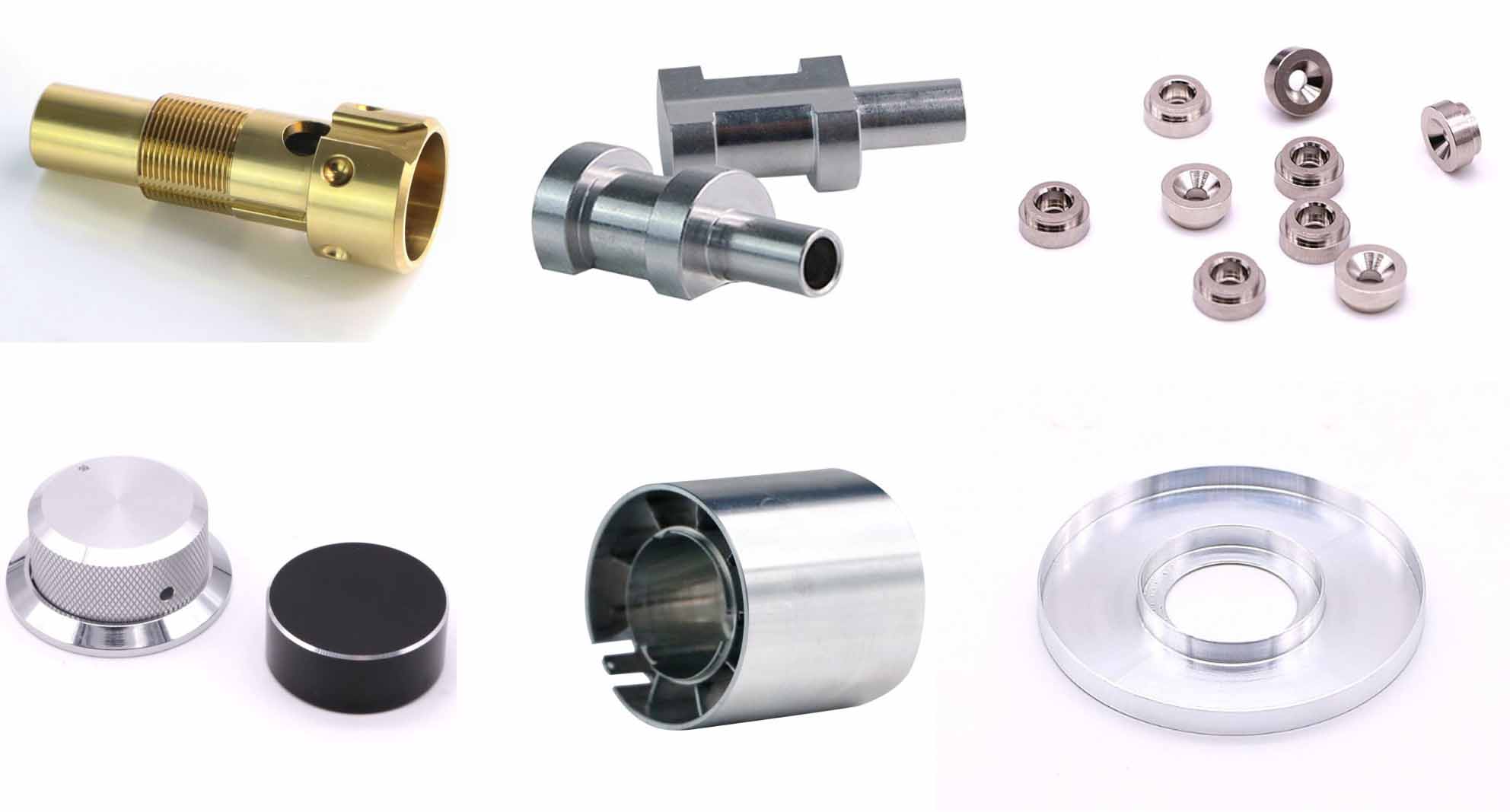

Flat bed CNC mini lathe is widely used in aluminum alloy processing, aluminum alloy high-speed motor housing processing brass parts processing, aluminum alloy potentiometer knob cnc processing. Flat bed CNC mini lathe can meet the requirements of high-speed machining of small batches and various types.
