CNC Lathe Processing High Precision Parts
This series CNC lathe machine are suitable for kinds of turning, such as internal and external cylindrical surface turning, cutting of various metric, whitworth, module and diameteral pitch threads as well as taper turning, facing, drilling, reaming and broaching for oil grooves and keyways etc.
The workpiece produced on machine can achieve good accuracy and surface roughness Ra1.6um.
Product Description
CNC Lathe Processing High Precision Parts
This series CK6150x1000 CNC lathe machine are suitable for kinds of turning, such as internal and external cylindrical surface turning, cutting of various metric, whit worth, module and diameteral pitch threads as well as taper turning, facing, drilling, reaming and broaching for oil grooves and keyways etc.
CK6150x1000 CNC Lathe Specifications:
CK6150x1000 CNC Lathe Advantage:
This series CK6150x1000 CNC lathe machine are suitable for kinds of turning, such as internal and external cylindrical surface turning, cutting of various metric, whit worth, module and diameteral pitch threads as well as taper turning, facing, drilling, reaming and broaching for oil grooves and keyways etc.
CK6150x1000 CNC Lathe Specifications:
| Item | Unit | ALCK6150x1000 |
| Max swing over bed | mm | Φ500 |
| Maximum swing over slide | mm | Φ290 |
| Maximum cutting diameter | mm | Φ500 |
| Maximum processing length | mm | 1000 |
| X/Z axis maximum stroke | mm | 300/1000 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | Φ82 |
| Spindle speed limit | rpm | 150-2000 / 60-1600 |
| X/Z axis rapid traverse speed | m/min | 6/8 |
| Diameter of tailstock sleeve | mm | Φ65 |
| Weight | kg | 2500 |
| Machine size | mm | 3030x1600x2050 |
CK6150x1000 CNC Lathe Advantage:
1、CNC Lathe CK6150 Longitudinal and cross feeds are effected by ball leadscrews driven by servo motors.
2、Horizontal CNC lathe Either vertical 4-station or horizontal 6 and 8-station tool post as well as gang type tool post can be selected.The post is located on precision contrite gears with a high repeated positioning accuracy.
3、Horizontal CNC lathe both chuck and tailstock are available with hydraulic or manual or pneumatic type.
4、The CK6150 CNC lathe spindle system is high in rigidity and accuracy.
5、The surface of the bed ways is supersonic frequency hardened and precision ground with a long service life.

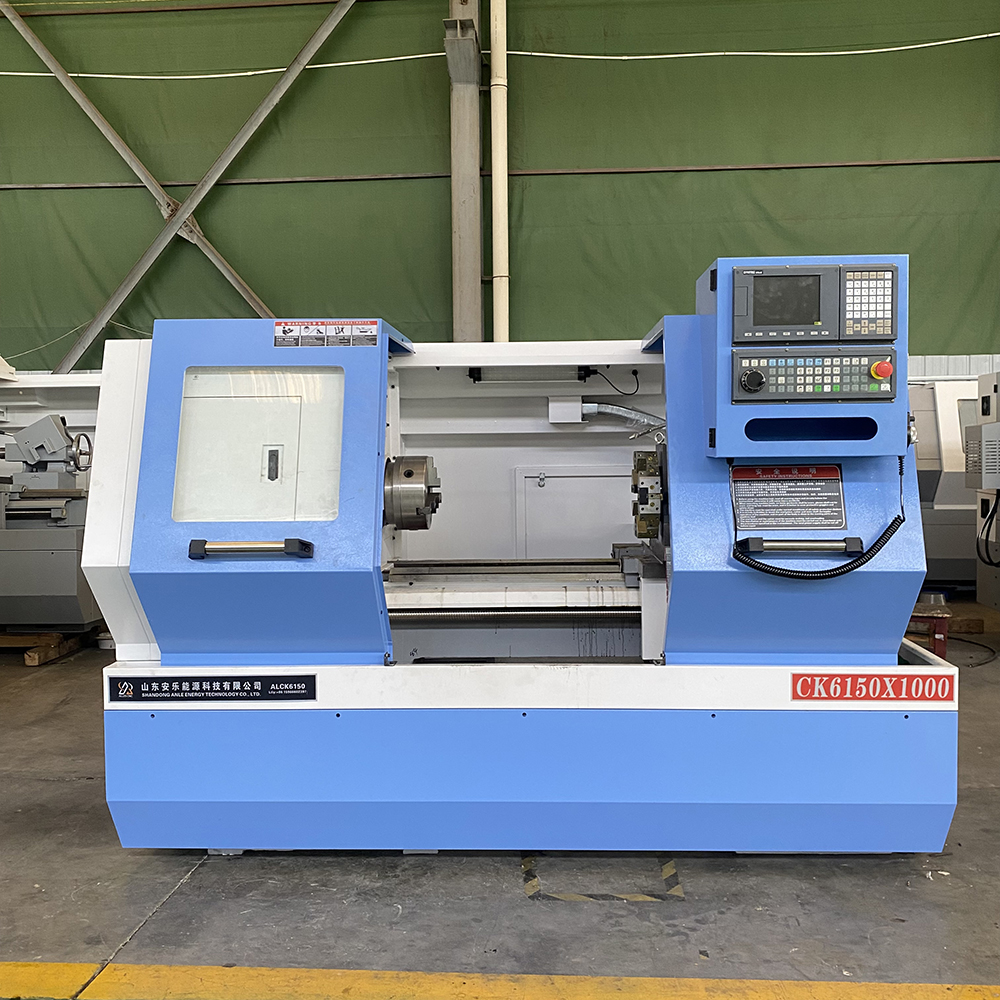

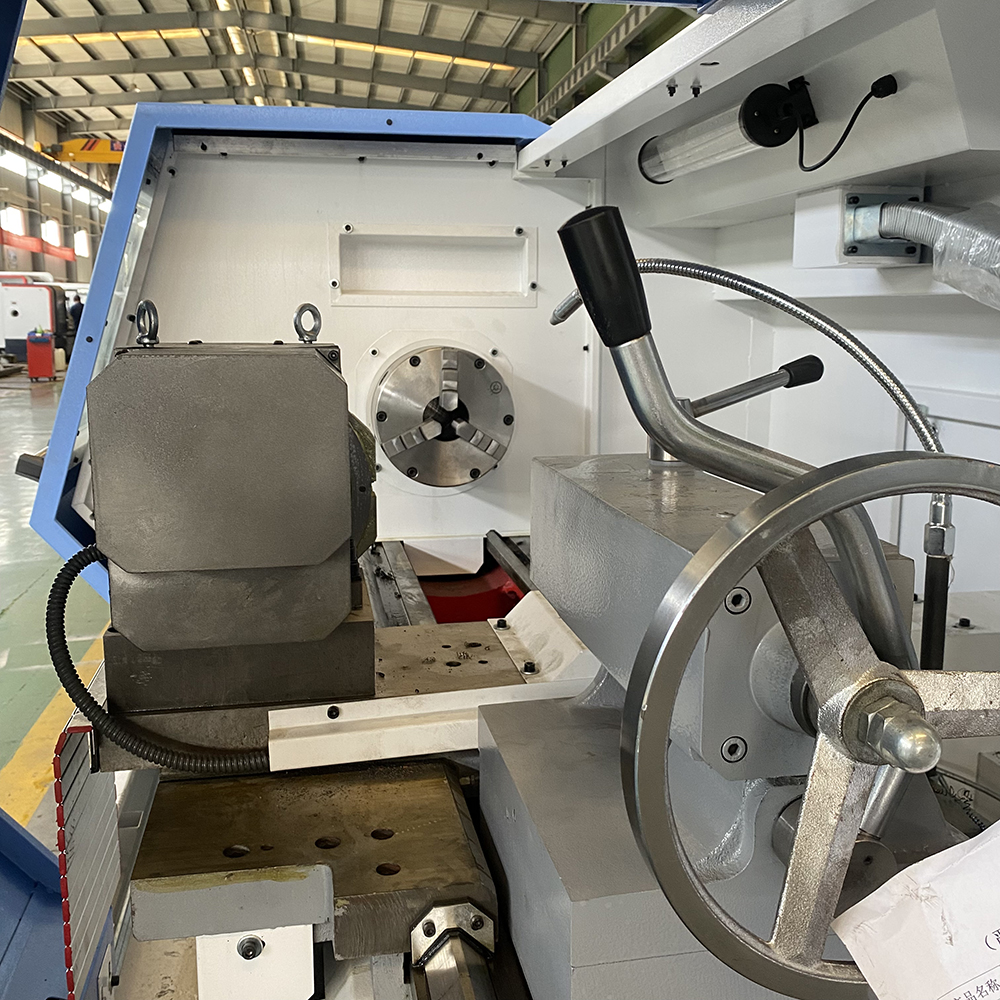

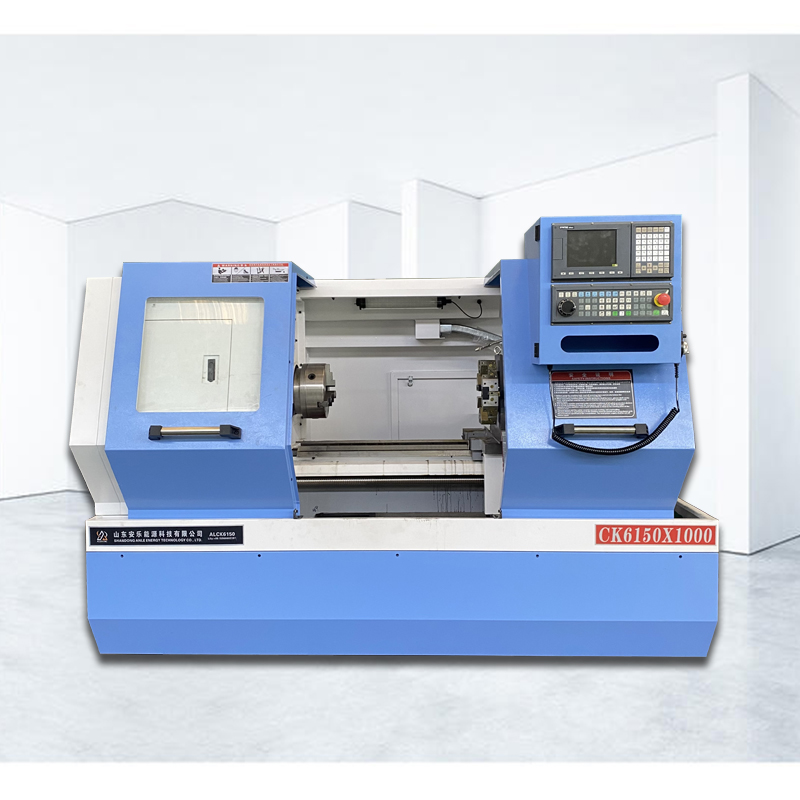

CK6150x1000 CNC Lathe Display:
