CNC Turning Center For Metal
Super Low Price CNC Lathe ALCK6136x750
Max swing over bed: Φ360
Spindle through hole diameter: Φ52
Delivery time 7-15 days
Product Description
CNC Turning Center For Metal
The cnc turning center can reduce the number of clamping times in large quantities, and can add parts with complex shapes without complex tooling. If the shape and specifications of the parts need to be changed, it is only necessary to change the processing program of the cnc turning center, and then the new model can be realized. Product modification and processing requirements.
| Item | Unit | ALCK6136 |
| Max swing over bed | mm | Φ360 |
| Maximum turning diameter on the tool post | mm | Φ200 |
| Maximum workpiece length between two centers | mm | 750 |
| Spindle through hole diameter | mm | Φ52 |
| pindle speed range (infinite) | r/min | 150-2000 |
| X stroke | mm | 200 |
| Z stroke | mm | 750 |
| Rapid traverse speed | mm/min | X: 6000 Z: 8000 |
| Minimum setting unit | mm | 0.01 |
| Overall dimensions of machine tool (length×width×height) | mm | 2350mm×1380mm×1640mm |
| Net weight | kg | 1600 |

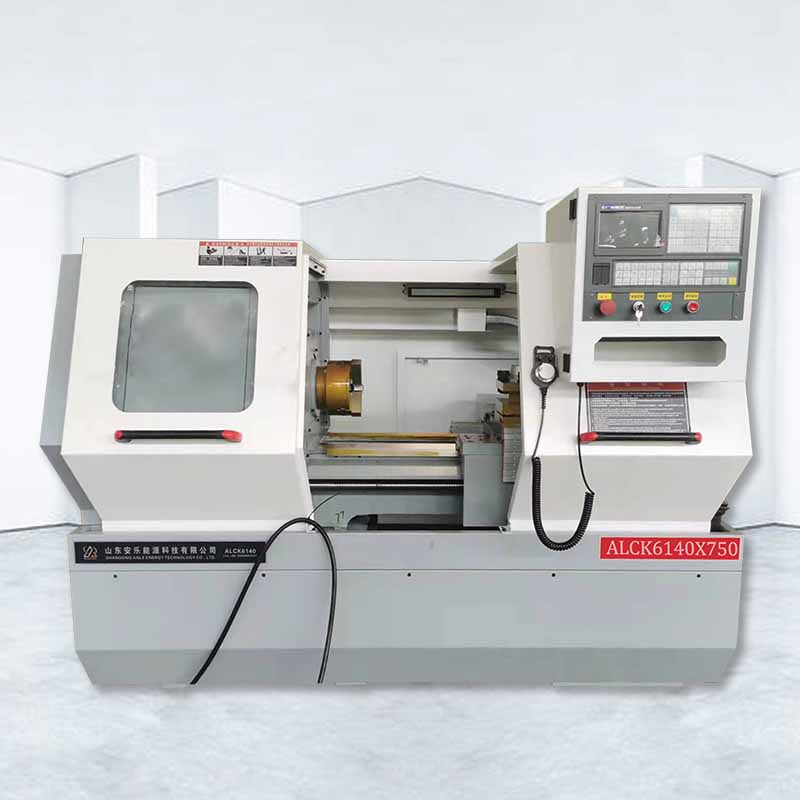

CNC Turning Center Detailed Images
CNC Turning Center Video

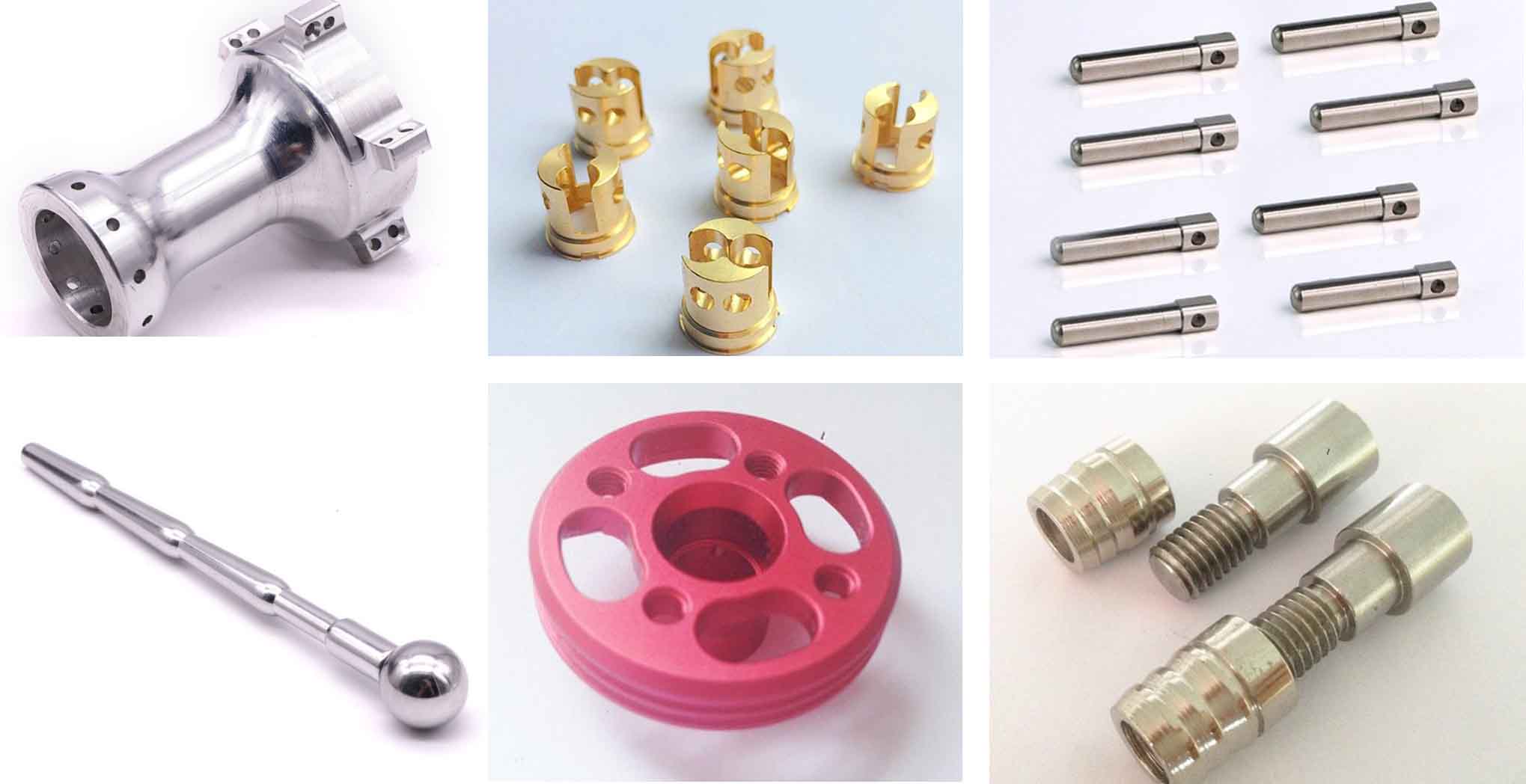

CNC Turning Center Application Industry
cnc turning lathe machine is mainly used for CNC lathe precision parts processing, precision aluminum alloy parts, hardware parts production, aluminum, copper, stainless steel, iron, titanium alloys and other processing. CNC turning lathe machine can process the inner and outer cylindrical surfaces of shaft parts or disc parts, inner and outer conical surfaces of any taper angle, complex rotating inner and outer surfaces, and cylindrical and conical threads, etc., and can perform grooving, drilling, reaming, Reaming and boring, etc.
