CNC Automatic Lathe Milling Drilling Metal Turning Machine
This series of cnc lathe CK6150 is a mature product mainly exported by Shandong Alles Energy Technology Co., Ltd.
Product Description
CNC Automatic Lathe Milling Drilling Metal Turning Machine
This series of cnc lathe CK6150 is a mature product mainly exported by Shandong Alles Energy Technology Co., Ltd.
The whole machine has a compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention.
CK6150x1000 CNC Lathe Video Display:
CK6150x1000 CNC Lathe Specifications:
| Item | Unit | ALCK6150 * 1000 |
| Max swing over bed | mm | Φ500 |
| Maximum swing over slide | mm | Φ290 |
| Maximum cutting diameter | mm | Φ500 |
| Maximum processing length | mm | 1000 |
| X/Z axis maximum stroke | mm | 300/1000 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | Φ82 |
| Spindle speed limit | rpm | 150-2000 / 60-1600 |
| X/Z axis rapid traverse speed | m/min | 6/8 |
| Diameter of tailstock sleeve | mm | Φ65 |
| Weight | Kg | 2500 |
| Machine size | mm | 3030 * 1600 * 2050 |
CK6150x1000 Flat Bed CNC Lathe Advantage:
CNC lathe CK6150x1000, optimized design of the headstock, suitable for turning of disc and shaft parts.
CNC lathe CK6150x1000 can process straight, arc, metric and inch threads, and multi-threaded. It is suitable for turning discs and shafts with complex shapes and high precision requirements. Parts Processing.
CNC lathe both the machine tool guide rail and the sliding saddle guide rail adopt hard guide rails of special materials, which are super hard and wear-resistant, durable, and have good machining accuracy retention after high-frequency quenching.
The flat bed CNC lathe numerical control system adopts GSK980TC3 and servo drive of Guangshu system, and adopts domestic famous and high-quality ball screw and high-precision screw bearing.
The CK6150x1000 flat bed CNC lathe spindle adopts high-precision spindle bearing set and has been precisely assembled and dynamically balanced to ensure that the spindle has high precision, low noise and strong rigidity.

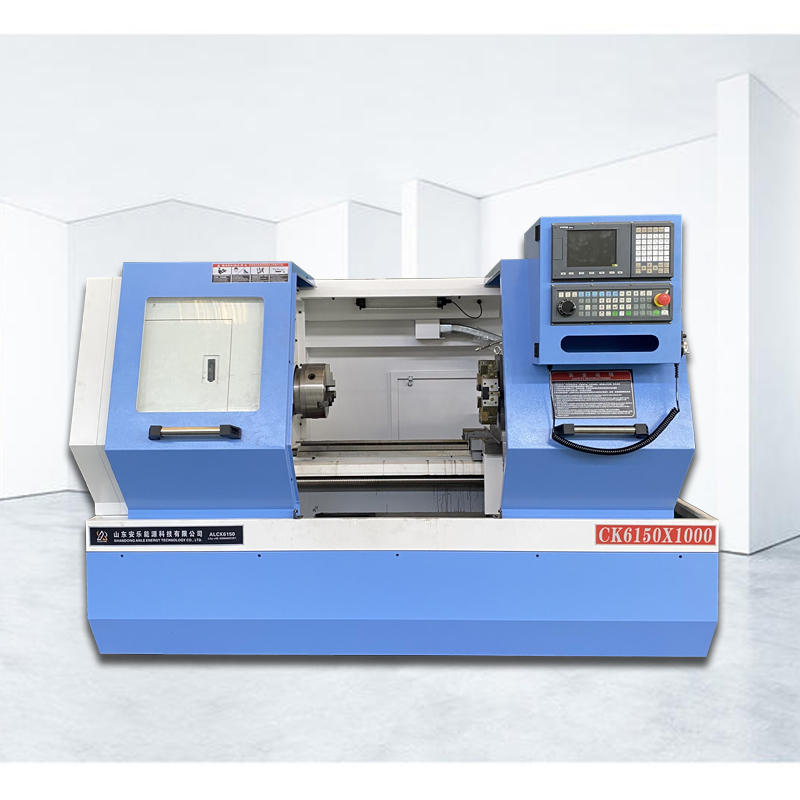

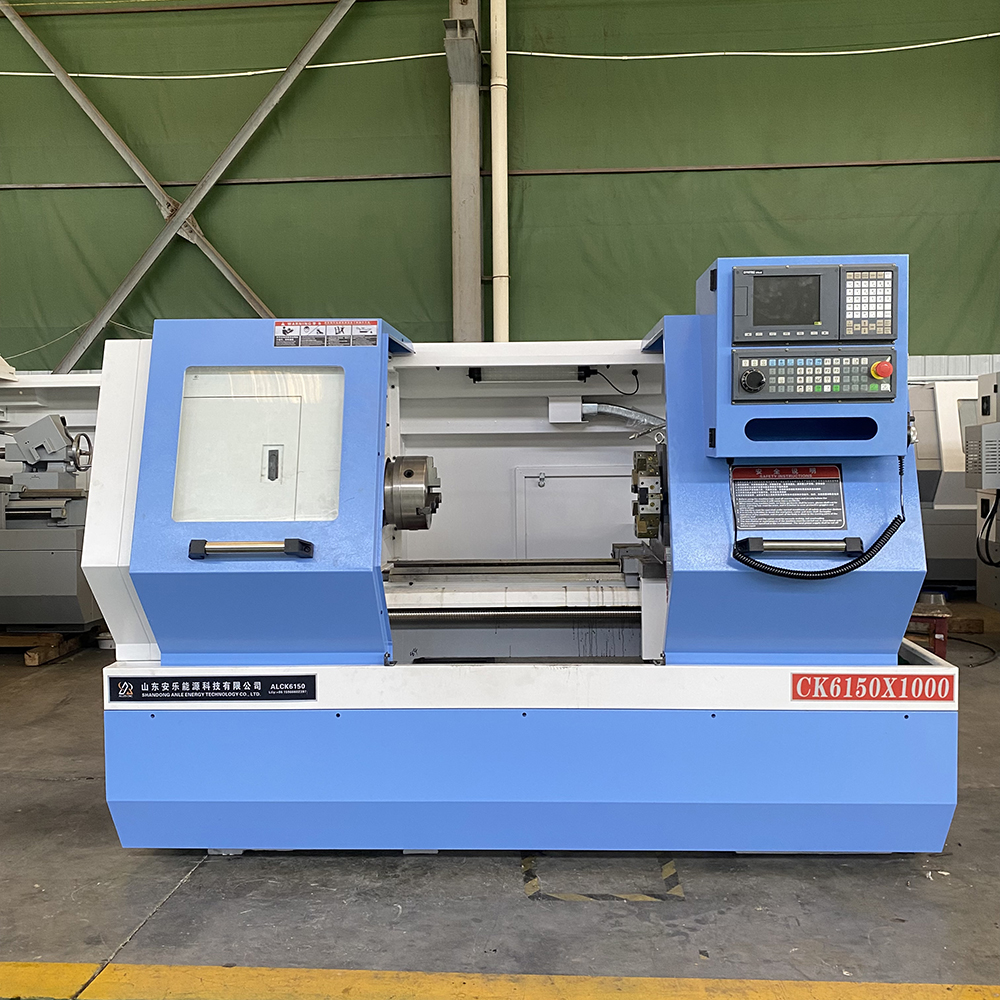

CK6150x1000 CNC Lathe Product Display:
