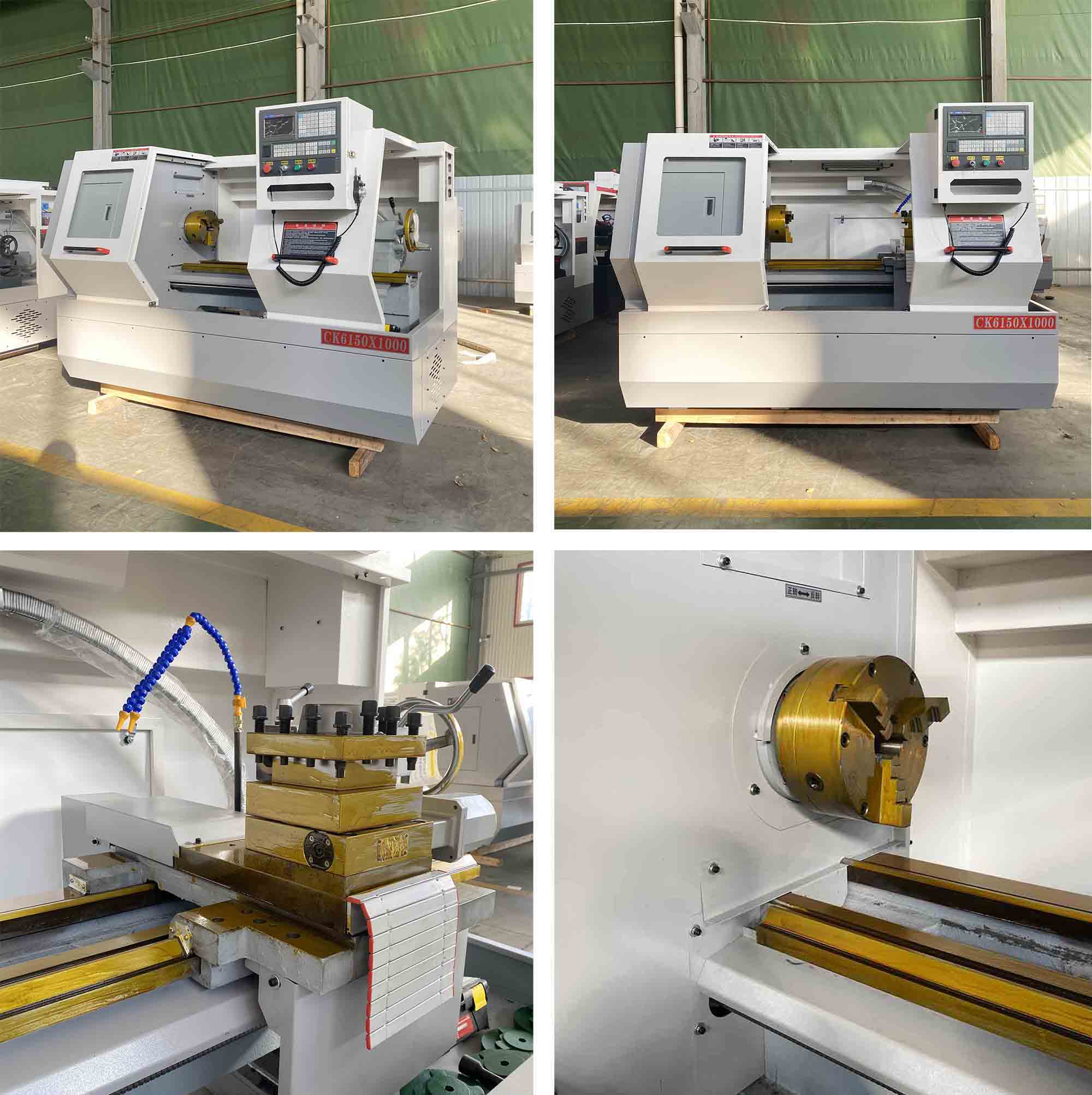

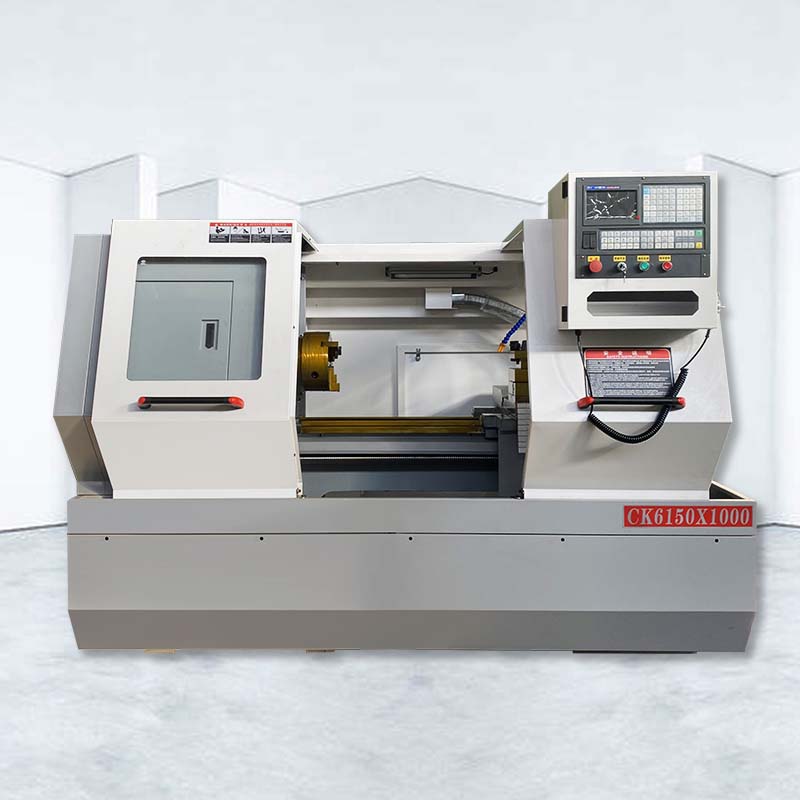

Cnc Lathe 3 Axis For Metal
The 3-axis of the CNC lathe is automatically controlled by the CNC system to perform various turning of inner holes, outer circles, conical surfaces, circular lead surfaces, and threads, especially suitable for small and medium batches of shafts and disc parts. It has the advantages of high degree of automation, simple programming and high precision.
Product Description
CNC Lathe 3 Axis For Metal
High Machining Accuracy And Stable Machining Quality;
●Multi-coordinate linkage can be carried out, and parts with complex shapes can be processed;
●When the machining parts are changed, generally only the NC program needs to be changed, which can save production preparation time;
●The machine tool itself has high precision and rigidity, and can choose favorable processing amount, and the productivity is high (generally 3~5 times that of ordinary machine tools);
●The machine tool has a high degree of automation, which can reduce labor intensity;
●Higher quality requirements for operators and higher technical requirements for maintenance personnel
CNC Lathe 3 Axis Details
| Model | ALCK6150*1000 | |
| X stroke | 250mm | |
| Z-stroke | 900mm | |
| Headstock |
Spindle speed range
(number of stages)
|
Gear two-speed 50-1600rpm/single axis 2200rpm (optional) |
| Spindle hole diameter | 52mm | |
| PACKING(L*W*H) | 2350*1400*1800mm | |
| WEIGHT(N.W/G.W) | 1550/1650kg | |
CNC Lathe 3 Axis Features
CNC machine tool is a high-efficiency automatic machine tool, which has the characteristics of high flexibility, high productivity, high processing precision, stable and reliable processing, etc., which can reduce the labor intensity of workers and help improve the level of production management.
Application Industry:
The application range of CNC machine tools is very wide, involving defense aviation, automobile industry, mold manufacturing, machining, parts construction, etc., as long as there are mechanical industries, CNC machine tools will be used.
