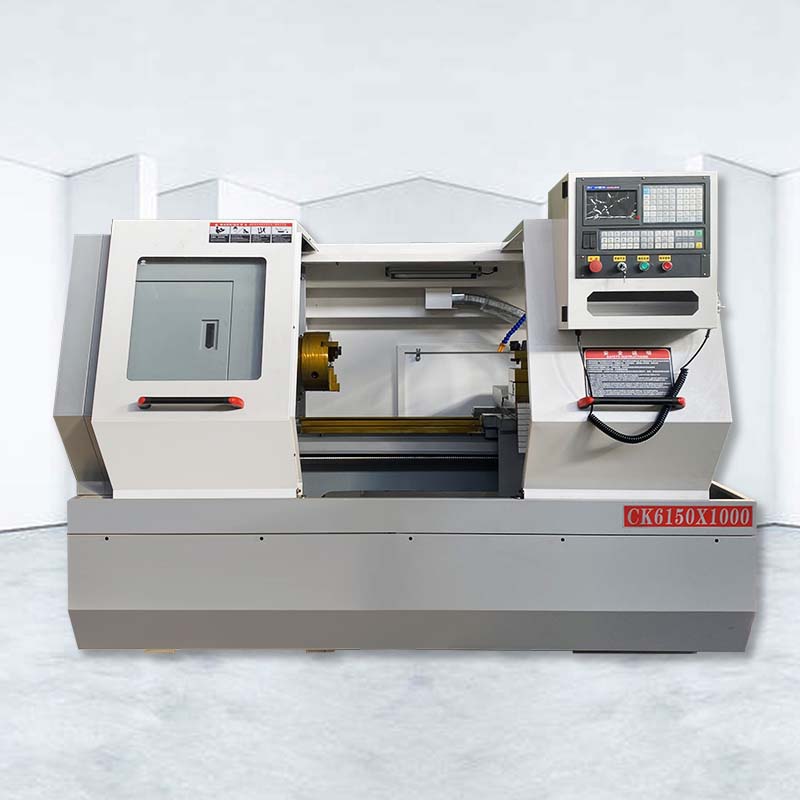

Flat bed CNC machine Features
Product Description：
Flat bed CNC machine adopts the head of the motorized spindle, which removes the traditional belt drive technology. The bearing adopts front and rear paired high-speed, which has high speed, high rigidity, low noise, long-lasting precision, and the spindle runout is less than 3um.
Using high rigidity cast iron, resin sand technology, the overall structure of the bed foot and bed has the characteristics of smooth chip removal, compact structure and beautiful appearance.
Product Description
Flat Bed CNC machine Features
Flat bed CNC machine Features
| Item | Unit | ALCK6150*1000 |
| Max swing over bed | mm | Φ500 |
| Maximum swing over slide | mm | Φ290 |
| Maximum cutting diameter | mm | Φ500 |
| Maximum processing length | mm | 1000 |
| X/Z axis maximum stroke | mm | 300/1000 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | Φ82 |
| Spindle speed limit | rpm | 150-2000/60-1600 |
| Tool bar size | mm | 25*25 |
| Diameter of tailstock sleeve | mm | Φ65 |
| Tailstock sleeve stroke | mm | 130 |
| Weight | Kg | 2500 |
| Machine size | mm | 3030x1600x2050 |

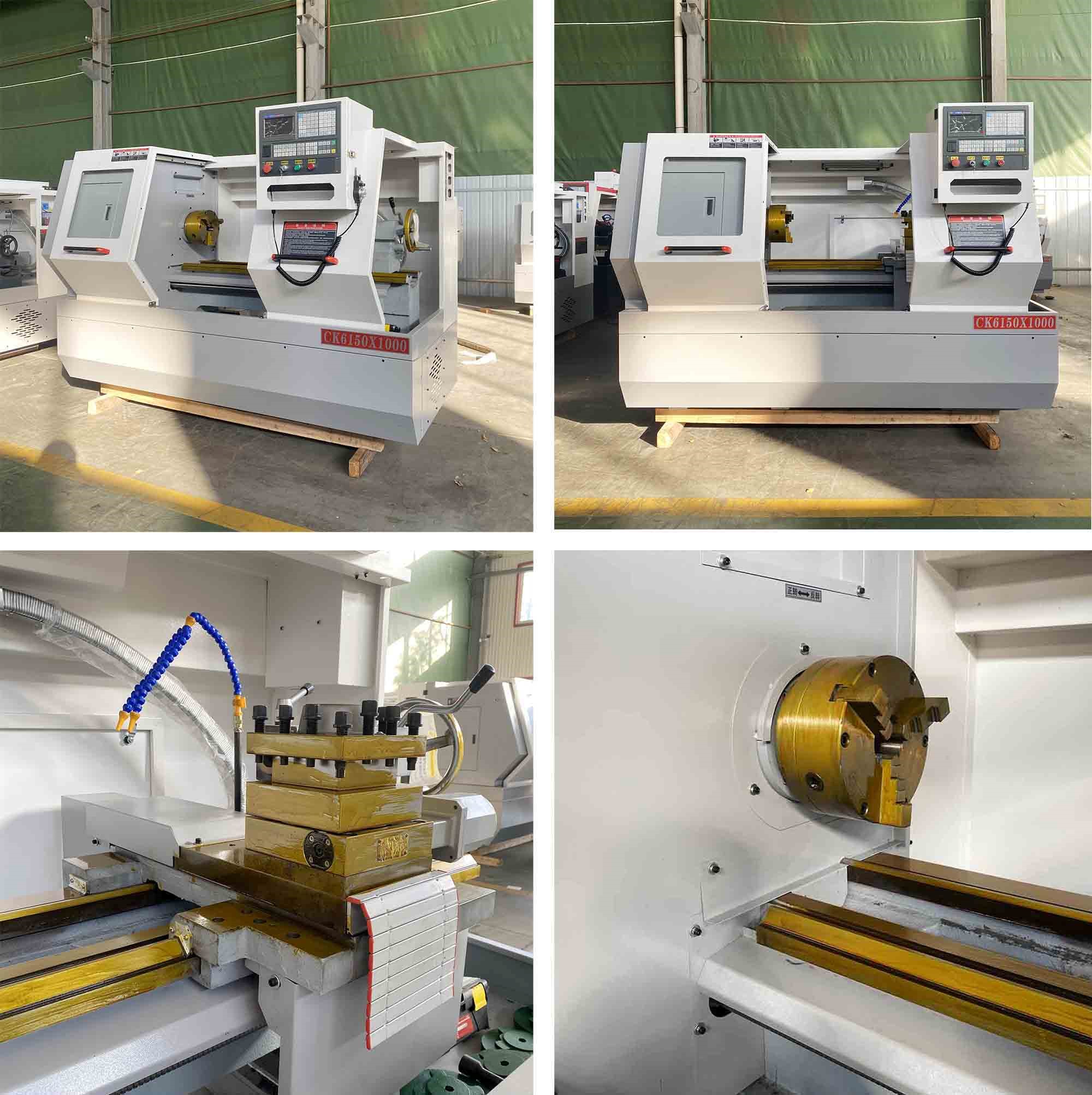

Flat Bed CNC machine Features
The cnc lathe 3 axis CNC lathe adopts a fully enclosed or semi-enclosed protection device to prevent chips or cutting fluid from flying out and causing accidental injury to the operator.
Most CNC lathes with automatic chip removal device adopt a sloping bed structure layout, which is convenient for chip removal and automatic chip removal machine.
The spindle speed is high, and the workpiece clamping is safe and reliable. Most CNC lathes use hydraulic chucks, which are convenient and reliable to adjust the clamping force, and also reduce the labor intensity of operators.
Flat Bed CNC machine Features
Flat bed CNC lathe is a high-efficiency automatic machine tool, which has the characteristics of high flexibility, high productivity, high processing precision, stable and reliable processing, etc., which can reduce the labor intensity of workers and help improve production level management.
CNC lathe for metal has a wide range of applications: aviation industry, aerospace industry, shipbuilding industry, automobile manufacturing, weapon manufacturing, power generation equipment manufacturing, metallurgical equipment manufacturing, engineering machinery manufacturing, mold manufacturing, electronic information equipment manufacturing, etc.
