CNC Lathes Metal Industrial Machinery
Automatic CNC lathe is a high-precision and high-efficiency automatic machine tool. Equipped with a multi-station turret or a dynamic turret, the machine tool has a wide range of processing performance, which can process linear cylinders, oblique cylinders, arcs and various threads, grooves, worms and other complex workpieces, with linear interpolation, arc Interpolate various compensation functions, and play a good economical effect in the mass production of complex parts.
Product Description
CNC Lathes Metal Industrial Machinery
Automatic Cnc Iathe:
1. Flat bed type 20 Horizontal CNC Lathe has beautiful appearance, novel and unique shape, waterproof, anti-chip, convenient maintenance, reasonable structure, and reflects the characteristics of the times; the roller screw has a compact and sturdy structure, linear track, fast moving speed and high efficiency;

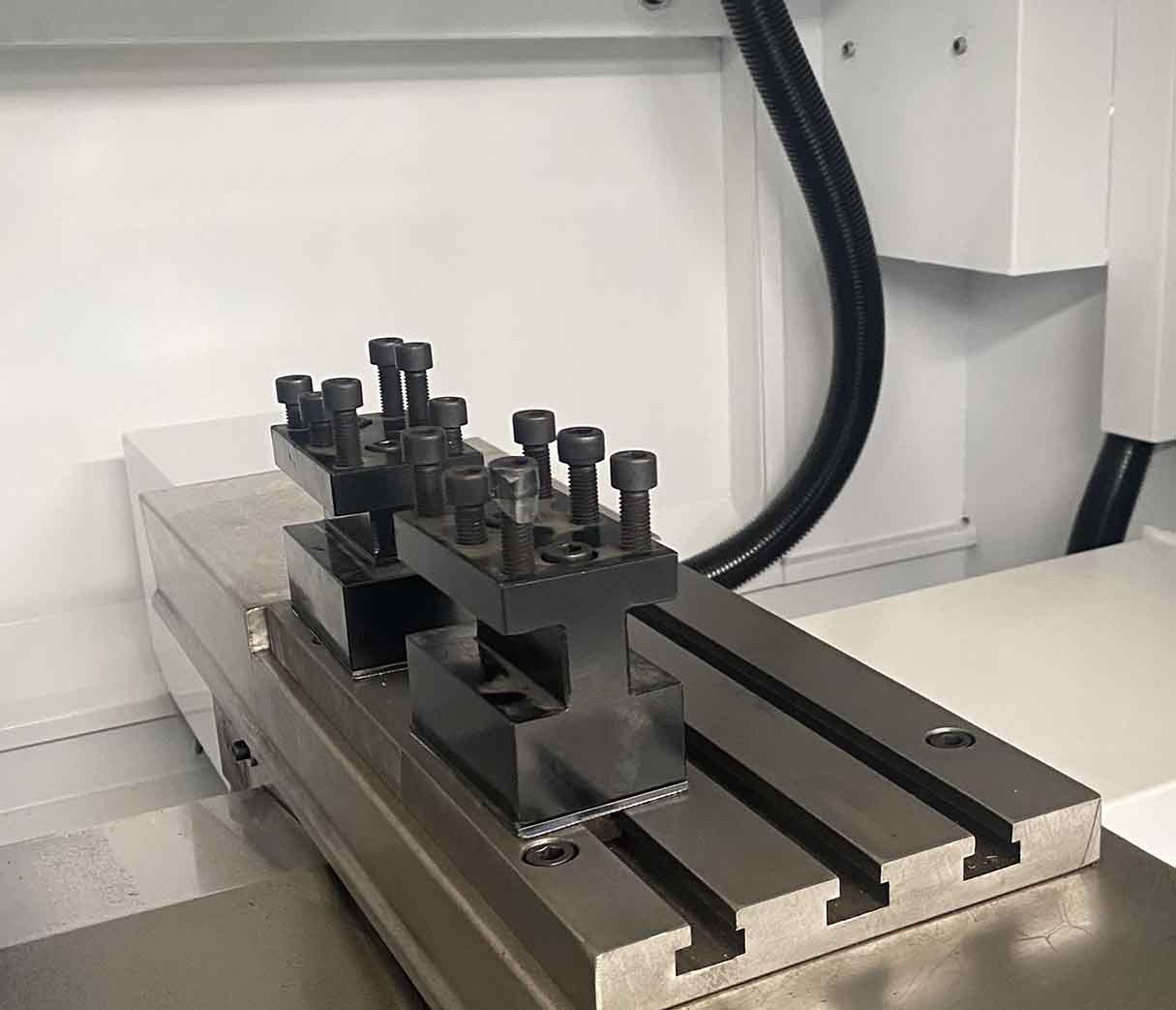

2. Knife row structure, convenient to install knives, fast and simple, and rich in matching methods.

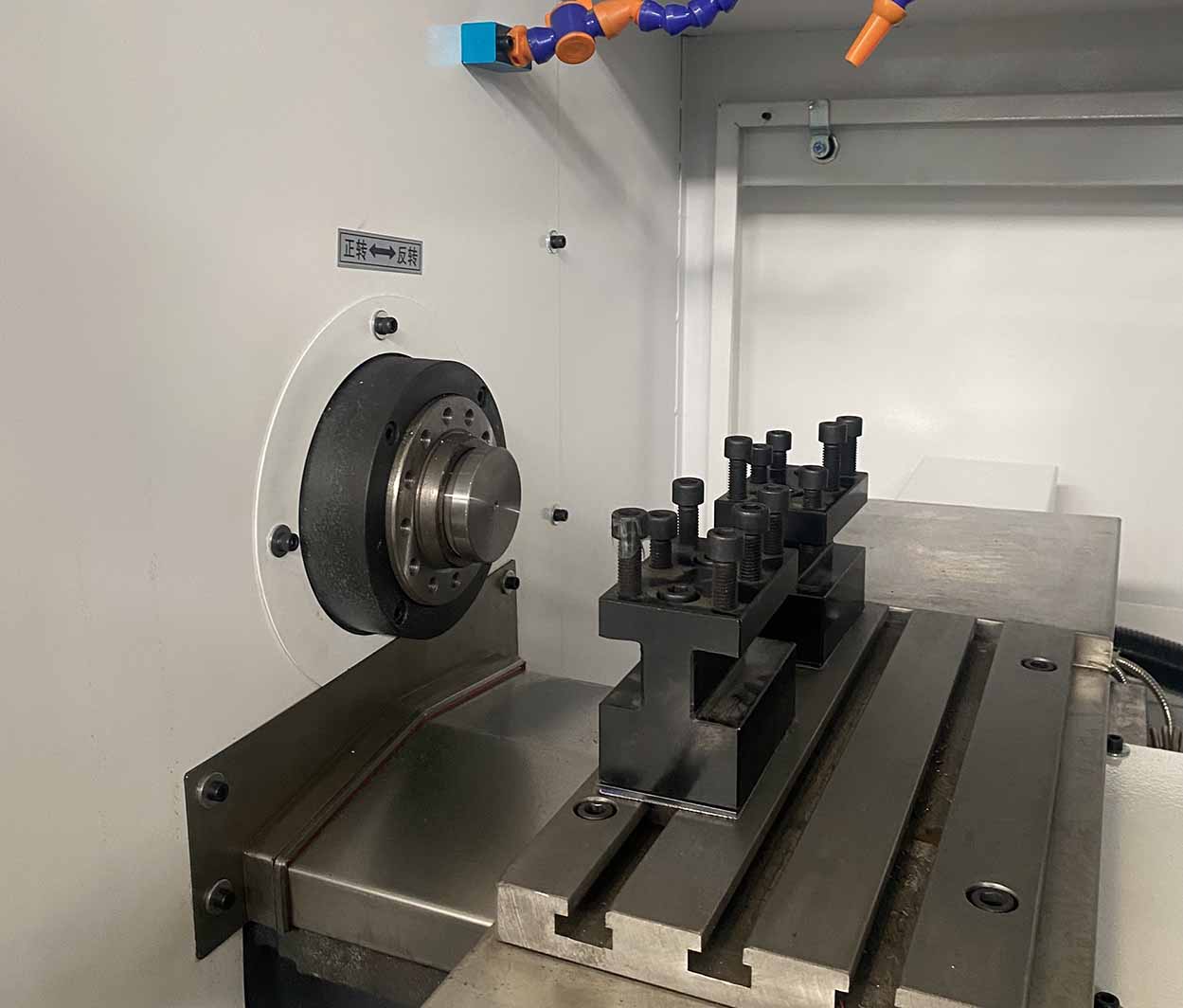

3. The spindle chuck hidden in the spindle has good precision, high speed, long service life and low noise. It is suitable for the production of high-precision small parts in large quantities, especially for complex and high-precision parts.
4: Servo spindle drive, large output torque at low speed, linear guide rails for vertical and horizontal guide rails, high positioning accuracy and good dynamic performance

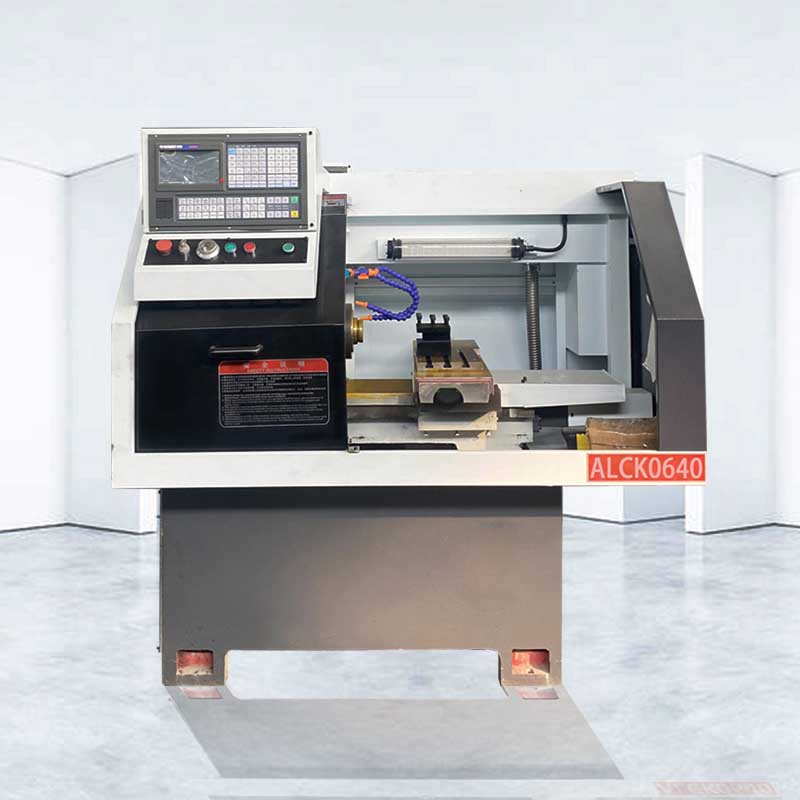

| No | Item | Unit | ALCK0640 |
| 1 | Max swing over bed | mm | Φ250 |
| 2 | Maximum swing over slide | mm | Φ120 |
| 3 | Spindle hole diameter | mm | Φ48 |
| 4 |
With hollow chuck pull rod through hole |
mm | Φ40 |
| 5 | Spindle speed limit | rpm | 3000 |
| 6 | Z stroke | mm | 220 |
| 7 |
X axis repeat positioning accuracy |
mm | 0.01 |
| 8 |
Z axis repeat positioning accuracy |
mm | 0.01 |
| 9 | Machine weight | Kg | 800 |
| 10 | Dimensions (length × width × height) | mm | 1620×1340×1680mm |
| 11 | Control system | GSKTB3 |
Equipment Configuration And Parameters
CNC Iathe Processing
1. The horizontal cnc lathe for metal bed has a solid structure and can withstand the inertia generated by high-speed motion.
2. The X/Y/Z three-axis adopts high-speed mute screw and mute linear rail to make the thermal displacement less and high precision.
3. 36/48 meters adjustable displacement, which can save 50% of non-processing time.
4. The design of the heightened column reserves the space for the installation of the fourth and fifth axes.
5. The imported three-axis shield protects the screw rail and improves the service life of the horizontal cnc lathe.
Horizontal Cnc Iathe Application
What industries are cnc turning machine used for? Hundreds of different industrial application types that can benefit from CNC automation are found. cnc turning machine can process workpieces such as Machine building, general and special industrial machinery, engine and transmission components, mould and model equipment and machinery, marine industry, machine tools, pallets and fixtures.You May Also Like
