CNC Lathe Machining Metal

CNC lathe is an automatic cnc lathe with high precision and high efficiency. Equipped with a multi-station turret or a power turret, the cnc turn-mill machine has a wide range of processing performance, and can process linear cylinders, oblique cylinders, arcs and various threads, grooves, worms and other complex workpieces. Compensation, arc interpolation and various compensation functions, and have played a good economic effect in the mass production of complex parts.

Product Description

cnc lathe processing features

CNC turning center with high precision and high rigidity adopts an integral horizontal high-low type bed structure, horizontal and high-rigidity box-type mechanical spindle, optional 12-station servo turret and 12-station power turret and power with Y-axis function Turret, integral outer protection and independent full inner protection system, High stability, through deep finite element analysis to optimize the internal rib structure of the base, the rigidity of the base is better, the deformation is more stable, and the vibration wave is lower. The main castings are free of internal stress. After artificial aging and natural aging, the precision and quality standards are improved. CNC lathe processing combines rigidity, precision, stability and environmental protection. It is a reliable choice for high-end manufacturing

CNC lathe for metal function and feature description

Metal CNC lathes are easy to operate, safe to protect, novel and beautiful in appearance, easy to maintain and easy to maintain. CNC lathe processing has strong adaptability to processing objects, adapts to the characteristics of single-piece production of molds and other products, and provides suitable processing methods for mold manufacturing;

Equipment configuration and parameters

CNC lathe processing.

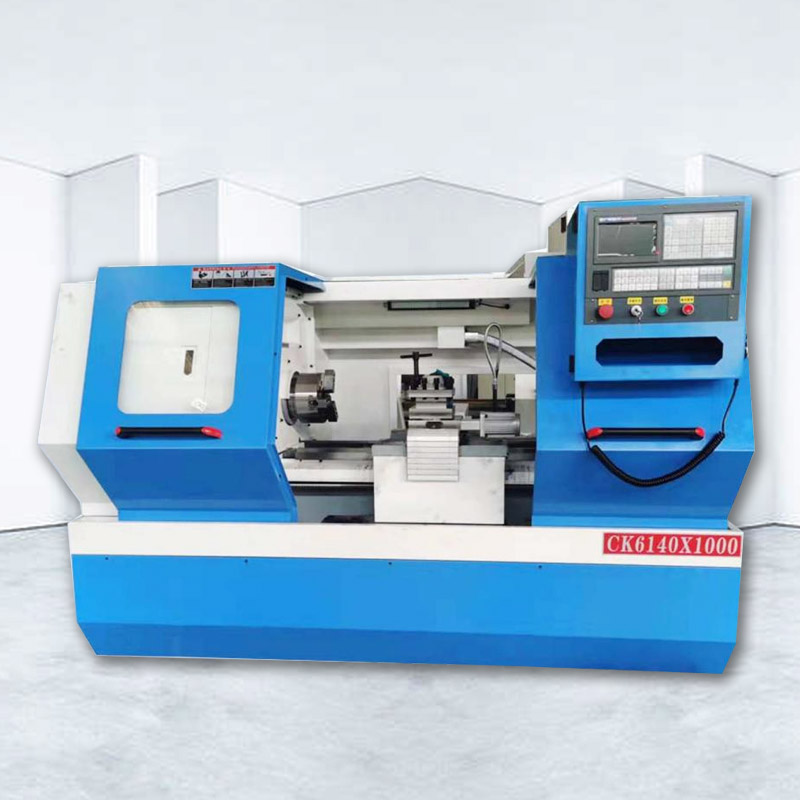

Model		ALCK6140*1000
Processing capacity	Maximum turning diameter of bed	400mm
	Maximum turning diameter on the	220mm
	tool post
	Center distance	1000mm
	Rail width	360mm
	X stroke250mm	250mm
	Z-stroke	900mm
Headstock	Spindle hole diameter	52mm

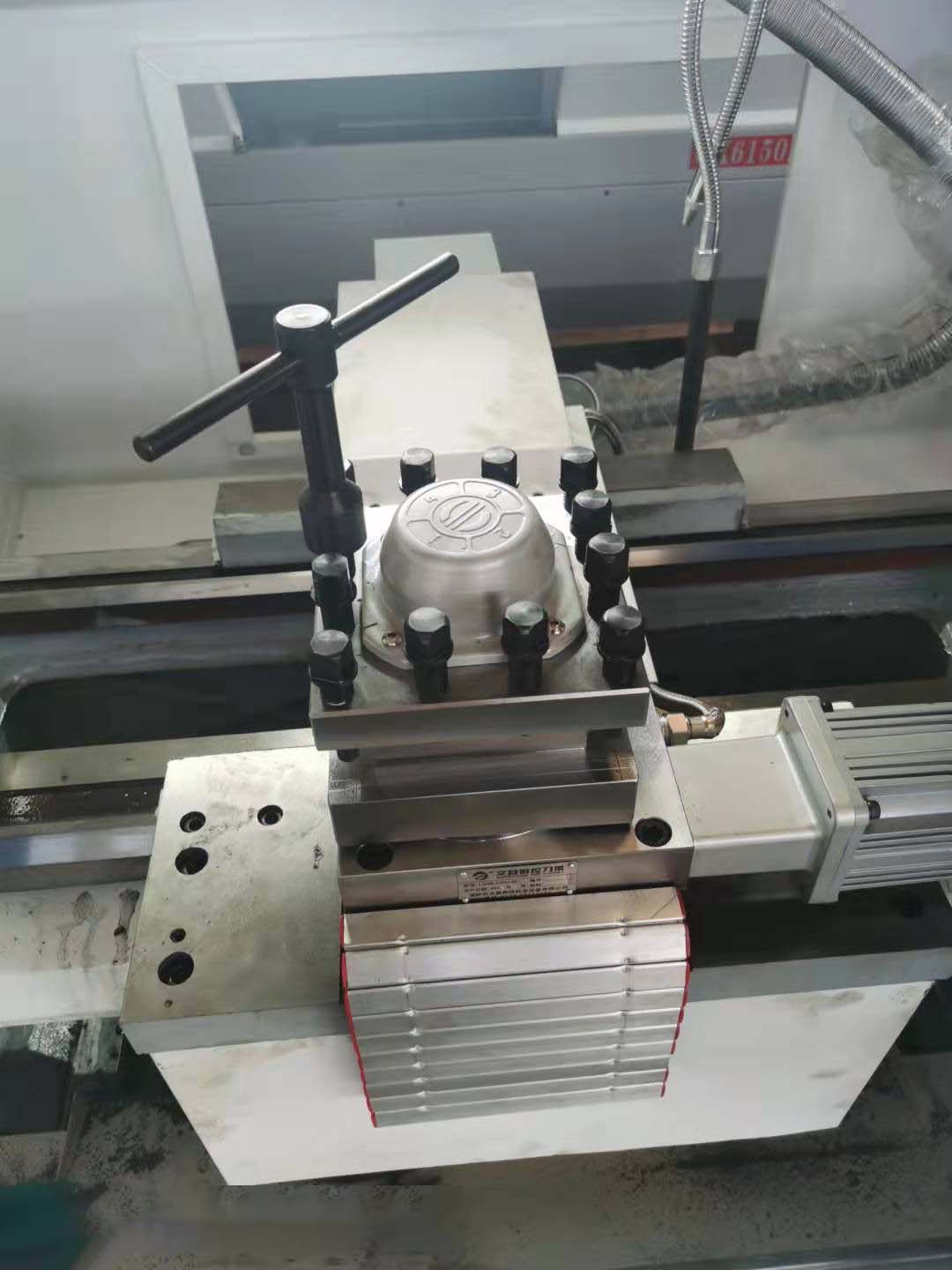

Headstock	Number of tools	4
Tailstock	Diameter of tailstock sleeve	65mm
PACKING(LWH)		235014001800mm
WEIGHT(N.W/G.W)		1550/1650kg

Flat bed CNC Lathe Advantages

High speed and precision are the eternal goals of cnc lathe 3 axis development. With the rapid development of science and technology, the speed of replacement of electromechanical products is accelerated, and the requirements for the precision and surface quality of parts processing are also higher and higher. In order to meet the needs of this complex and changeable market, the current automatic cnc lathe is developing in the direction of high-speed cutting, dry cutting and quasi-dry cutting, and the machining accuracy is constantly improving. On the other hand, the successful application of electric spindles and linear motors, ceramic ball bearings, low-temperature high-speed ball screw pairs with high-precision large-lead hollow internal cooling and strong ball nut cooling, and linear guide pairs with ball cages and other machine tool functional components The market launch also creates conditions for the development of flat bed CNC lathe to high speed and precision.

CNC lathe application

Horizontal CNC Lathe is used for turning of long axial dimensions or small disc parts. Horizontal CNC Lathe can be further divided into economical CNC lathes, ordinary CNC lathes and turning machining centers by function.
