CNC turning machining of auto parts
Automatic cnc lathe better solves the problem of complex, precise, small batch and multi-variety parts processing, and is a flexible and high-efficiency automatic machine tool
Product Description

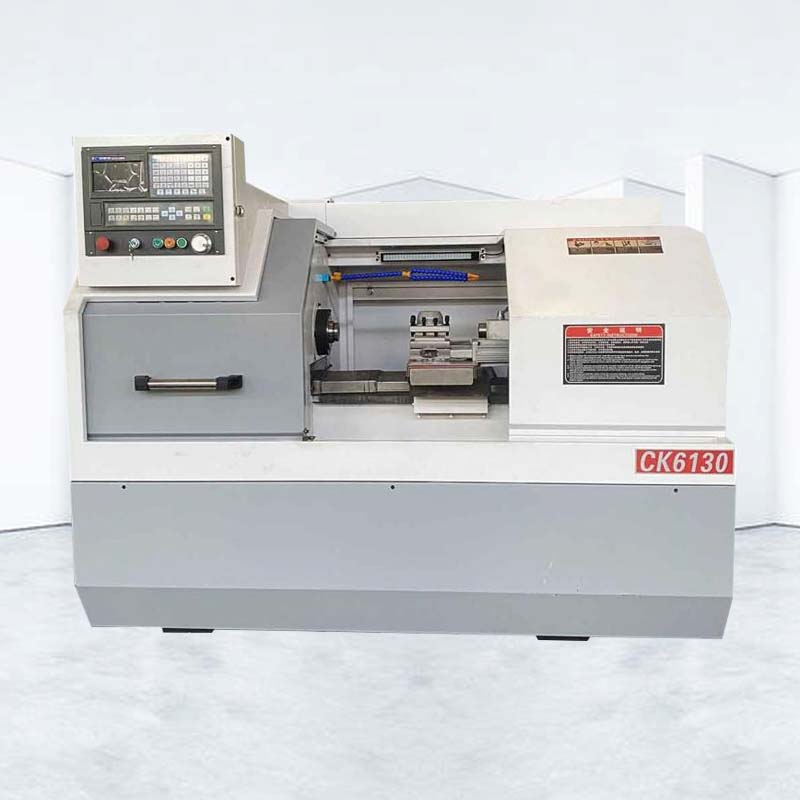

Flat Bed CNC Lathe Description
cnc lathe 3 axis tool is a high-efficiency automatic machine tool, which has the characteristics of high flexibility, high productivity, high processing precision, stable and reliable processing, etc., which can reduce the labor intensity of workers and help improve the level of production management.
CNC Lathe Processing Introduce
1. One-piece cast molding bed, with large shock-proof damping and small deformation.
The 2.30° inclined bed design is convenient for the operator to get on and off the workpiece, and also ensures smooth chip removal.

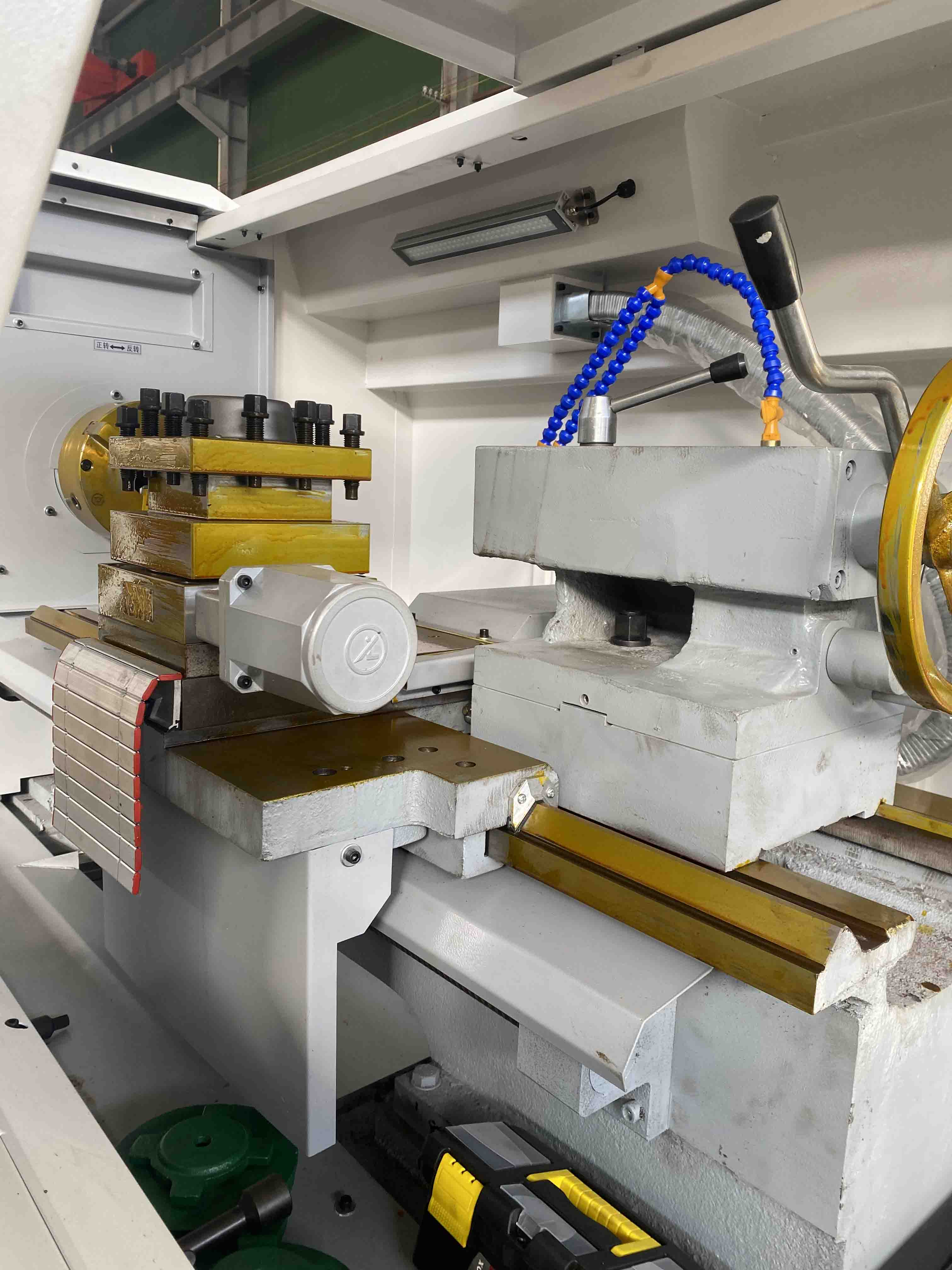

3. T-shaped cutter plate reduces tool change time, and various cutter arrangements and combinations improve production efficiency.
4. The overall size of the CNC lathe is small and can be used to form a large one.
5. cnc lathe processing has fast response and high efficiency.
CNC lathe processing Features
1.High machining precision and stable machining quality;
2.Multi-coordinate linkage can be carried out, and parts with complex shapes can be processed;
3.When the machining parts are changed, generally only the NC program needs to be changed, which can save production preparation time;
The CNC lathe itself has high precision and rigidity, and can choose favorable processing amount, and the productivity is high (generally 3~5 times of ordinary machine tools);
4.0CNC turning has a high degree of automation, which can reduce labor intensity;
5.Higher quality requirements for operators and higher technical requirements for maintenance personnel.
| Item | Unit | ALCK6130 |
| Max swing over bed | mm | Φ300 |
| X-axis motor torque | 4Nm | |
| Z-axis motor torque | 4Nm | |
| Maximum swing over slide | mm | Φ130 |
| Spindle hole diameter | mm | Φ48 |
| Tool post form | Tool post | |
| With hollow chuck pull rod through hole | Φ40 | |
| Spindle speed limit | rpm | 2200 |
| Taper of inner hole of tailstock sleeve | No | Mohs 4 |
| Tailstock | Manual | |
| Knife square size | mm | □20×20 (four stations) |
| Clamping device | Collet/160 three-jaw chunk | |
| X/Z direction fast moving speed | 6/8 | |
| X stroke | mm | 280 |
| Z stroke | mm | 500 |
Accessories
Vertical Machining Center CNC Lathe Machine Factory Vertical machining center has the characteristics of high productivityveritability,high ALLEs CNC all castings must pass the test of time before they can be aoplied to the accuracy.ease of programmingenvironmental friendly and so onVertical machining machine. All parts must be tempered a second time.After the production of the machine center is suitable for the mechanicalorocessine and mold makine.And it can adapt to is comoletedthe machine will continue to work for 72 hours without processine the the processing requirement from rough machining to finish machiningIt can also finish workpiece to ensure that the machine can be used ormally. many working procedures like millingdrillingtappingboring etc warehouse covers an area of about 4000 square meters.equipped with various factory produced parts, purchased parts and CNC systems.GSK systen purchases about 200-300 sets at a time, and the system is in stock,the yield is very high.
In order to ensure the working accuracy of the CNC lathe and prolong the service life, it is necessary to carry out reasonable maintenance work on the CNC lathe with inclined bed for self-use. The quality of lathe maintenance directly affects the processing quality and production efficiency of the workpiece. The maintenance work of CNC lathes is mainly carried out by operators, and maintenance workers cooperate with each other. During maintenance, the electric probe must be cut off first, and then maintained according to the maintenance content and requirements.
Horizontal CNC Lathe Application:
CNC turning is an automatic machine tool equipped with a program control system, which can make the CNC lathe move and machine parts according to the programmed program. It integrates the latest technologies such as machinery, automation, computer, measurement, microelectronics, etc., and uses a variety of sensors. The sensors used in CNC machine tools mainly include photoelectric encoders, linear gratings, proximity switches, temperature sensors, Hall sensors, current Sensors, voltage sensors, pressure sensors, liquid level sensors, resolvers, inductive synchronizers, speed sensors, etc., are mainly used to detect position, linear displacement and angular displacement, speed, pressure, temperature, etc
