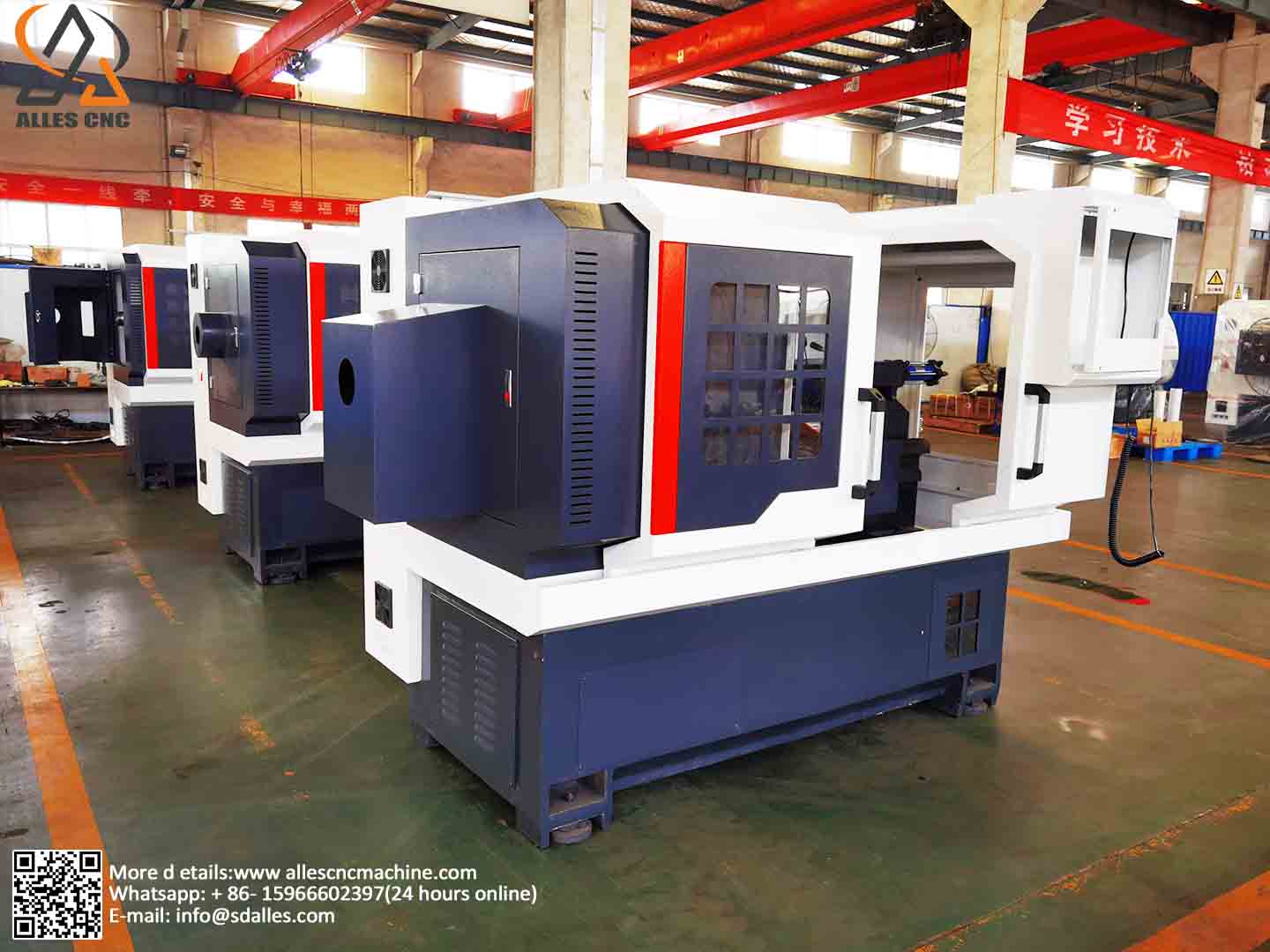

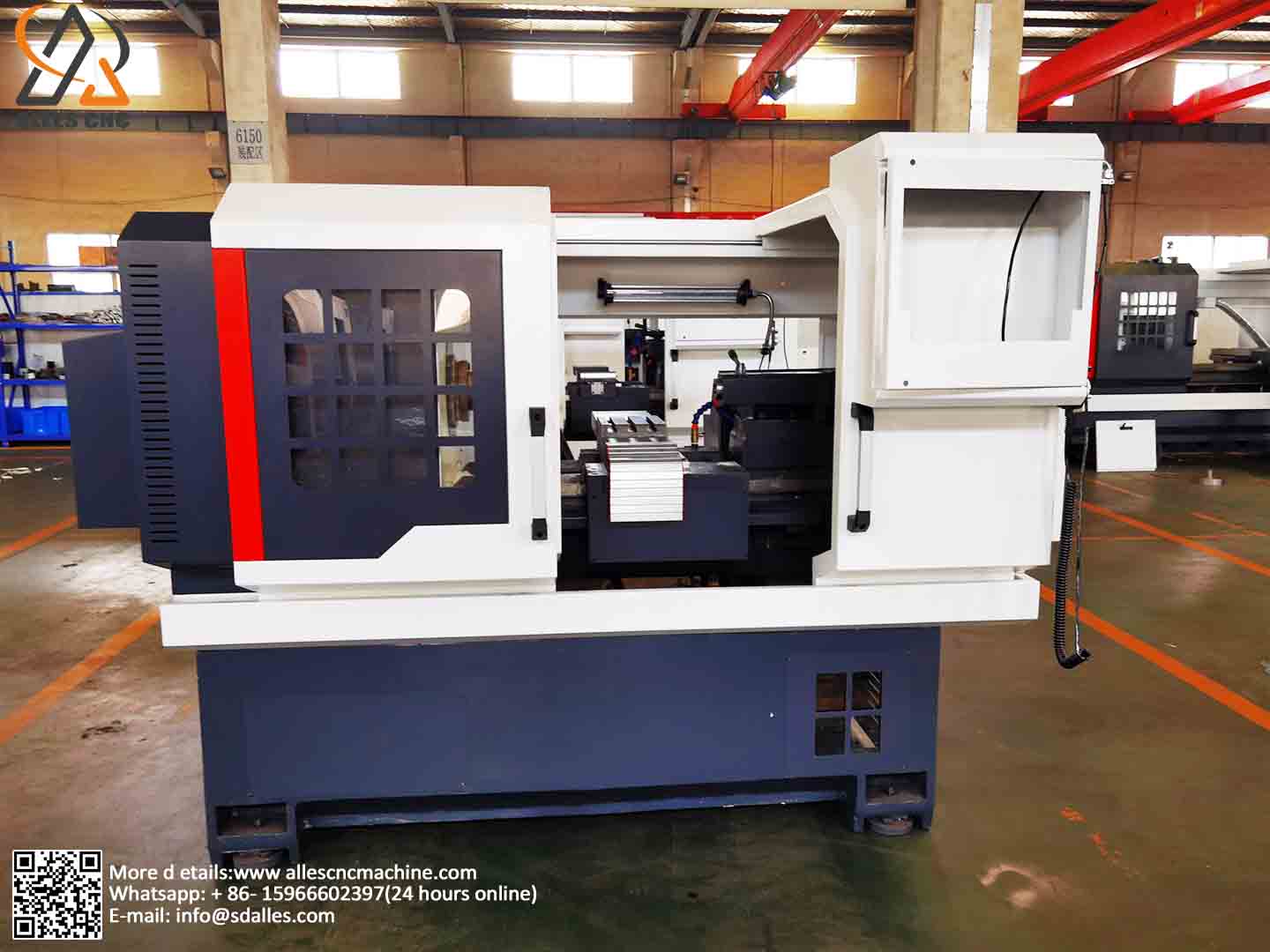

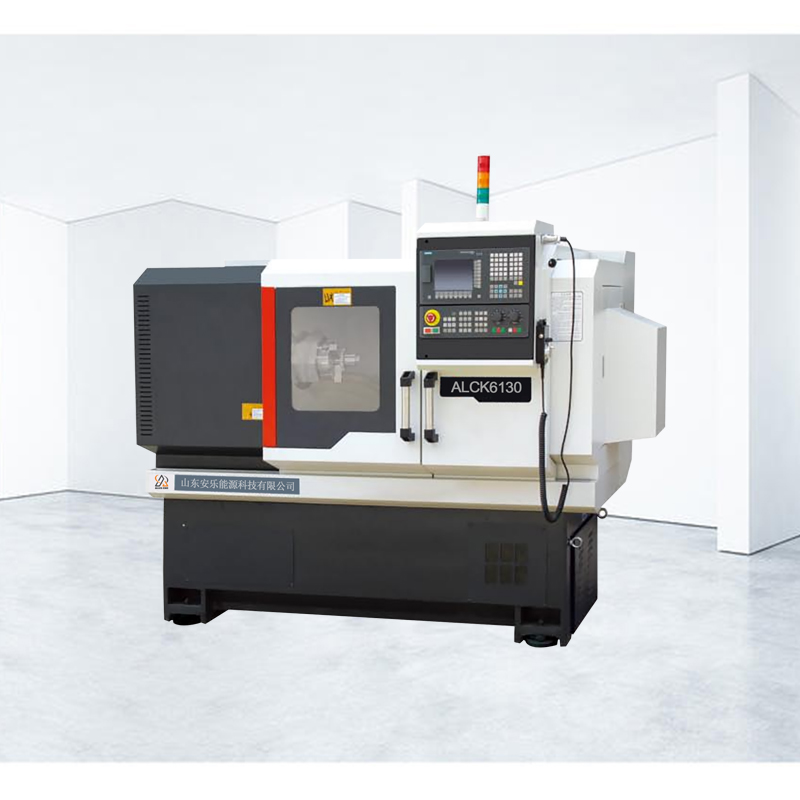

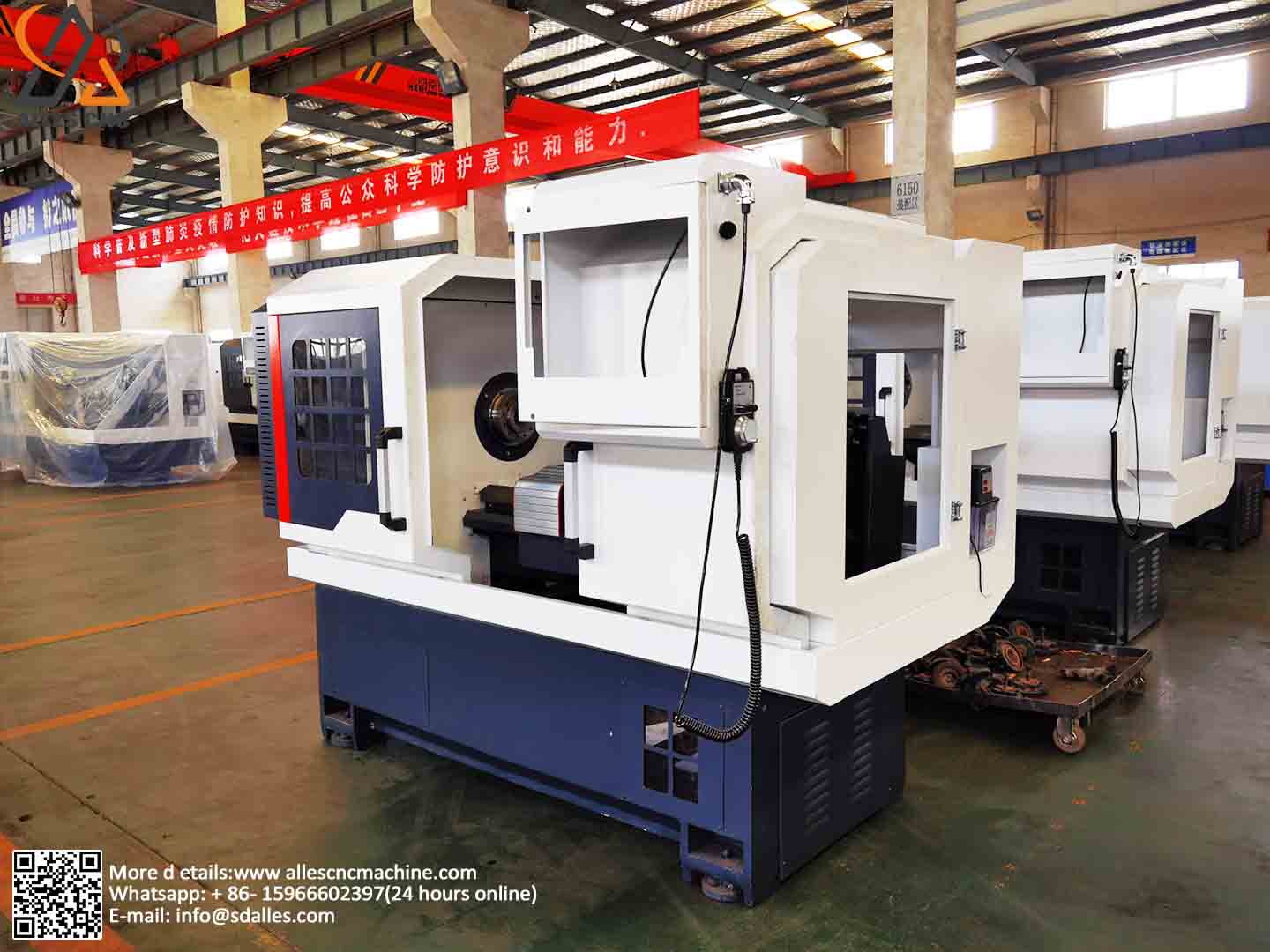

CK6130 horizontal cnc lathe machine for instrumentation industry

CK6130 cnc turning lathe adopts mechatronics design, beautiful appearance, reasonable structure, wide range of uses and convenient operation. This machine tool can realize automatic control and can automatically process the inner and outer circles, end faces, grooves, arbitrary taper surfaces and spherical surfaces of various parts and components.

Product Description

CK6130 horizontal cnc lathe machine for instrumentation industry

product description:

CK6130 is suitable for the processing of electrical appliances, instrumentation industries, automobiles, motorcycle accessories, fastener bearings, photographic equipment, film machinery, hardware, various clocks and watches, glasses, cultural and educational supplies, motors, valves, gas pipe fittings and other high-precision complex parts.

Super low price CNC lathe CK6130
Video:

Product Specifications:

Item	Unit	Parameters
Item	Unit	CK6130
Max swing over bed	mm	Φ300
X-direction rail span	mm	160
Z-direction rail span	mm	240
Maximum swing over slide	mm	Φ100
Center distance	mm	350
Maximum turning length	mm	230
Spindle hole diameter	mm	Φ48
Bar diameter	mm	Φ45
With hollow chuck pull rod through hole	mm	Φ40
Spindle speed limit	rpm	2500
Diameter of tailstock sleeve	mm	Φ52
Tailstock sleeve stroke	mm	80
Electric tool post knife number	Set	4
X/Z direction fast moving speed	m/min	6/10
X stroke	mm	280
Minimum setting unit	mm	0.001
main motor power	KW	4
Total power	KW	10
Machine weight	Kg	1700
Dimensions (length × width × height)	mm	2200×1160×1620

Product advantages:

1. CK6130 horizontal cnc lathe can automatically turn various revolving surfaces, such as cylindrical surface, conical surface, special-shaped surface, etc., and can perform grooving, threading, boring, reaming, drilling, high efficiency, strong applicability, and is very suitable for mass production.

2. The bed guide rail is CNC finely ground after ultrasonic quenching, with high hardness, good rigidity and higher precision. The bed head, guide rail, bed saddle, and pallet are thickened and the strength is increased.

3. The tailstock adopts eccentric wheel self-locking mechanism and thread locking, which is faster and more secure. There is a device to prevent the drill bit from rotating in the tailstock sleeve, which effectively protects the tailstock components.
