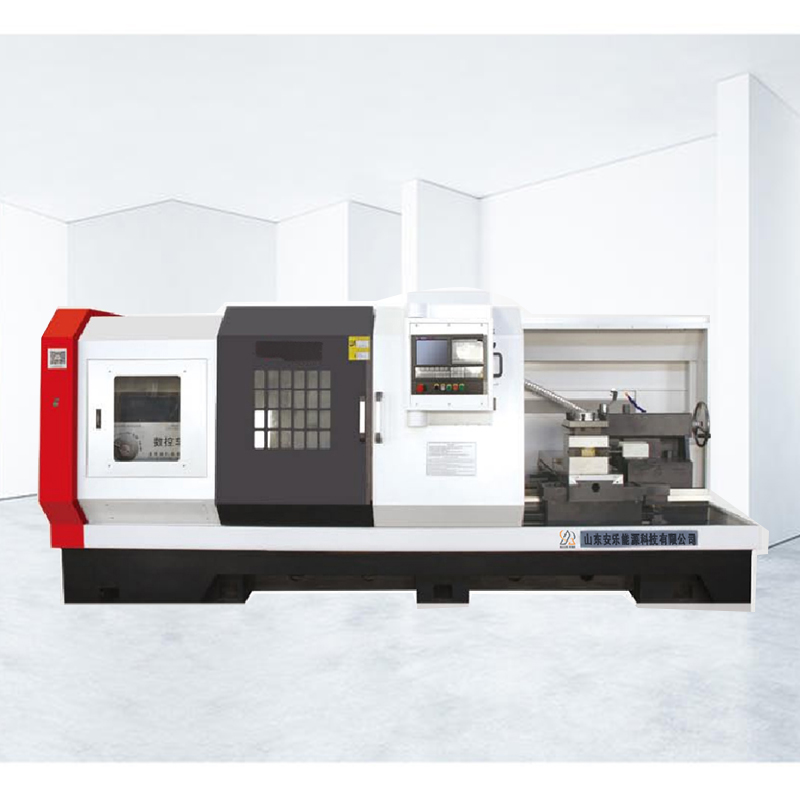

CK6165E CNC Lathe Machine Automatic

CK6165E high precision cnc lathe has high technical content, strong rigidity, stable precision, energy saving and high power. Suitable for powerful or high-speed cutting of large diameter heavy machinery parts, such as large flanges, heavy shafts and pipe fittings, various valves, turbine fittings, etc. CK6165E automatic cnc lathe machine is widely used in wind power, petroleum, chemical, paper, textile, mining, shipbuilding, aviation, rubber, mold, auto parts and processing such as turbine rotors.
CNC Lathe Machine ——CNC Horizontal Lathe Machine
Video:



CNC Lathe Machine ——CNC Horizontal Lathe Machine
Video:

Product Specifications:

Model	Unit	Parameter
		ALCK6165E
Max. swing over bed	mm	Φ650
Max. swing over cross slide	mm	Φ375
Max. processing length	mm	1000
X/Z axis travel	mm	X:400 Z:1100
Spindle speed	rpm	85
Spindle nose		C11
Spindle bore	mm	Φ105
Spindle motor	kW	11
X/Z axis feed motor torque	N.m	X:10 Z:15
X/Z Rapid traverse	m/min	4/5
X/Z axis repeatability	m/min	±0.005
Tailstock sleeve dia.	mm	Φ100
Quill traverse	mm	250
Cutting tool size	mm	32×32
Machine Net Weight	Kg	3900
Machine dimension (L×W×H)	mm	3500×1900×1900

Product advantages:
1. The whole machine is compact in structure, beautiful in appearance, large in main shaft torque, high in rigidity, stable and reliable in performance, and has excellent precision retention.
2. CK6165E automatic cnc lathe machine is suitable for turning disc and shaft parts with complex shapes and high precision requirements.
3. Both the machine tool guide rail and the saddle guide rail are made of hard guide rails made of special materials. After high frequency quenching, they are super hard and wear resistant, durable and have good machining accuracy retention.
4. Adopt high-precision spindle bearing set and the spindle with precise assembly and dynamic balance test to ensure the spindle with high precision, low noise and strong rigidity.

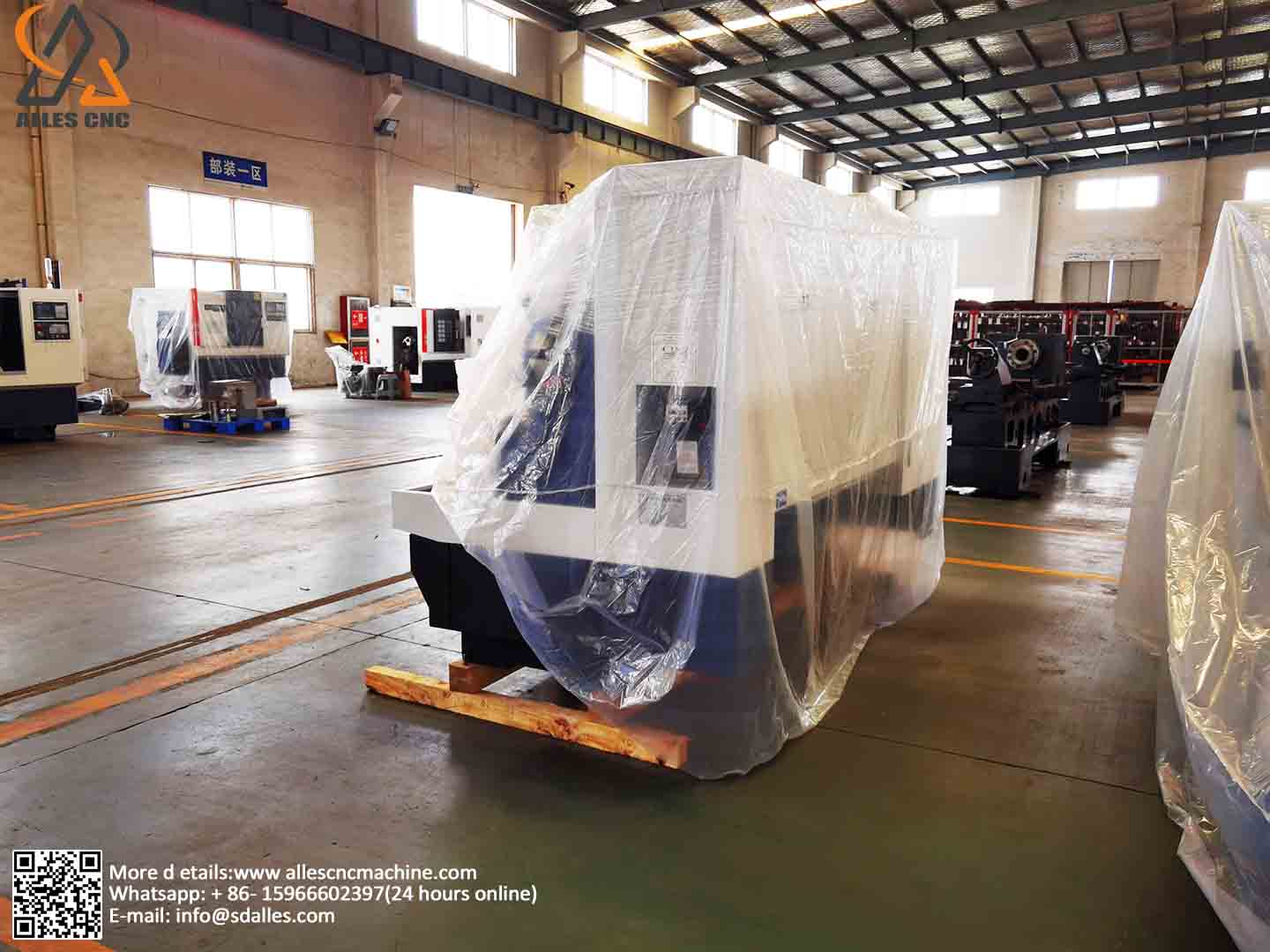

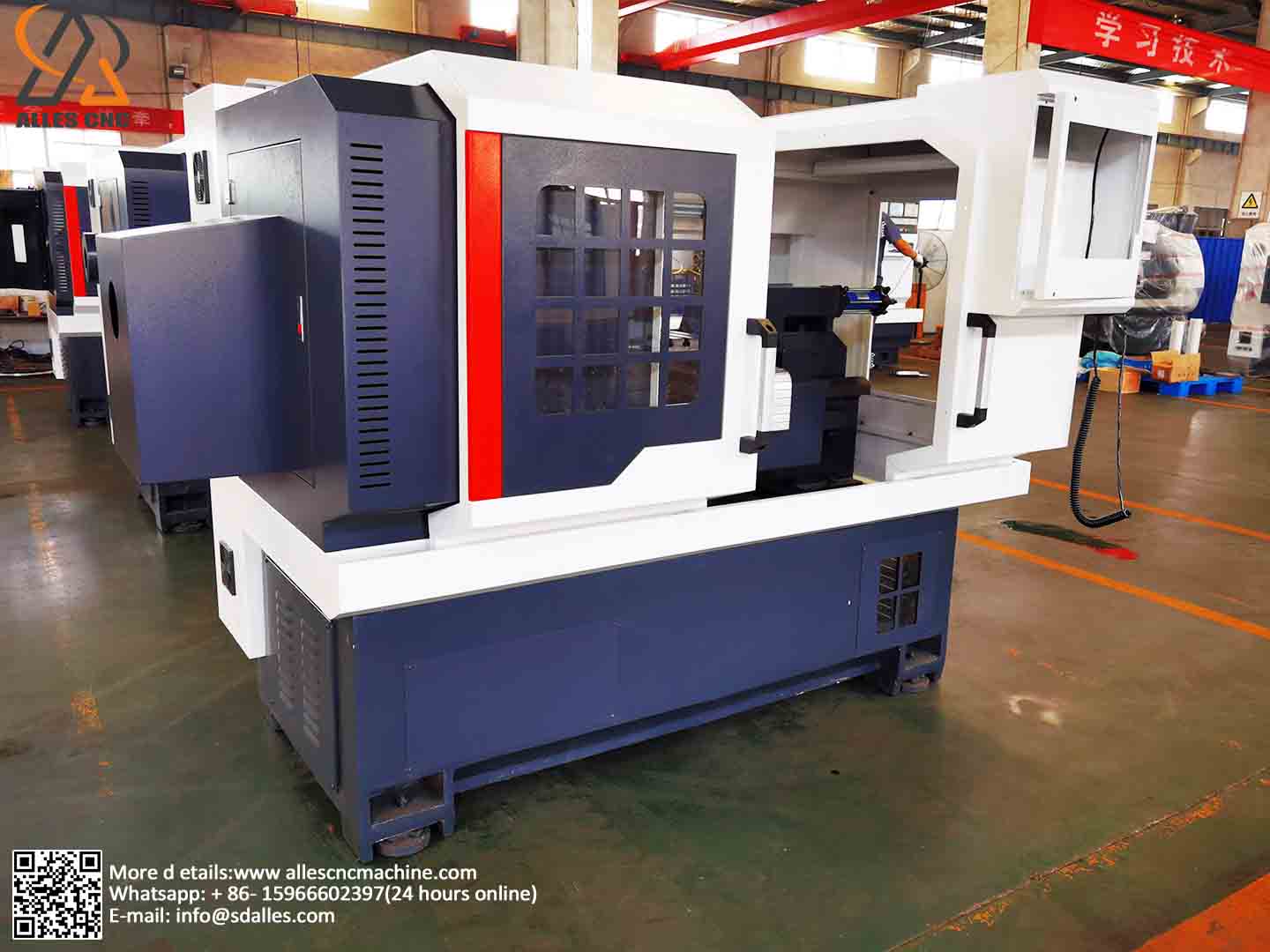

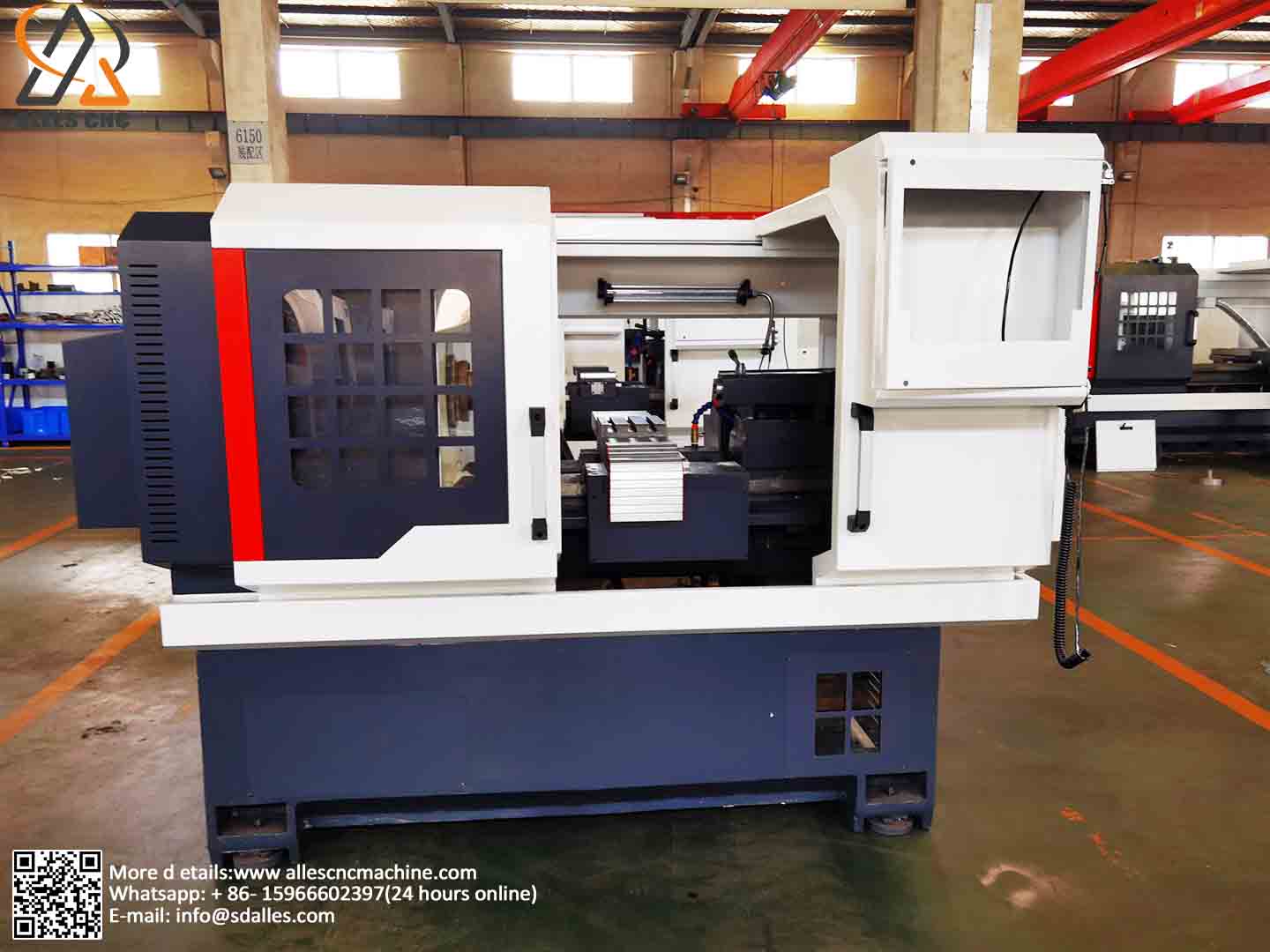

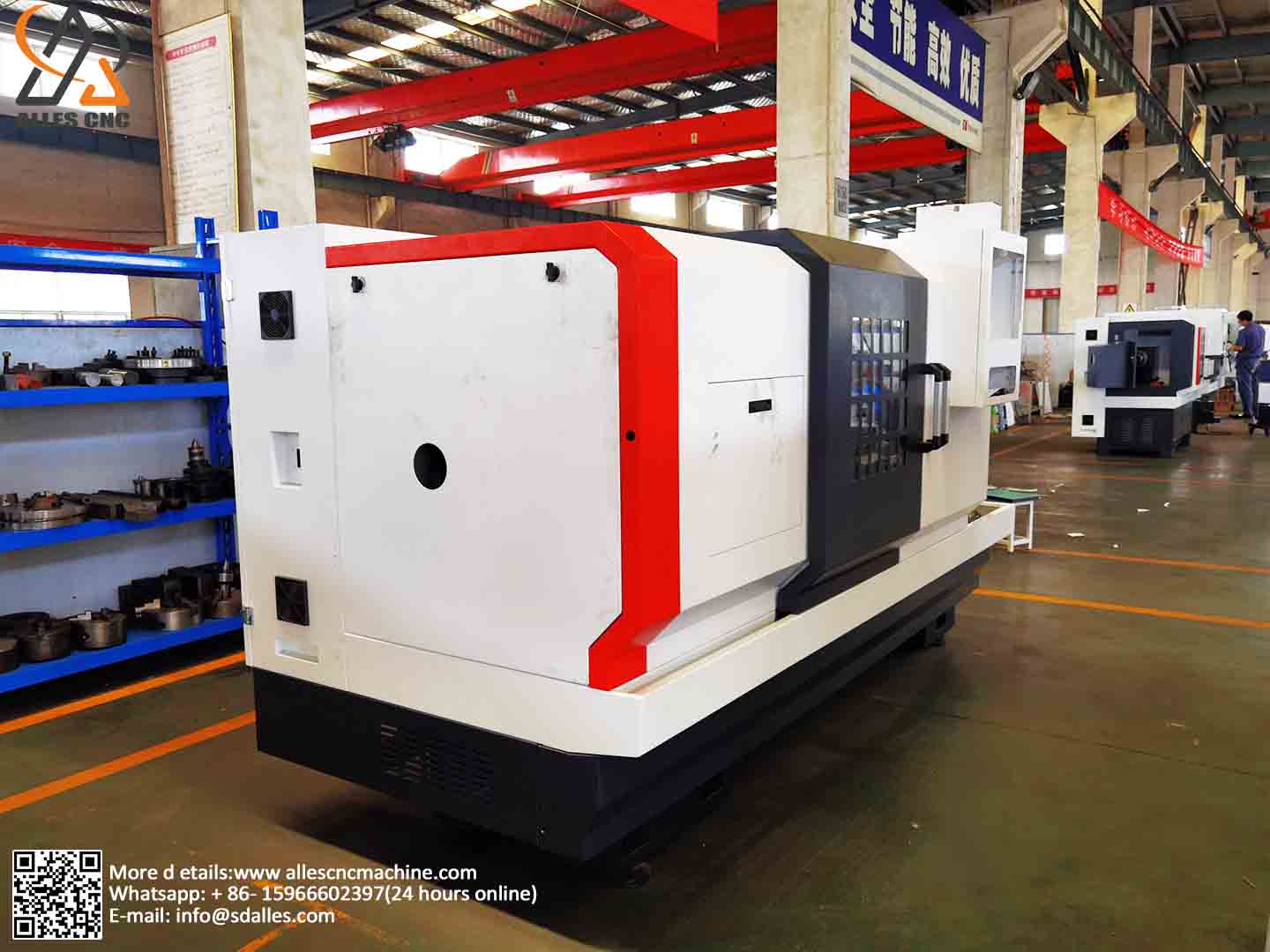

CK6165E CNC Lathe factory
