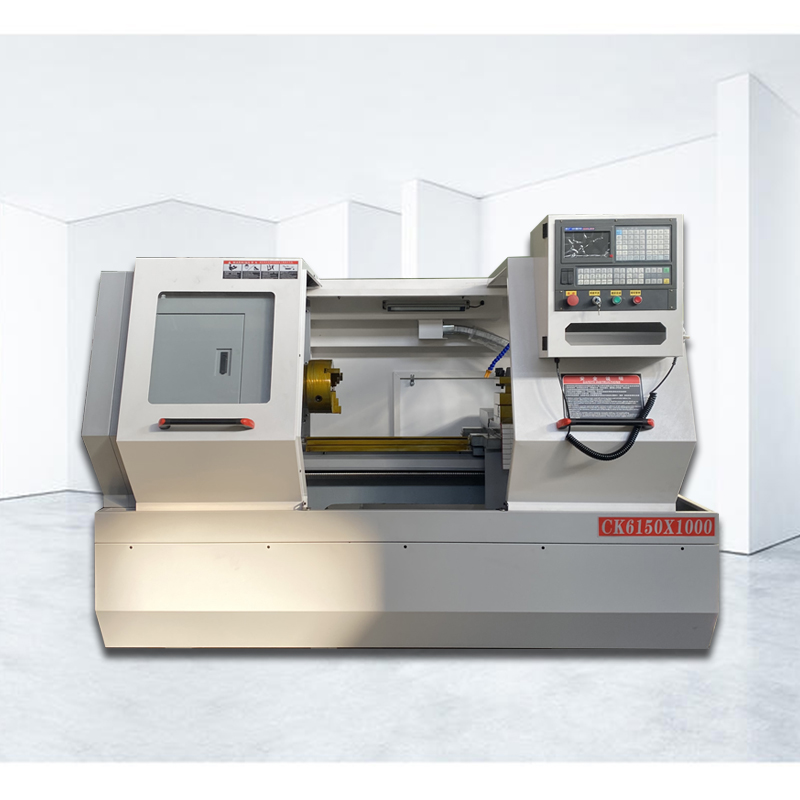

CK6150 Horizontal CNC Flat Bed Lathe Machine

CK6150 horizontal cnc lathe machines is a CNC machine tool with high speed, high precision and high reliability. The main components such as the bed base, bed body, and headstock are all cast with high-strength materials to ensure the long-term stability of the machine tool.

Product Description

CK6150 Horizontal CNC Flat Bed Lathe Machine

product description:

CK6150 high precision cnc lathe tool adopts mechatronics design, beautiful appearance, reasonable structure, wide application and convenient operation. Metric and inch cylinders, tapered threads, etc. And equipped with perfect S.T.M. function, it can send and receive various signals to control the automatic processing process.

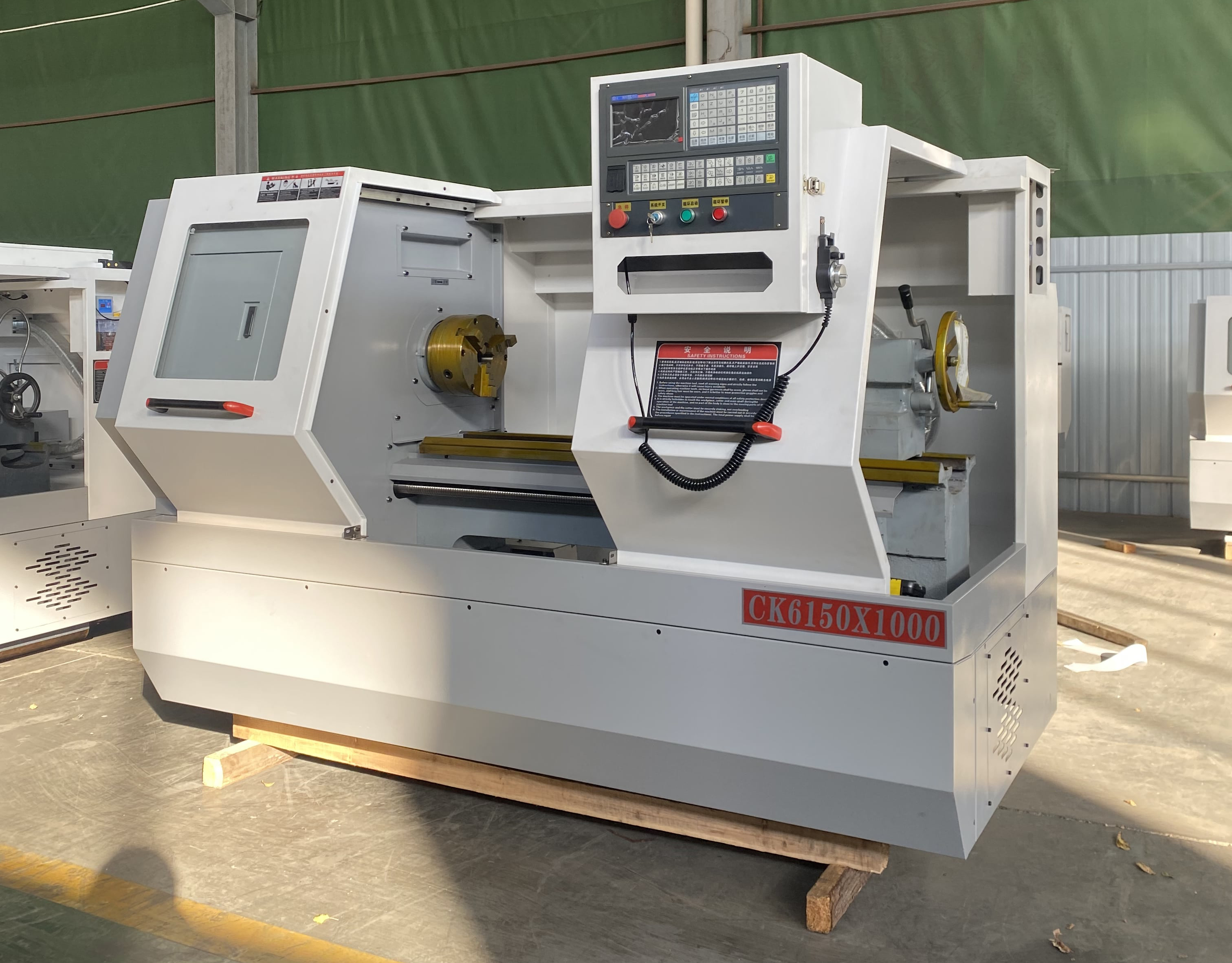

ALCK6150X1000 CNC lathe machine

Video:

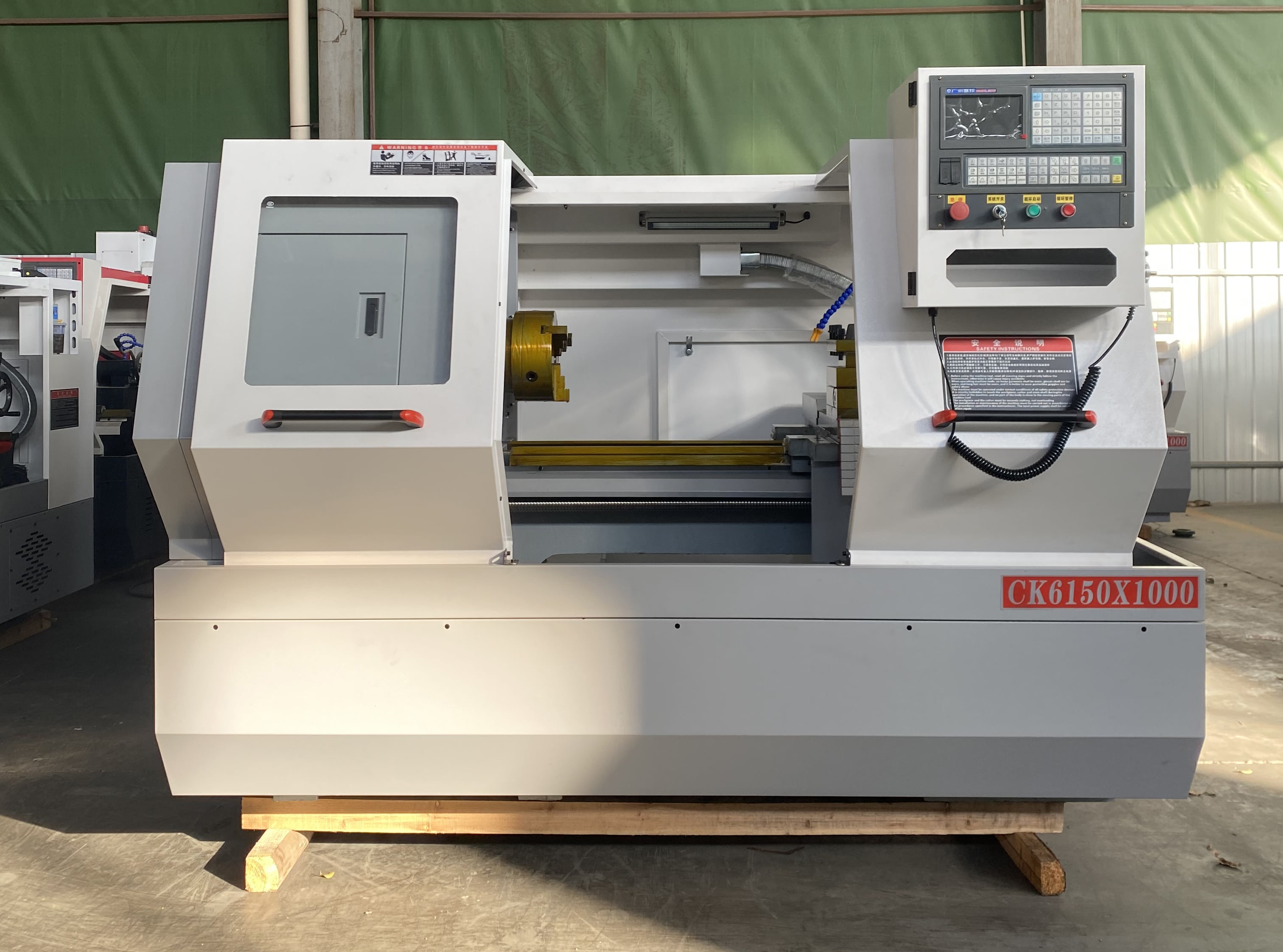

ALCK6150X1000 CNC lathe machine

Video:

Product Specifications:

Item	Unit	Parameter
Item	Unit	ALCK6150*1000
Max swing over bed	mm	Φ500
Maximum swing over slide	mm	Φ290
Maximum cutting diameter	mm	Φ500
Maximum processing length	mm	1000
X/Z axis maximum stroke	mm	300/1000
X/Z axis minimum displacement unit	mm	0.001
Spindle hole diameter	mm	Φ82
Main motor power (frequency conversion)	kW	7.5
Frequency converter	kW	7.5
X/Z axis	N.m	5/7.5
X/Z axis rapid traverse speed	m/min	6/8
Diameter of tailstock sleeve	mm	Φ65
Tailstock sleeve stroke	mm	130
Weight	Kg	2500
Machine size	mm	3030X1600X2050

Product advantages:

1. The optimized design of the headstock of CK6150 CNC lathe is suitable for the turning of disc and shaft parts. It can process straight lines, arcs, metric and inch threads, and multi-start threads. It is suitable for turning discs with complex shapes and high precision requirements. Class, shaft parts processing.

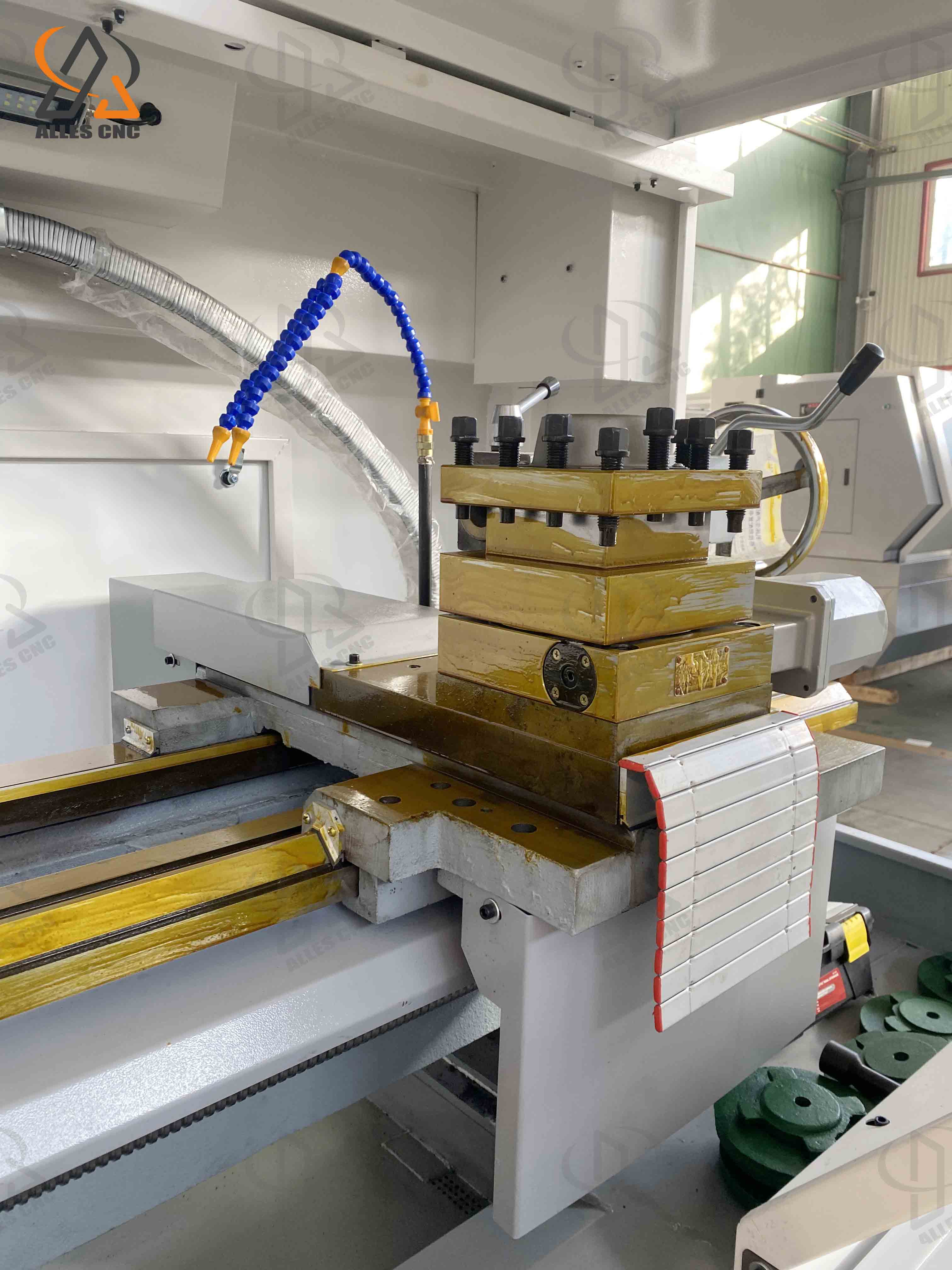

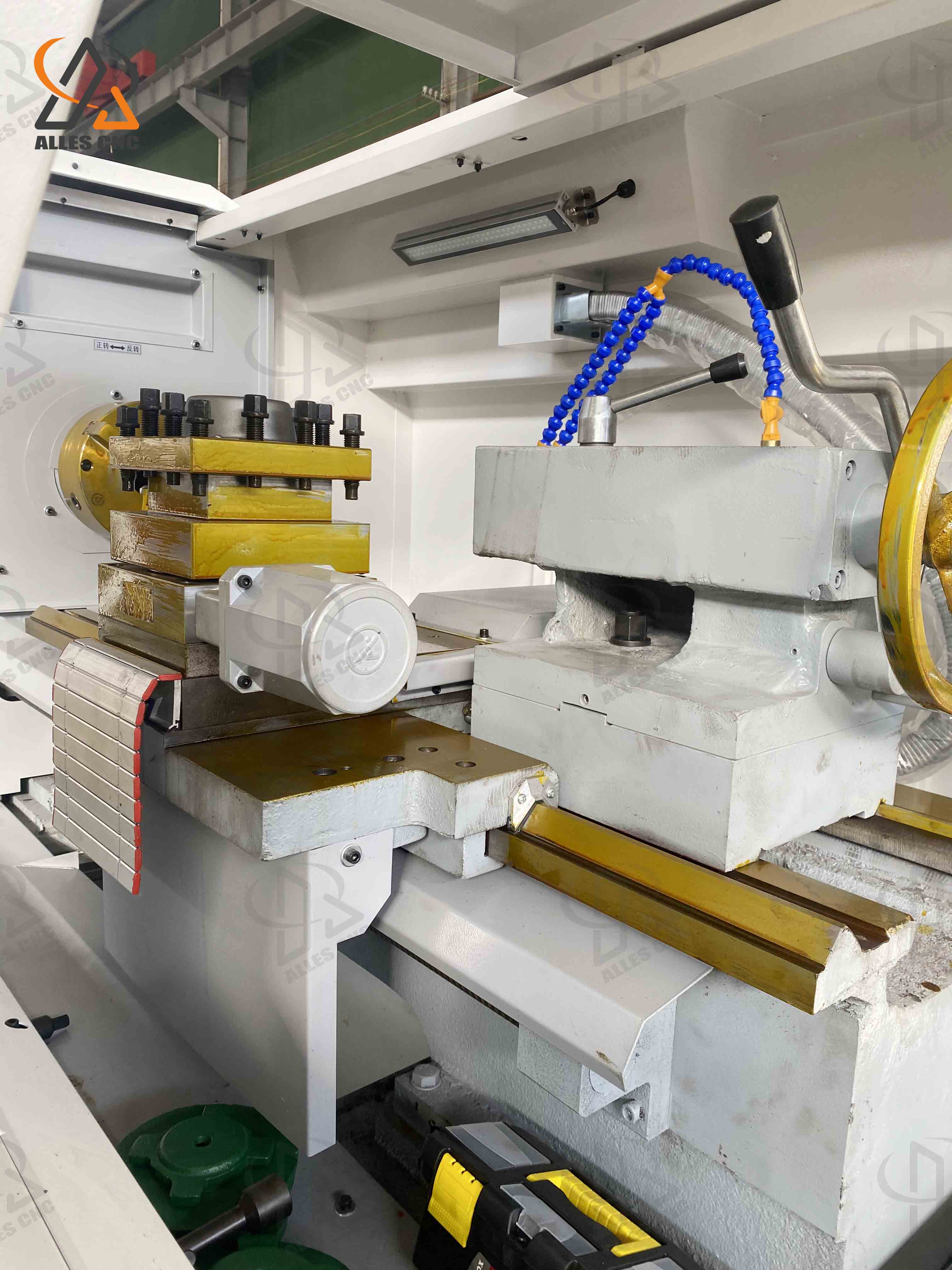

2. CK6150 CNC lathe guide rails and saddle guide rails are made of hard guide rails made of special materials. After high-frequency quenching, they are super-hard and wear-resistant, durable and have good machining accuracy retention.

3. The CNC system of CK6150 CNC lathe adopts the servo drive of the Guangshu system, and adopts the domestic famous ball screw and high-precision screw bearing.

4. The CK6150 CNC lathe adopts a high-precision spindle bearing set and a spindle that has been precisely assembled and tested for dynamic balance. The spindle has high precision, low noise and strong rigidity.
