Item | Unit | Parameter |

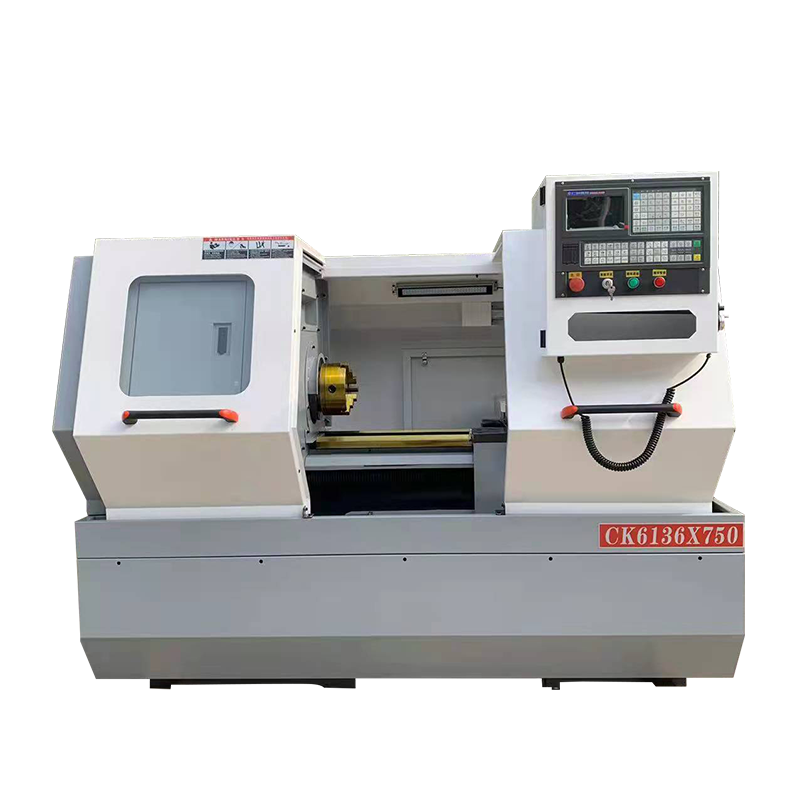

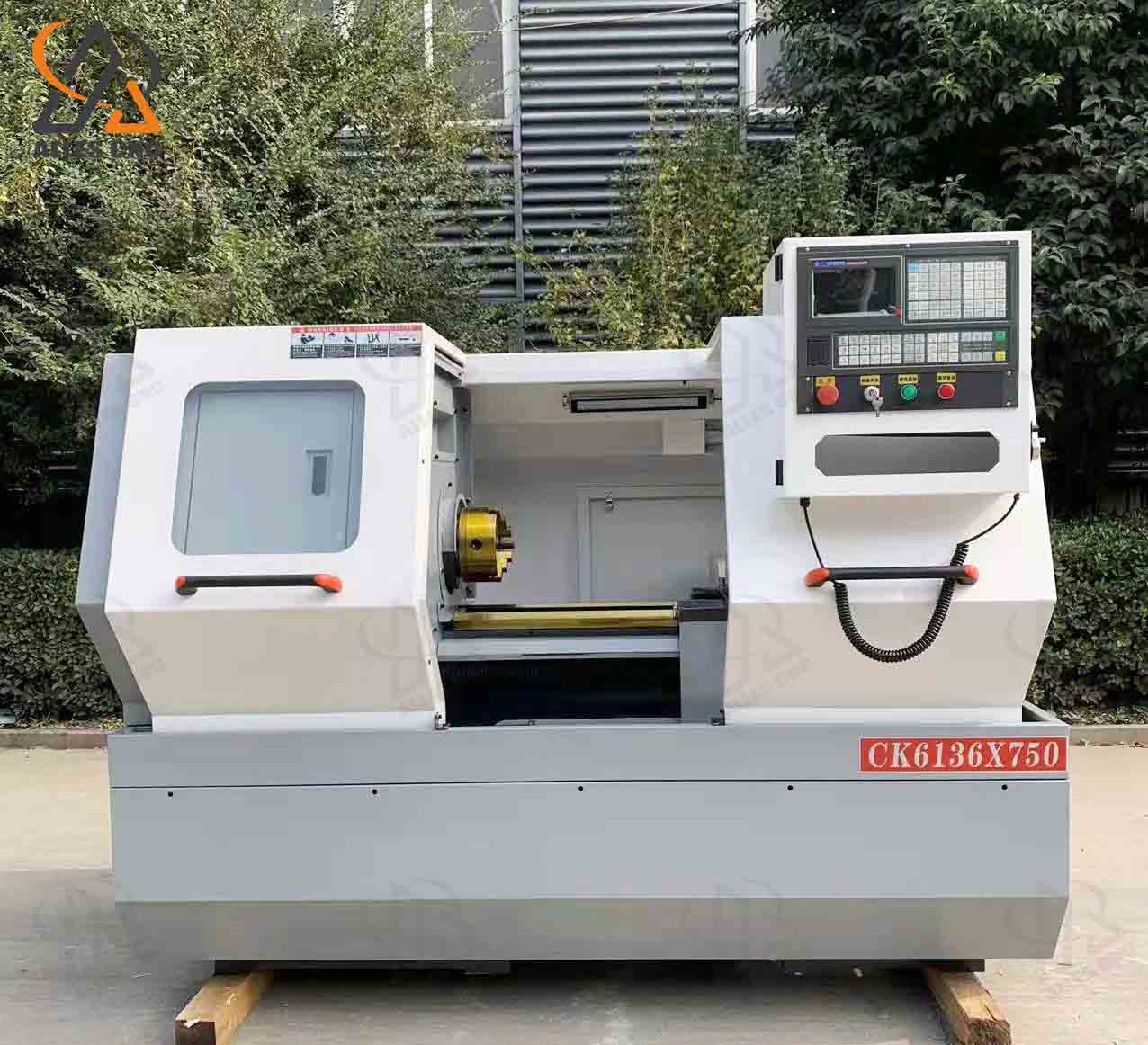

ALCK6136X750 | ||
Max swing over bed | mm | Φ360 |
Maximum turning diameter on the tool post | mm | Φ200 |
Maximum workpiece length between two centers | mm | 750 |
Spindle through hole diameter | mm | Φ52 |
Spindle motor power | kw | 5.5 |
X stroke | mm | 200 |
Z stroke | mm | 750 |
Minimum setting unit | mm | 0.01 |
Tailstock sleeve diameter | mm | 60 |
Tailstock sleeve stroke | mm | 100 |
Cooling motor power | w | 125 |
Cooling water pump head | m | 5 |
Cooling water pump flow | L/min | 25 |
Overall dimensions of machine tool (length×width×height) | mm | 2350mm×1380mm×1640mm |
Net weight | kg | 1600 |
