Item | Unit | Paramerter |

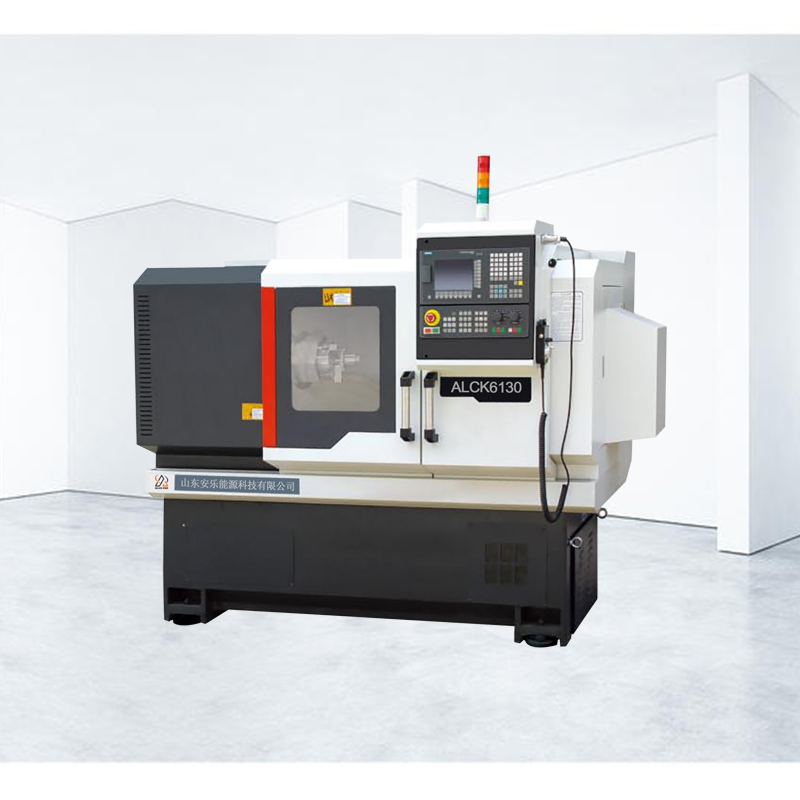

ALCK6130 | ||
Max swing over bed | mm | Φ300 |
X-direction rail span | mm | 160 |
Z-direction rail span | mm | 240 |
Maximum swing over slide | mm | Φ100 |
Center distance | mm | 350 |
Maximum turning length | mm | 230 |
Spindle hole diameter | mm | Φ48 |
Bar diameter | mm | Φ45 |
With hollow chuck pull rod through hole | mm | Φ40 |
Spindle end type | A2-5 | |
Spindle speed limit | rpm | 2500 |
Diameter of tailstock sleeve | mm | Φ52 |
Tailstock sleeve stroke | mm | 80 |
Electric tool post knife number | Set | 4 |
Knife square size | mm | □20×20 (four stations) |
X stroke | mm | 280 |
Minimum setting unit | mm | 0.001 |
main motor power | KW | 4 |
Total power | KW | 10 |
Machine weight | Kg | 1700 |
Dimensions (length × width × height) | mm | 2200×1160×1620 |
