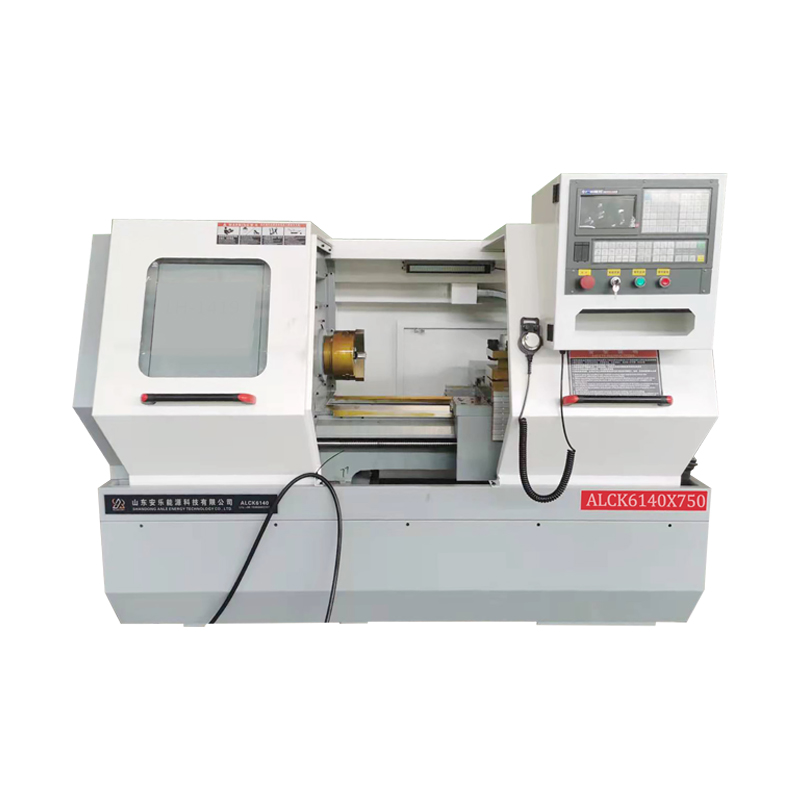

CK6140 automatic cnc lathe machine
CK6140 high precision cnc lathe mainly used for turning inner and outer cylindrical surface, end surface, taper surface, arc surface and thead of shaft, etc., with high efficiency and accurate processing.CNC lathe CK6140 will offer you perfect service by excellent performance, strong rigidity, long-term stability and higher accuracy.
Product Description
CK6140 automatic cnc lathe machine
Product description:
CK6140 series CNC horizontal lathe machine has the features of high precision ,large power,high rigidity and etc.The main parts and structure all passed optimal design . CK6140 cnc lathe attachment is a best choice for turning axle,disk type,sleeve,special plate and screw arbor workpiece .Before the machine leave factory have to pass strict inspection.
ALCK6140x750 CNC Lathe Inspection
Video:
Product Specifications:
| Model | ALCK6140*750 |
| Maximum turning diameter of bed | 400mm |
| Maximum turning diameter on the tool post | 220mm |
| Center distance | 750mm |
| Rail width | 360mm |
| X stroke | 250mm |
| Z-stroke | 900mm |
| Spindle hole diameter | 52mm |
| Spindle speed range (number of stages) | Gear two-speed 50-1600rpm/single axis 2200rpm (optional) |
| Fast moving speed of carriage | X/Z:5/8m/min |
| Repeatability | Z:0.013mm X:0.012mm |
| Diameter of tailstock sleeve | 65mm |
| Maximum stroke of tailstock sleeve | 120mm |
| Servo main motor power | 5.5KW |
| Cooling pump | 125W |
| PACKING(L*W*H) | 2350*1400*1800mm |
| WEIGHT(N.W/G.W) | 1550/1650kg |
ALCK6140x750 CNC Lathe Inspection
Video:
Product advantages:
1. The spindle is a high-rigidity and high-speed structure, driven by a variable frequency motor, which can realize infinitely variable speed and constant linear speed cutting and high-speed cutting;
2. The standard type is equipped with a hydraulic power chuck, and a collet chuck can also be installed according to the user's requirements, which is convenient for clamping workpieces and reliable in work;
3. X-axis, Z-axis and spindle are equipped with semi-closed loop feedback device;
4. The longitudinal lead screw has been pre-tensioned during assembly, with good rigidity, which can offset thermal deformation and improve accuracy.
ALCK6140x750 CNC Lathe Inspection
Video:
