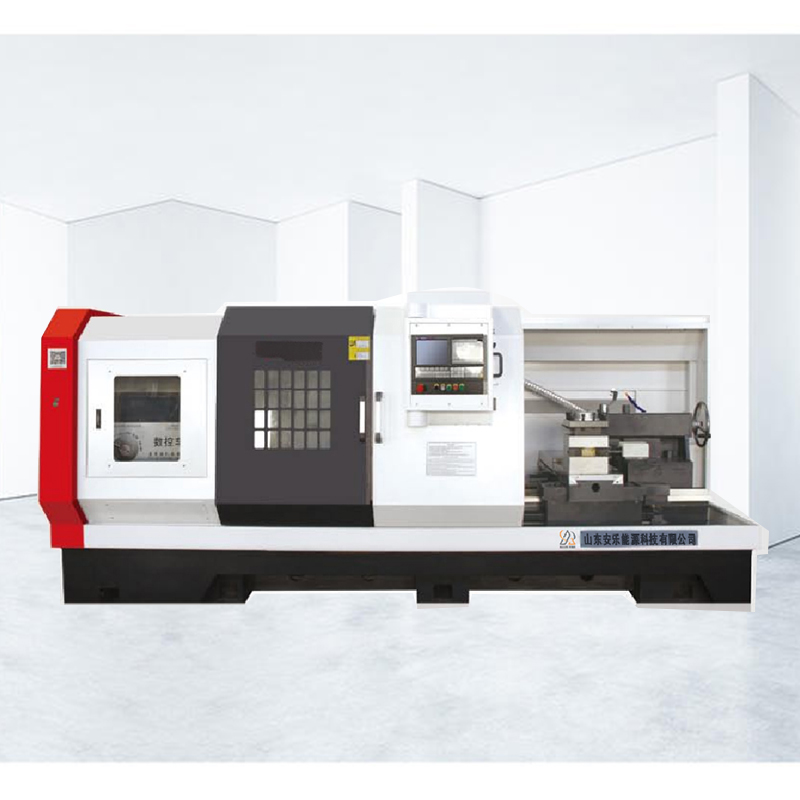

CK61100E cnc lathe machine metal horizontal

CK61100E cnc lathe machine is suitable for processing steel, cast iron, non-ferrous metal materials of large size workpieces. CK61100E cnc lathe machine has the characteristics of high power and high rigidity, and can automatically process inner and outer cylindrical surfaces, conical surfaces, arc surfaces, end surfaces, etc. , can also process single thread and multiple threads, etc.

Product Description

CK61100E cnc lathe machine metal horizontal

Product description:

CK61100E CNC lathe The overall bed CNC lathe is automatically controlled by the numerical control system. It is suitable for the processing of large and medium-sized parts of various steel, cast iron and non-ferrous metals. The machine tool has high power and good rigidity. Rough and finish machining of disc parts, and can undertake drilling and boring processes. It has the advantages of high automation, simple programming and high precision.
Video:

Product Specifications:

Model	Unit	Parameter
Model	Unit	ALCK61100E
Maximum turning diameter of bed	mm	Φ1000
Swing over cross slide	mm	Φ650
Spindle bore	mm	Φ130
Spindle motor	KW	15
X/Z axis feed motor torque	N.m	10/22/30
X/Z Rapid traverse	m/min	4/5
X/Z axis repeatability	mm	±0.005
Tailstock sleeve dia.	mm	Φ140
Quill traverse	mm	250
Cutting tool size	mm	40×40
Max. processing length	mm	1500
X/Z axis travel	mm	X:530 Z:1500
Spindle speed	rpm	10-600
Spindle nose		A2-15
Machine Net Weight	Kg	4800
Machine Size（L×W×H）	mm	4000×2160×2200

Product advantages:

1.The number of tooling is greatly reduced, and complex tooling is not required to process parts with complex shapes.

2.Stable processing quality, high processing precision and high repeatability, which can meet the processing requirements of aircraft.

3.CK61100E cnc lathe and milling machine can process complex profiles that are difficult to process by conventional methods, and even process some unobservable processing parts.
