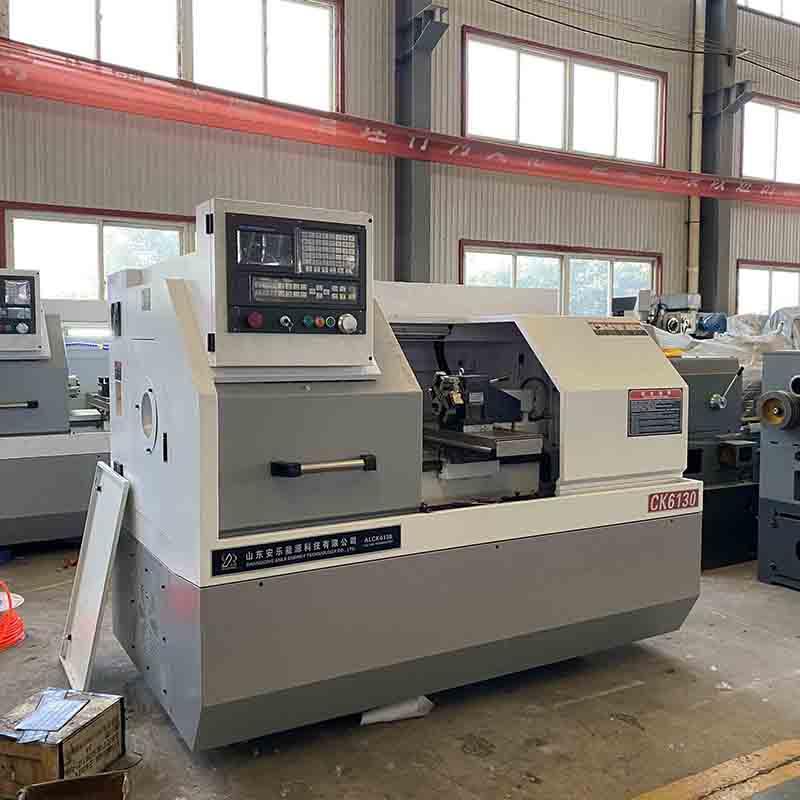

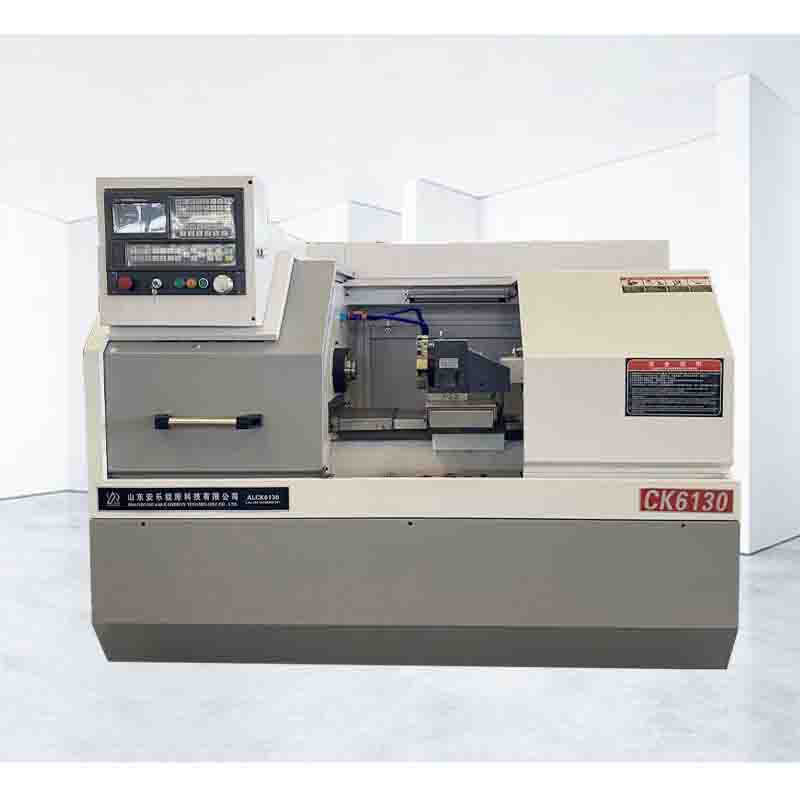

CNC Lathe Flat Bed CK6130 mini metal lathe machine
CNC Lathe Machine Metal HorizontalCK6130 is suitable for machining metal materials of various parts and industries.
Machining is possible from aluminium, brass, mild steel, stainless steel, steel alloys and titanium.
Design considerations included in our Essential Guide to Turning Machine CNC Lathe: Help improve part manufacturability, enhance appearance and reduce overall production time.
Product Description
Features of CNC Lathe Machine Horizontal CK6130
1. High Precision CNC Lathe is suitable for machining workpieces with different structures and shapes.
2. The horizontal lathe machine has high machining accuracy, which can ensure the accuracy of the workpiece. In addition, CNC machining also avoids operator errors, which can largely protect the personal safety of workers. And the dimensions of the parts processed in the same batch have good dimensional consistency, which greatly improves the product quality.
3. The cnc flat bed lathe greatly improves the production efficiency and reduces the workpiece clamping error.
4. The CNC Horizontal Lathe is processed according to the programmed processing program, which can greatly reduce the labor intensity of the operator, without repeated manual operations.
Video
Main application industries of Automatic CNC Lathe
1. Application of CNC Lathe Flat Bed in the automotive industry
Whether for civilian or military vehicles, CNC Machining Applications offers CNC Horizontal Lathe service parts in a variety of sizes and specifications, providing quick solutions to meet the huge demands of the automotive industry and other vehicles.
CNC auto parts such as throttle control shaft, low-pass filter shaft, hydraulic valve, valve housing, sensor housing, temperature sensor housing, pressure sensor housing, pipe joint, sensor metal housing can all be processed.
2. Application of CNC Lathe Turning in the electronics industry
Our range of major CNC electronic parts includes: Headphone Housings, Aluminum Tubes/Tubes for Tattoos and Vaping, Nozzles for Shisha, Contact Pins, Conductive Pins, Pivot Pins, Probes, Bushings, Test Tools and many other CNC electronics Accessories.
Video
| Item | Unit | CK6130 |
|---|---|---|
|
Max swing over bed
|
mm |
Φ300
|
| Maximum swing over slide | mm | Φ130 |
| Spindle hole diameter | mm | Φ48 |
| With hollow chuck pull rod through hole | mm | Φ40 |
| Spindle speed limit | rpm | 2200 |
|
Knife square size
|
mm | 20×20 (four stations) |
| Clamping device | Collet/160 three-jaw chunk | |
| X/Z direction fast moving speed | m/min | 6/8 |
| X stroke | mm |
280
|
| Z stroke | mm | 500 |
| Main motor power | KW | 3 |
| X axis repeat positioning accuracy | mm | 0.01 |
| Z axis repeat positioning accuracy | mm |
0.01
|
| Machine weight | KG | 950 |
| Dimensions (length × width × height) | mm | 1600×1100×1650mm |
