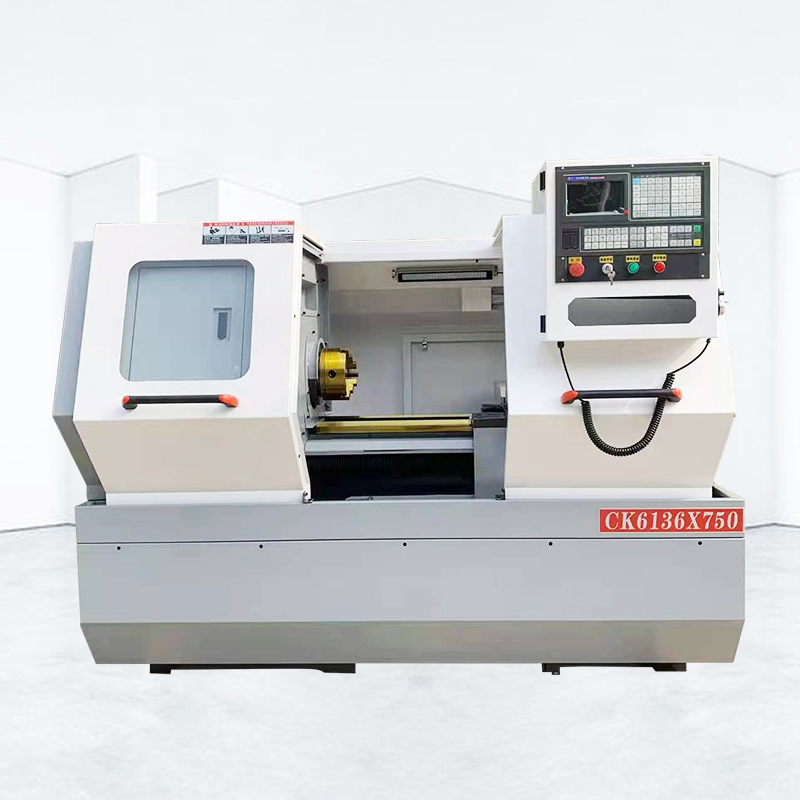

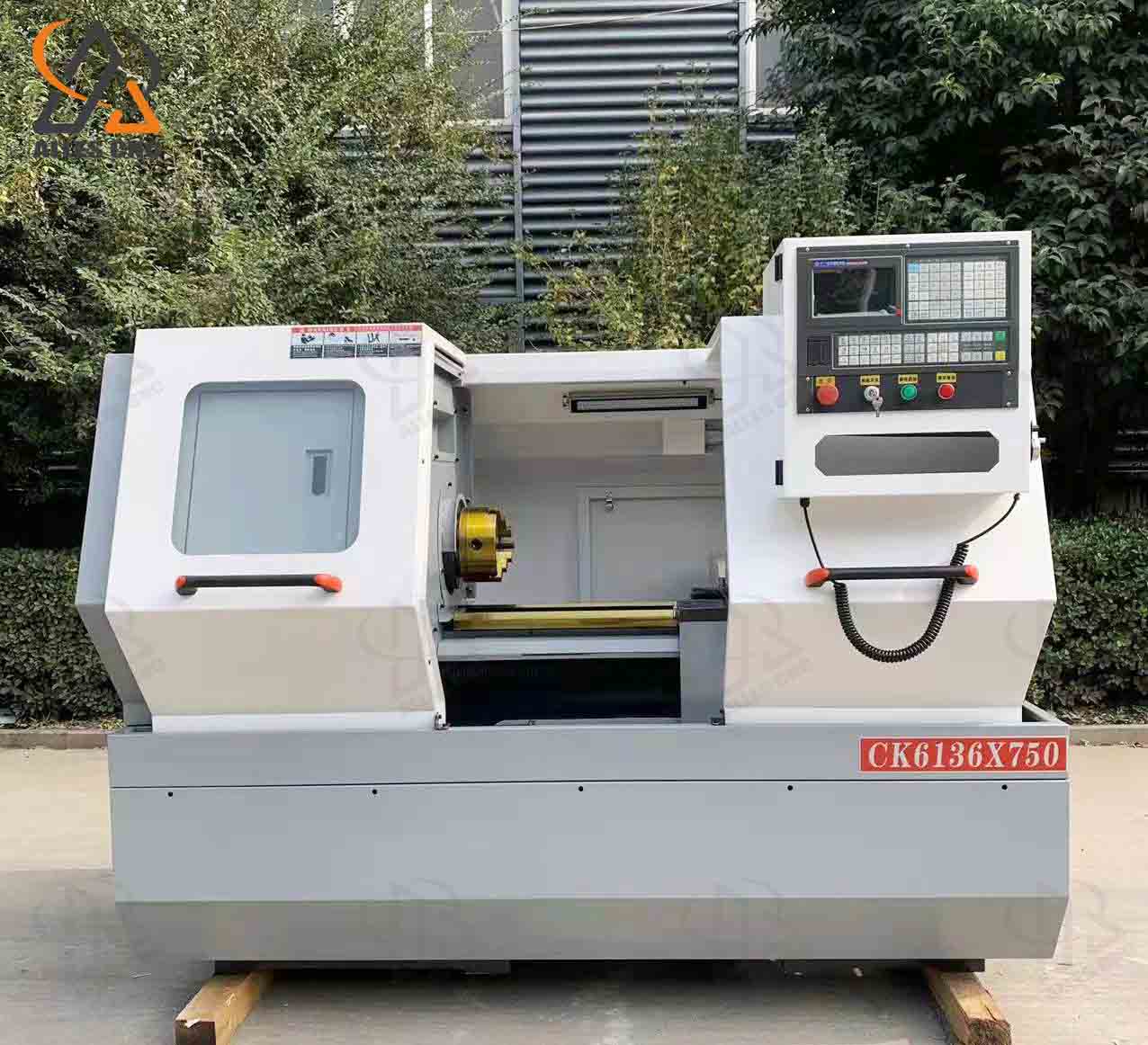

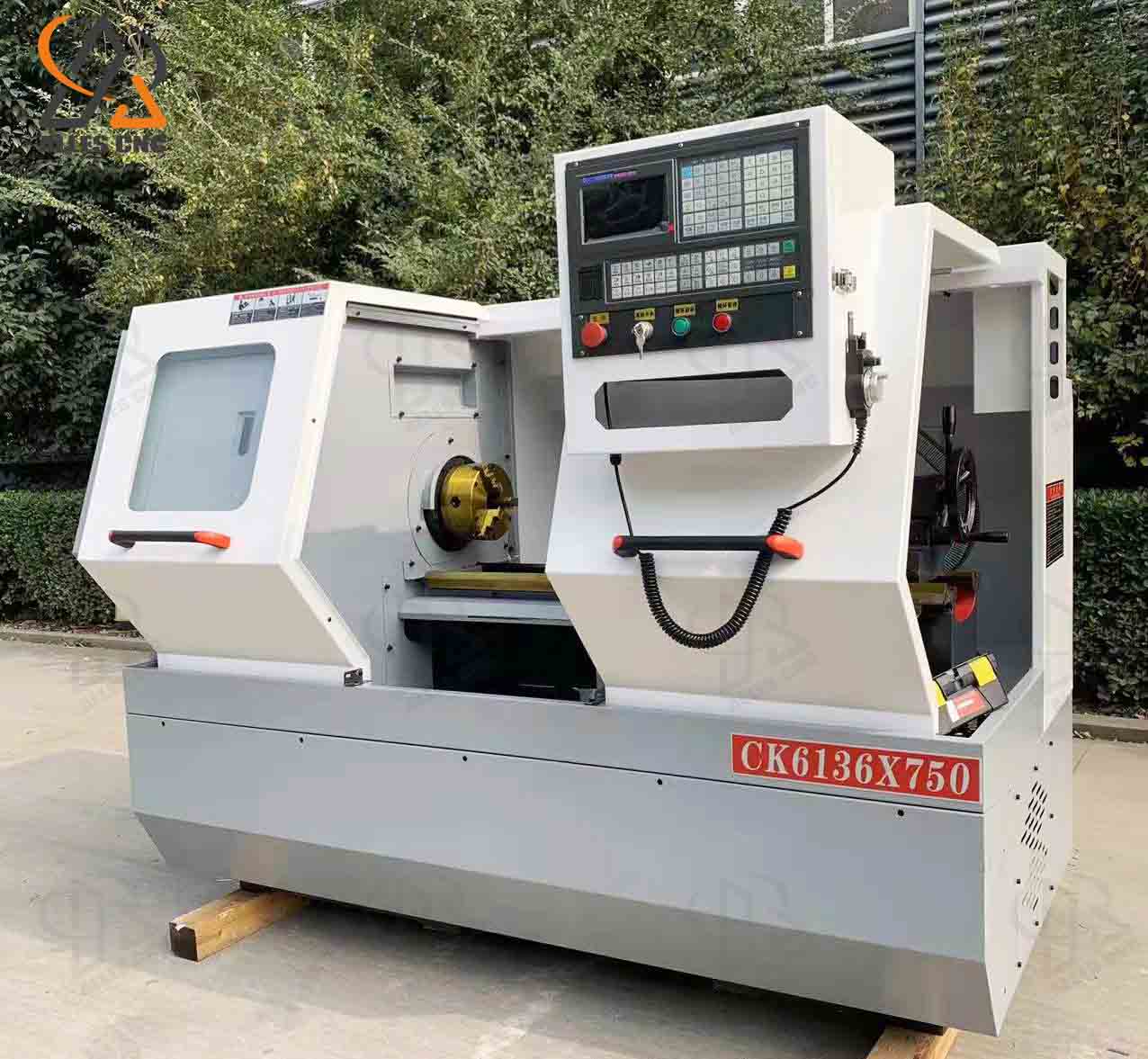

CK6136 flat bed cnc lathe machine

CK6136 flat bed cnc lathe machine

Product description:

The CNC lathe CK6136 adopts the overall bed foot structure, CK6136 mini metal lathe machine can be used for rough and finish machining of mechanical parts,CK6136 cnc lathe machine is also suitable for turning of the inner and outer cylindrical surfaces, conical surfaces, threads, drilling, reaming and curved revolving bodies of small and medium-sized shaft and disc parts.
Video:


Product Specifications:

Item	Unit	Parameter
		ALCK6136X750
Max swing over bed	mm	Φ360
Maximum turning diameter on the tool post	mm	Φ200
Maximum workpiece length between two centers	mm	750
Spindle through hole diameter	mm	Φ52
Spindle motor power	kw	5.5
Tool handle size	mm	20×20
X stroke	mm	200
Z stroke	mm	750
Minimum setting unit	mm	0.01
Tailstock sleeve diameter	mm	60
Tailstock sleeve stroke	mm	100
Cooling motor power	w	125
Cooling water pump head	m	5
Cooling water pump flow	L/min	25
Overall dimensions of machine tool (length×width×height)	mm	2350×1380×1640
Net weight	kg	1600

Product advantages:

1. The machine tool has high precision, low noise, high precision and good stability.

2. The bed guide rail is finely ground after ultrasonic quenching, with high hardness and good rigidity.

3. The electric four-position tool rest adopts precise step plate positioning, and the repeat positioning accuracy is high.

4. The tool holder adopts end toothed disc for precise positioning, with high repeat positioning accuracy and good rigidity.
