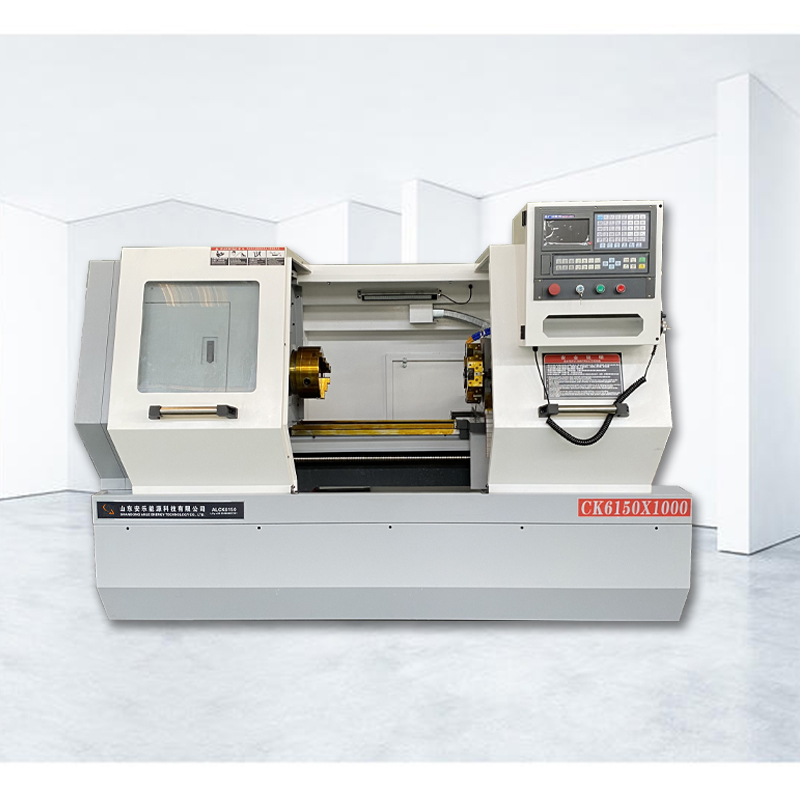

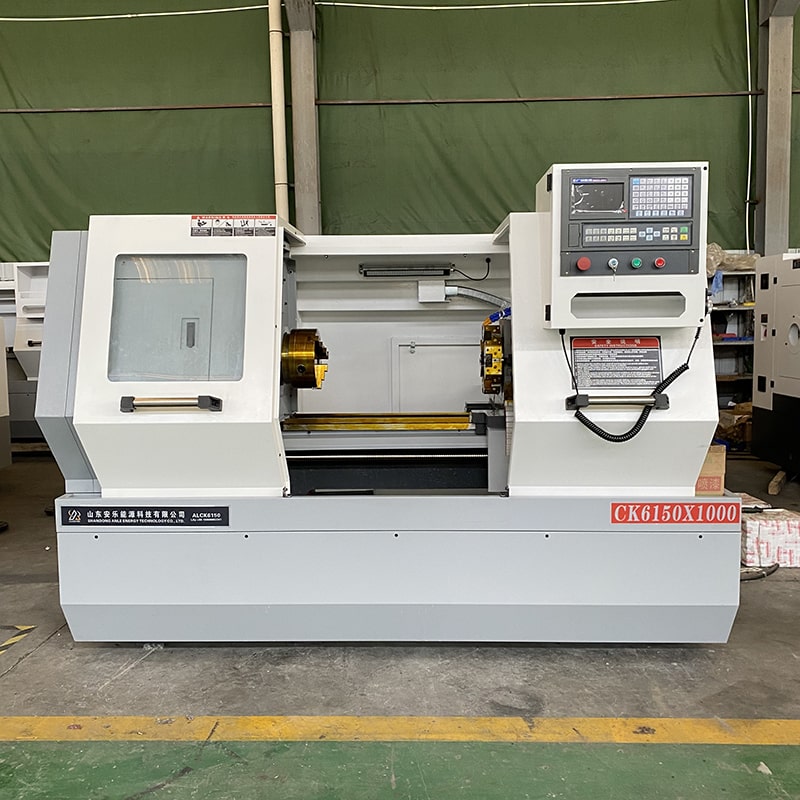

Automatic CNC Lathe ALCK6150X1000 CNC Horizontal Lathe

CNC Lathe Flat Bed is mainly used for inner and outer cylindrical surfaces of shaft parts or disc parts, inner and outer conical surfaces of arbitrary taper angles, complex revolving inner and outer surfaces, cylinders, conical threads, etc.

Product Description

Product Features：

1. The metal lathe has high processing precision and stable processing quality.

2. The horizontal lathe machine can process parts with complex shapes;

3. Heavy Duty CNC Lathe Machine has high automation and high productivity, which can save processing time and reduce labor intensity.

Video

Maintenance of Turning Machine CNC Lathe:

1. CNC Lathe Machine Horizontal strictly abides by the operating procedures and daily maintenance system.

2. CNC Lathe Machine Metal prevents the ash layer from entering the CNC. The floating ash layer and metal powder will easily cause the insulation resistance of the components to drop, resulting in failure or even damage to the components.

3. CNC Lathe Machine Metal Horizontal regularly cleans the cooling and ventilation system of the data cabinet.

4. The high precision cnc lathe regularly replaces the memory battery.

5. The CNC system of the flat bed cnc lathe machine has been idle for a long time for maintenance, and the system is often powered on or the CNC machine tool is used to run the warm-up program.

6. Maintenance of cnc lathe fanuc spare circuit board and maintenance of mechanical parts.

Video

Technical Parameters

Item	Unit	*ALCK61501000**
Max swing over bed	mm	Φ500
Maximum swing over slide	mm	Φ290
Maximum cutting diameter	mm	Φ500
Maximum processing length	mm	1000
X/Z axis maximum stroke	mm	300/1000
X/Z axis minimum displacement unit	mm	0.001
Spindle hole diameter	mm	Φ82
Spindle speed limit	rpm	150-2000/60-1600
Weight	Kg	2500
Machine size	mm	303016002050
