Item | Unit | Parameter |

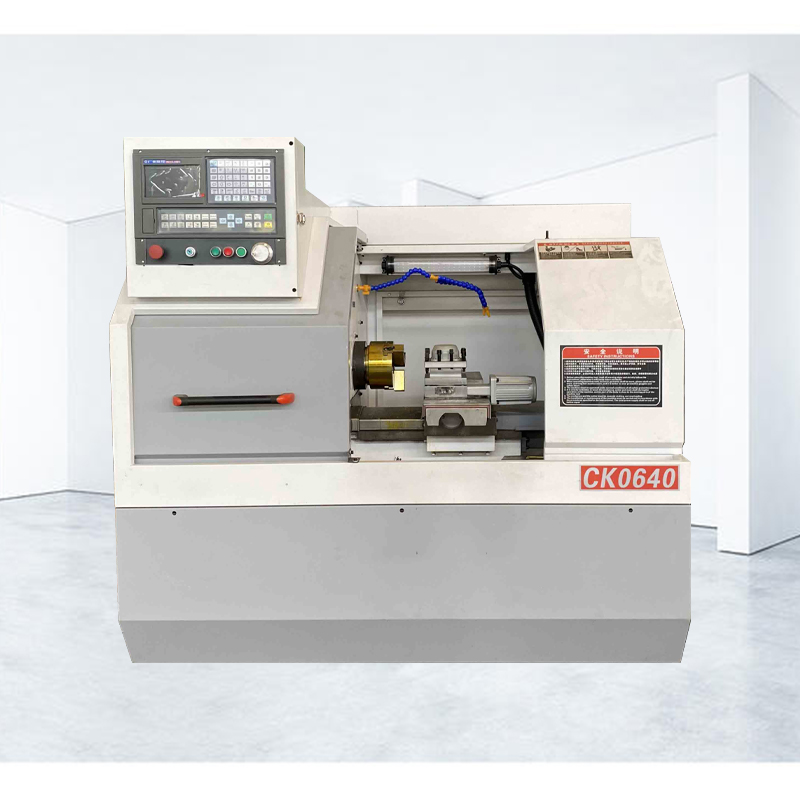

ALCK0640 | ||
Max swing over bed | mm | Φ250 |
Maximum swing over slide | mm | Φ120 |
Spindle hole diameter | mm | Φ48 |

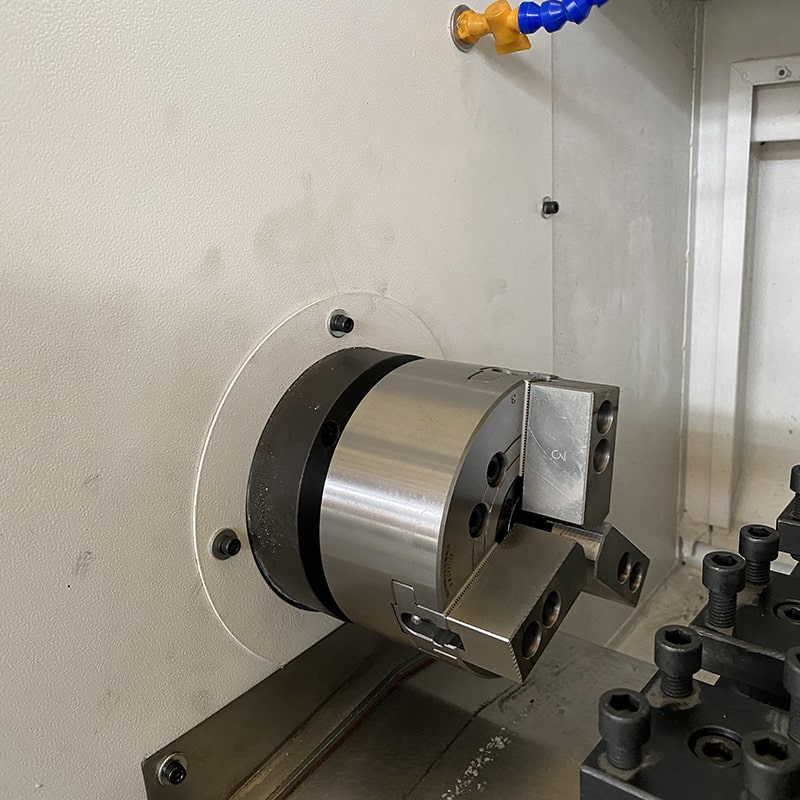

With hollow chuck pull rod through hole | mm | Φ40 |
Spindle speed limit | rpm | 3000 |
Knife square size | mm | □20×20 (four stations) |
X/Z direction fast moving speed | m/min | 6/8 |
X stroke | mm | 200(Optional 300/400mm) |
Z stroke | mm | 220 |
Main motor power | KW | 3(Optional 4kw) |
X axis repeat positioning accuracy | mm | 0.01 |
Z axis repeat positioning accuracy | mm | 0.01 |
Machine weight | Kg | 800 |
Dimensions (length × width × height) | mm | 1620×1340×1680mm |
